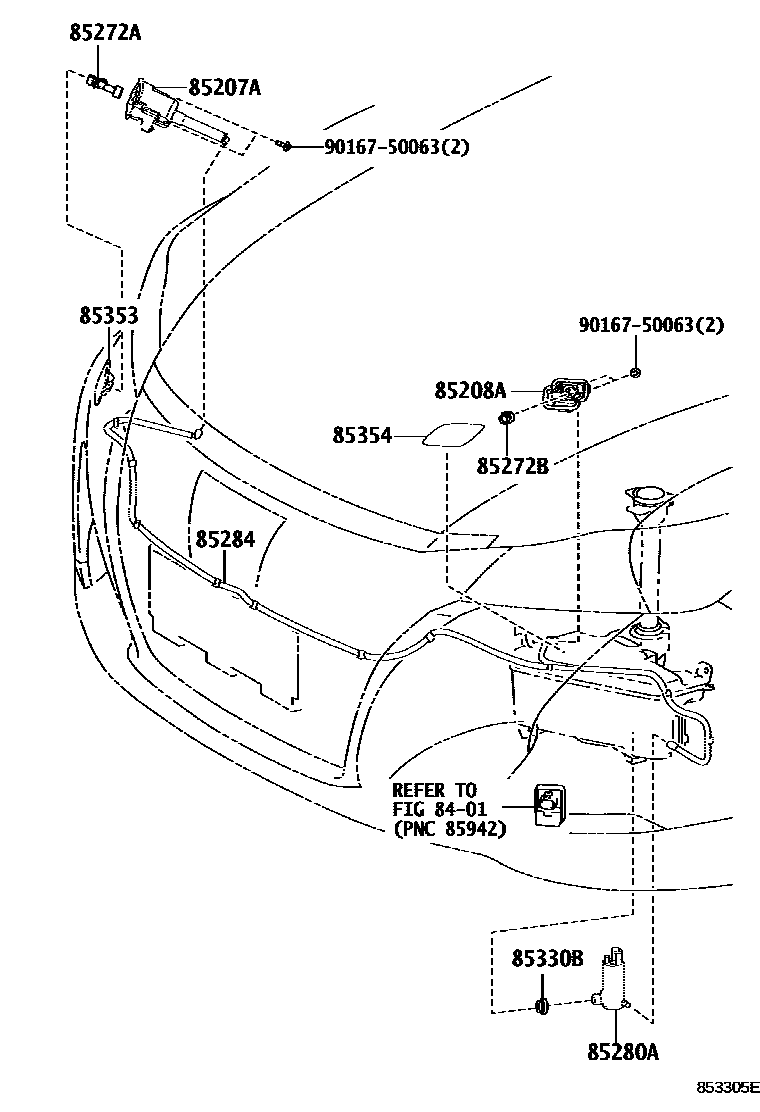

HEADLAMP CLEANER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-0N050iARS212,GRS218201501-201712

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-0N050iARS212,GRS218201501-201712

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-0N010iARS212,GRS218201501-201712

85272BCLAMP, HEADLAMP CLEANER, NO.2

main85273-0N010iARS212,GRS218201501-201712

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-05050iARS212201712

85284HOSE ASSY, HEADLAMP CLEANER WASHER

main85270-0N010iARS212..B201712-201910

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90069-20005iARS212201712

85353COVER, HEADLAMP WASHER, RH

main85353-0N020-A0iARS212..P,Q,S,U201712

WHITE PEARL CS.,062

main85353-0N020-B0iARS212..B201712-201910

SILVER ME.,1F7

main85353-0N020-B1iARS212,GRS218201501-201610

GRAY M.M.,1H1,RH

main85353-0N020-C0iARS212..B201712-201910

BLACK,202

main85353-0N020-D0iARS212,GRS218201501-201712

DK. RED M.M.,3Q3,RH

main85353-0N020-D1iARS212..P,Q,S,U201712

BLACKISH RED MC.,3R0

main85353-0N020-E1iARS212,GRS218201508-201712

DK.BROWN M.M.,4X5,RH

main85353-0N020-J0iARS212..B201712-201910

DK. BLUE MC.,8X8

main85353-0N020-J1iARS212,GRS218201610-201709

BLUE ME.,8T7,RH

85354COVER, HEADLAMP WASHER, LH

main85354-0N020-A0iARS212..B201712-201910

WHITE PEARL CS.,062

main85354-0N020-B0iARS212..B201712-201910

SILVER ME.,1F7

main85354-0N020-B1iARS212,GRS218201501-201610

GRAY M.M.,1H1,LH

main85354-0N020-C0iARS212..P,Q,S,U201712

BLACK,202

main85354-0N020-D0iARS212,GRS218201501-201712

DK. RED M.M.,3Q3,LH

main85354-0N020-D1iARS212..B201712-201910

BLACKISH RED MC.,3R0

main85354-0N020-E1iARS212,GRS218201508-201712

DK.BROWN M.M.,4X5,LH

main85354-0N020-J0iARS212..B201712-201910

DK. BLUE MC.,8X8

main85354-0N020-J1iARS212,GRS218201610-201709

BLUE ME.,8T7,LH

9016750063

main90167-50063

11 parts on this diagram · 1 diagram in section
