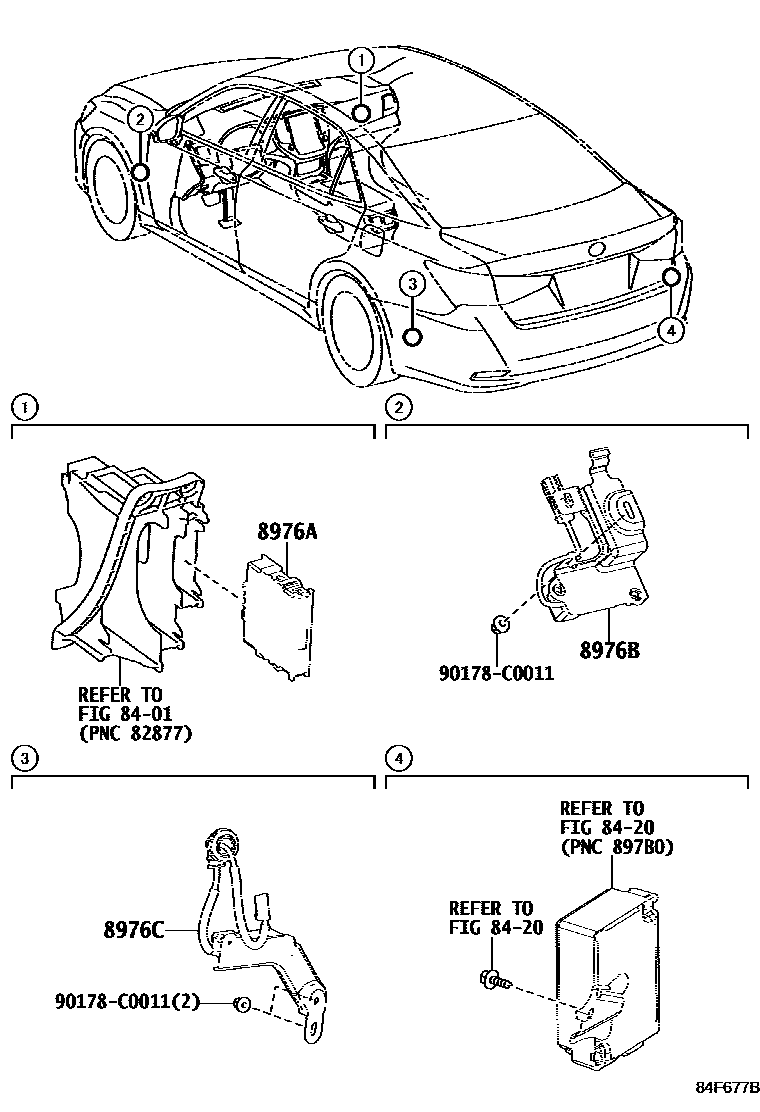

TIRE PRESSURE WARNING SYSTEM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-33010iGRS218..Q,S,U201501-201505

main8976A-33030iARS212,GRS218..Q,S,U201506-201712

main8976A-33032iARS212..P,Q,S,U201812

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-30010iARS212,GRS218..Q,S,U201501-201609

main8976B-30011iARS212,GRS218..Q,S,U201610-201712

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-30020iARS212,GRS218..Q,S,U201501-201609

main8976C-30021iARS212,GRS218..Q,S,U201610-201712

90178C0011

main90178-C0011

6 parts on this diagram · 1 diagram in section
