AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0N050iARS212,GRS218..B201501-201712

main89170-0N060iARS212..P,Q,S201712

main89170-0N070iARS212..U201712

89173ASENSOR, AIRBAG, FRONT RH

main89173-09B70iARS212,GRS218201501-201712

89174ASENSOR, AIRBAG, FRONT LH

main89173-09B70iARS212,GRS218201501-201712

8917ASENSOR, PEDESTRIAN PROTECTION

main8917A-30060×2iARS212,GRS218201501-201712

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0N010iARS212,GRS218201501-201712

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0N010iARS212,GRS218201501-201712

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-0N020iARS212,GRS218201501-201712

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-0N020iARS212,GRS218201501-201712

90105C0003

main90105-C0003

90105C0141

main90105-C0141

90119C0029

main90119-C0029

90178C0034

main90178-C0034

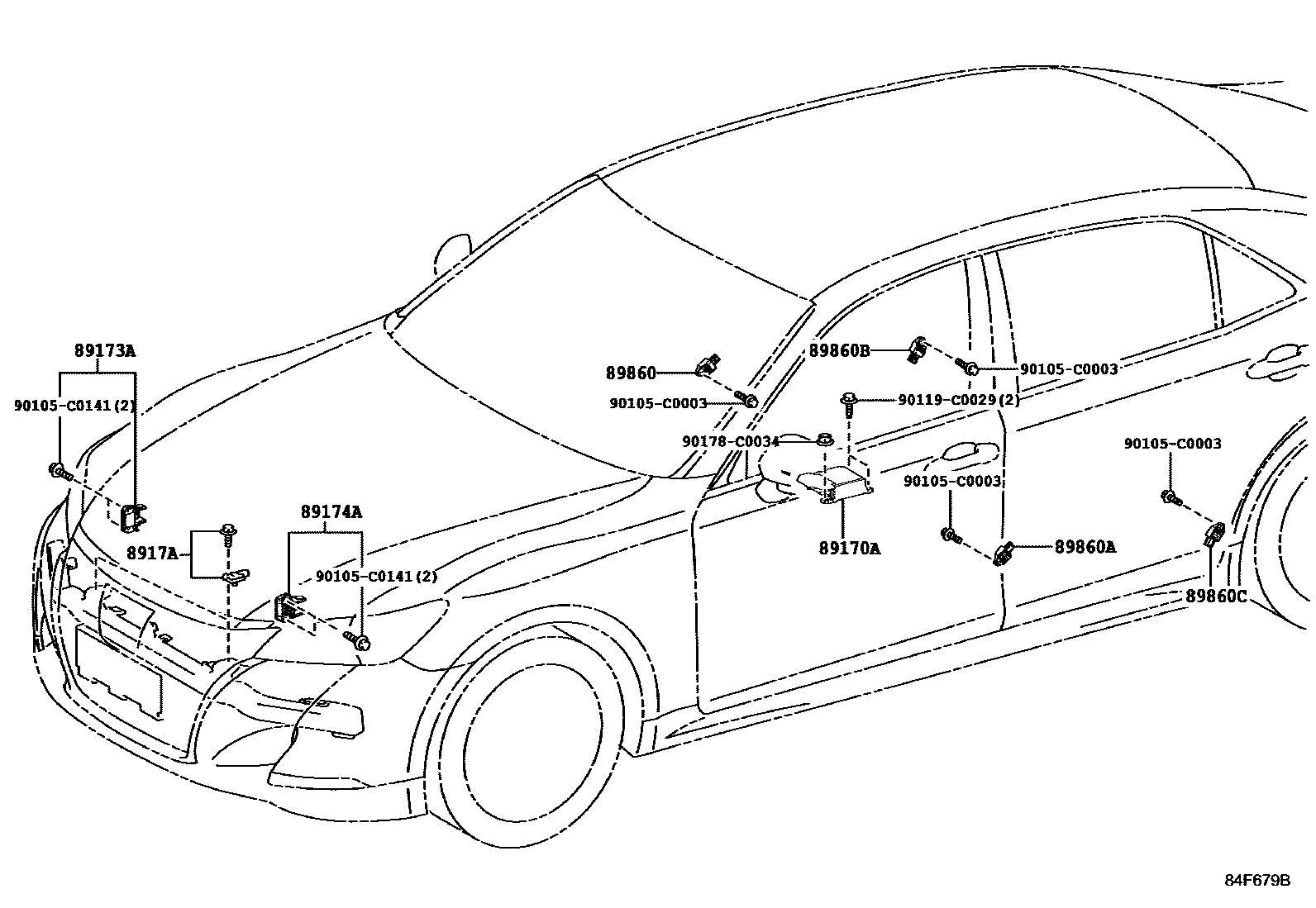

12 parts on this diagram · 1 diagram in section
