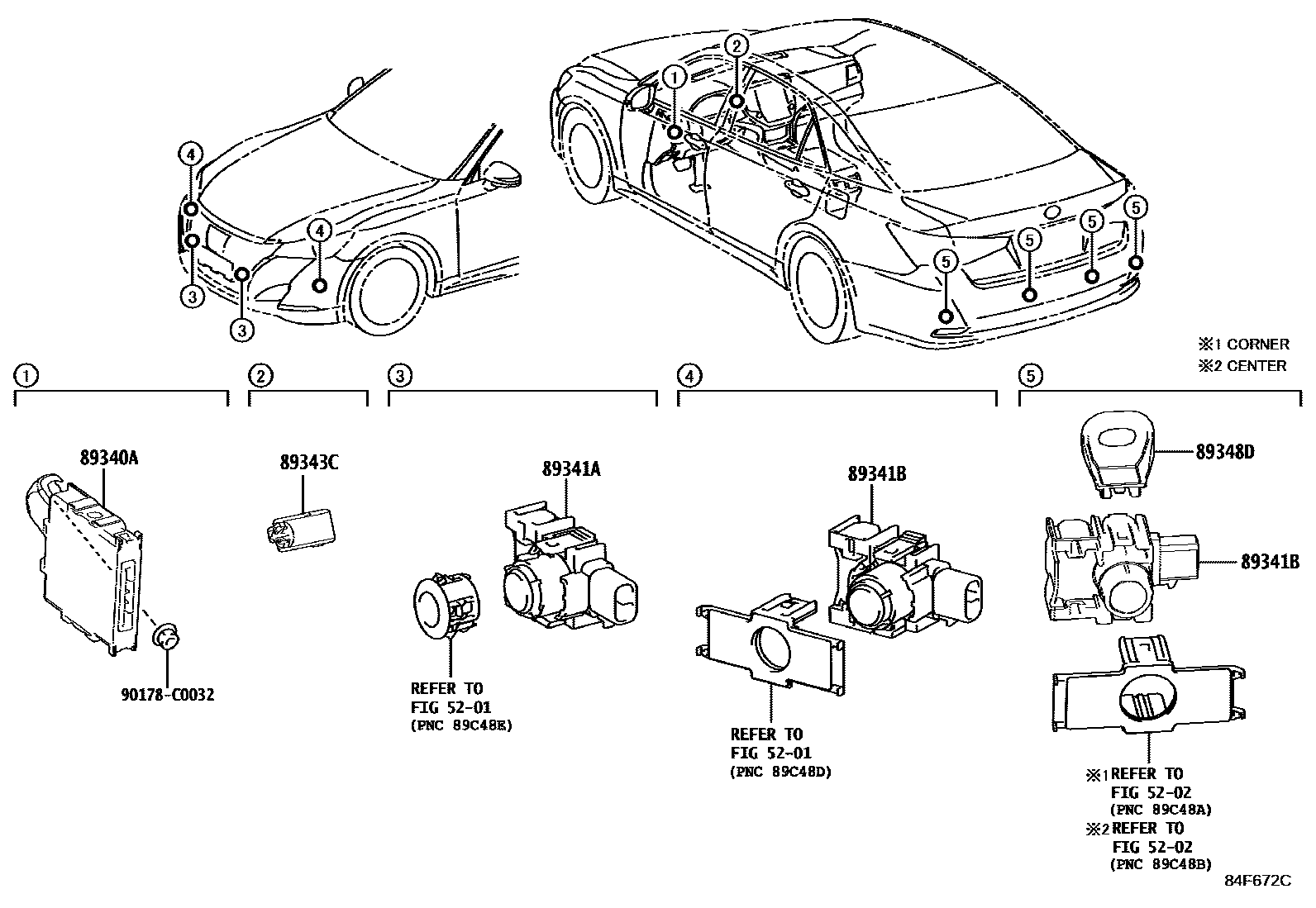

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0N040iARS212,GRS218..Q,S,U201501-202004

89341ASENSOR, ULTRASONIC, NO.1

main89341-02030-B2iARS212,GRS218..Q,S,U201501-201712

GREY METALLIC

main89341-02030-C1iARS212..P,Q,S,U201712

BLACK

89341BSENSOR, ULTRASONIC, NO.2

main89341-02050-A1iARS212..P,Q,S,U201712

WHITE PEARL CS.,062

main89341-02050-B2iARS212..P,Q,S,U201712

SILVER ME.,1F7

main89341-02050-C1iARS212..P,Q,S,U201712

BLACK,202

main89341-02050-D1iARS212..P,Q,S,U201712

BLACKISH RED MC.,3R0

main89341-02050-E2iARS212..P,Q,S,U201712

DK.BROWN M.M.,4X5

main89341-02050-J2iARS212..P,Q,S,U201712

DK. BLUE MC.,8X8

main89341-0N070-A0iARS212,GRS218..Q,S,U201501-201712

WHITE PEARL CS.,062

main89341-0N070-B0iARS212,GRS218..Q,S,U201501-201712

SILVER ME.,1F7

main89341-0N070-B1iARS212,GRS218..Q,S,U201501-201610

GRAY M.M.,1H1

main89341-0N070-C0iARS212,GRS218..Q,S,U201501-201712

BLACK,202

main89341-0N070-D0iARS212,GRS218..Q,S,U201501-201712

DK. RED M.M.,3Q3

main89341-0N070-E1iARS212,GRS218..Q,S,U201508-201712

DK.BROWN M.M.,4X5

main89341-0N070-J2iARS212,GRS218..Q,S,U201610-201709

BLUE ME.,8T7

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-0G010iARS212,GRS218..Q,S,U201501-201712

89348DCLIP, ULTRASONIC SENSOR

main89348-02110iARS212,GRS218..Q,S,U201501-201712

90178C0032

main90178-C0032

8 parts on this diagram · 1 diagram in section
