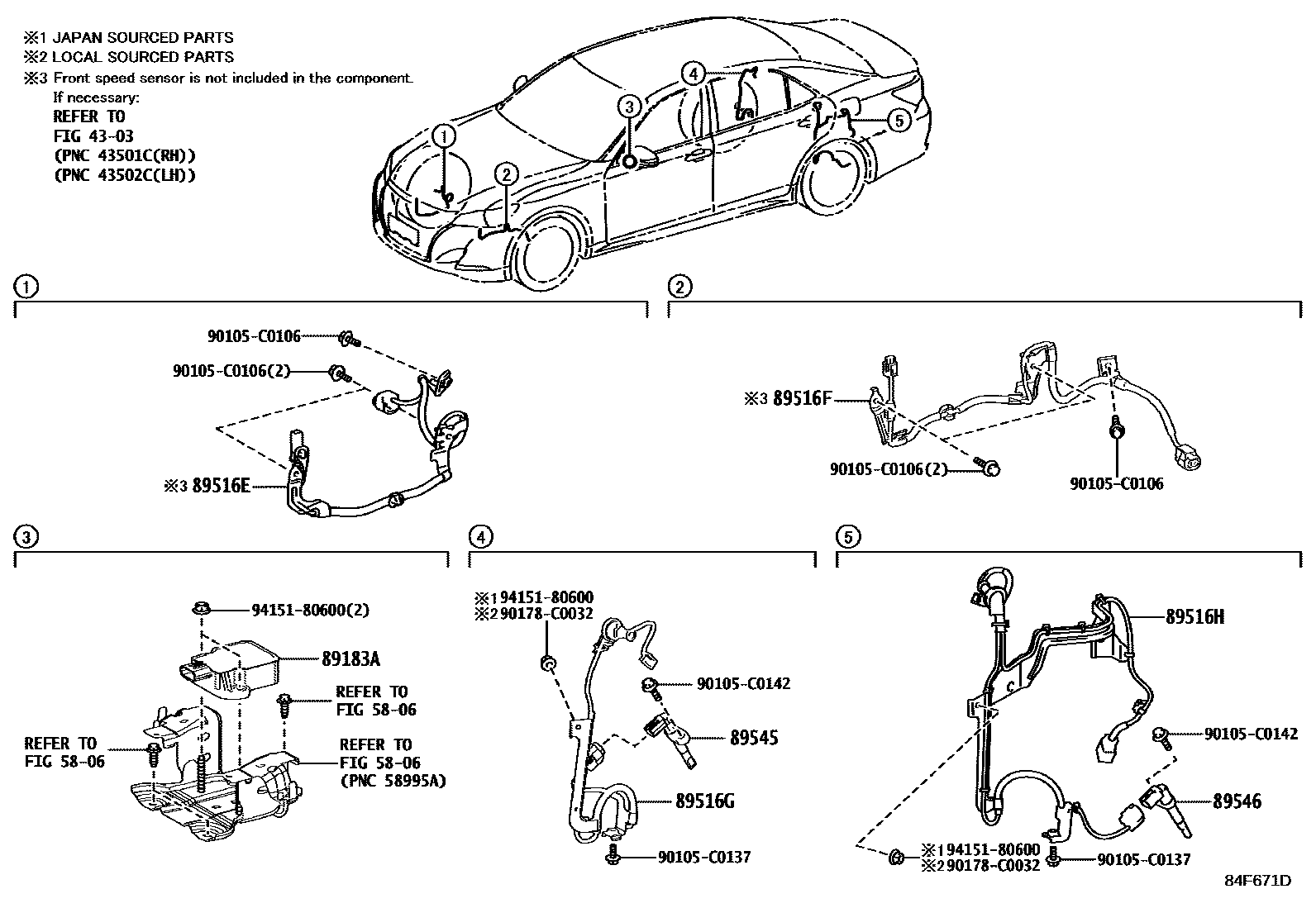

ABS & VSC

4303FRONT AXLE HUB

→ Go to FIG 43-03

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

89183ASENSOR, YAWRATE

main89183-30080iARS212..U201712-201905

main89183-50040iARS212..U201905

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-0N070iARS212,GRS218201501-201910

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-0N020iARS212,GRS218201501-201910

89516GWIRE, SKID CONTROL SENSOR, REAR RH NO.1

main89516-0N030iARS212,GRS218201501-201910

89516HWIRE, SKID CONTROL SENSOR, REAR LH NO.1

main89516-0N040iARS212,GRS218201501-201910

89545SENSOR, SPEED, REAR RH

main89545-0N030iARS212,GRS218201501-201910

89546SENSOR, SPEED, REAR LH

main89546-0N030iARS212,GRS218201501-201910

90105C0106

main90105-C0106

90105C0137

main90105-C0137

90105C0142

main90105-C0142

90178C0032

main90178-C0032

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
