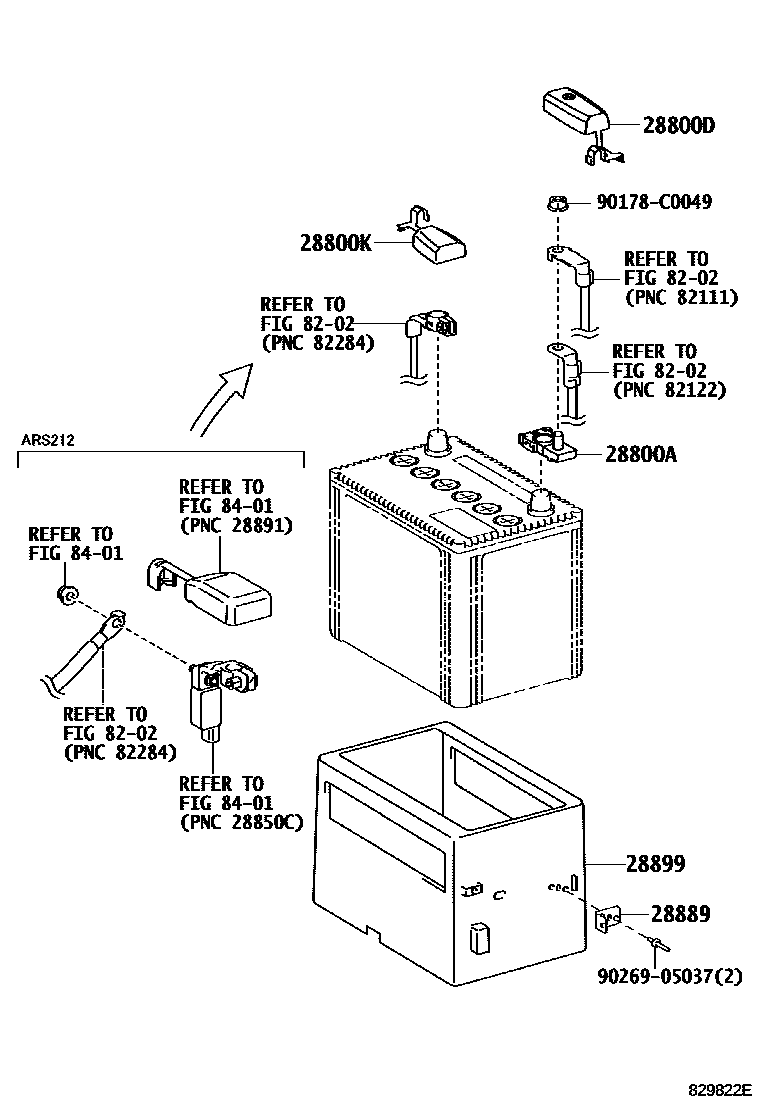

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05062i8ARFTS,5GRFE..ARS212,GRS218201501-201712

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50470i8ARFTS,5GRFE..ARS212,GRS218201501-201712

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i5GRFE..GRS218201501-201712

28889BRACKET, BATTERY WIRE CLAMP

main28889-31010i8ARFTS,5GRFE..ARS212,GRS218201501-201712

28899INSULATOR, BATTERY

main28899-0P010i8ARFTS,5GRFE..ARS212,GRS218201501-201712

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178C0049

main90178-C0049

9026905037

main90269-05037

9 parts on this diagram · 1 diagram in section
