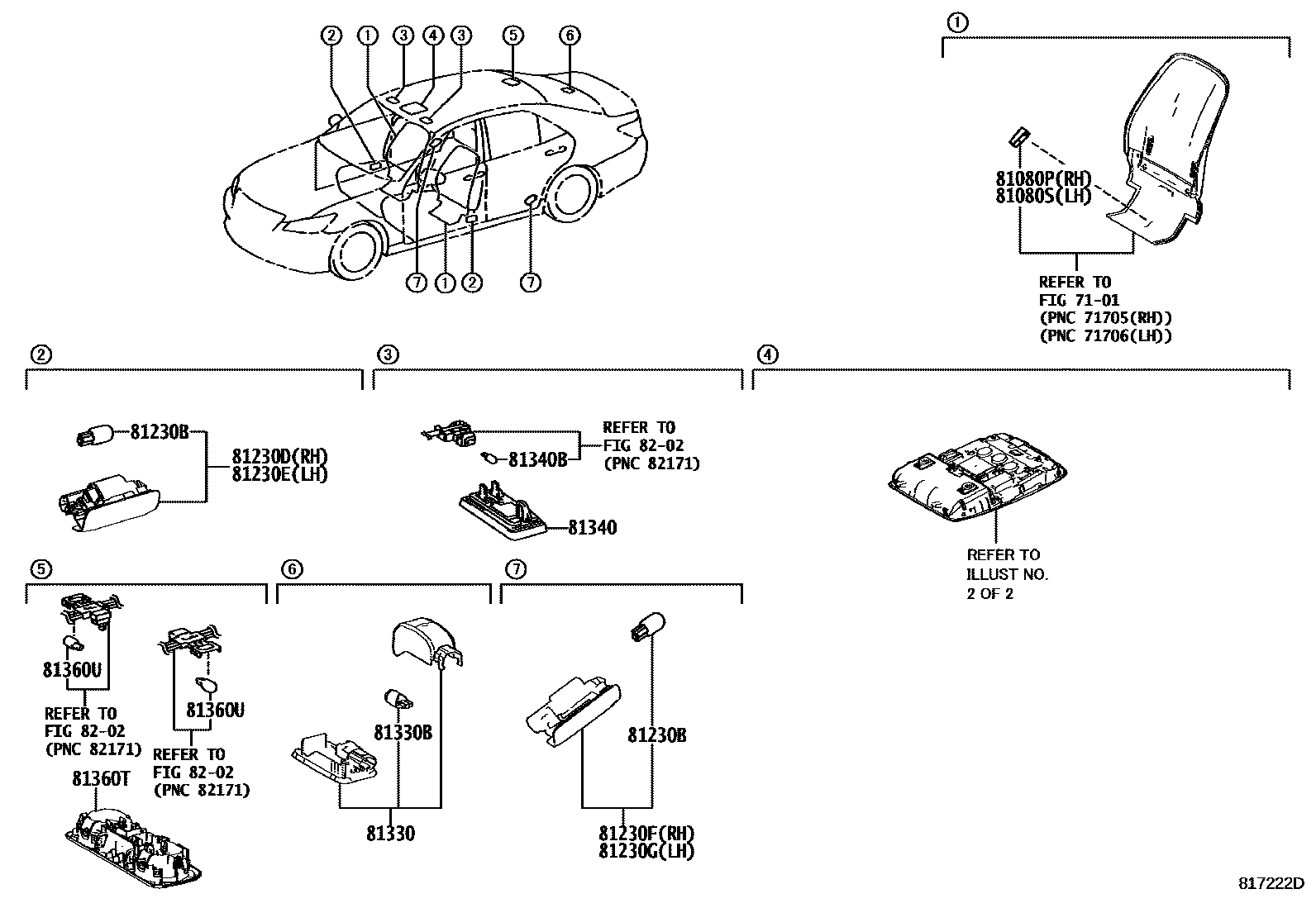

INTERIOR LAMP

0001 1 0002 1 0003 1 0004 1

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-30040iARS212,GRS218..Q,U201501-201712

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-30040iARS212,GRS218..Q,U201501-201712

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4iARS212,GRS218201501-201712

12V 5W

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-11030iARS212..B201712-201910

main81230-30200iARS212,GRS218201501-201712

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81230-11030iARS212..B201712-201910

main81230-30200iARS212,GRS218201501-201712

81230FLAMP ASSY, REAR DOOR COURTESY, RH

main81230-11030iARS212..B201712-201910

main81230-30200iARS212,GRS218201501-201712

81230GLAMP ASSY, REAR DOOR COURTESY, LH

main81230-11030iARS212..B201712-201910

main81230-30200iARS212,GRS218201501-201712

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iARS212,GRS218201501-201712

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iARS212,GRS218201501-201712

12V 5W

81340LAMP ASSY, VANITY

main81340-0P010×2iARS212..B201712-201910

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iARS212,GRS218201501-201712

12V 8W

81360TLAMP ASSY, SPOT

main81360-0N020-A2iARS212,GRS218201501-201712

FLAXEN,TRIM0#

main81360-0N020-B0iARS212..Q,U;GRS218..Q,S,U201501-201712

GRAY,TRIM2#

main81360-0N030-A0iARS212..B201712-201910

FLAXEN,TRIM0#

main81360-0N030-B0iARS212..P; ARS212..Q,S,U201712

GRAY,TRIM2#; GRAY,TRIM2#,3#

81360UBULB, SPOT LAMP

main90981-11062×2iARS212,GRS218201501-201712

8202WIRING & CLAMP

→ Go to FIG 82-02

15 parts on this diagram · 4 diagrams in section
