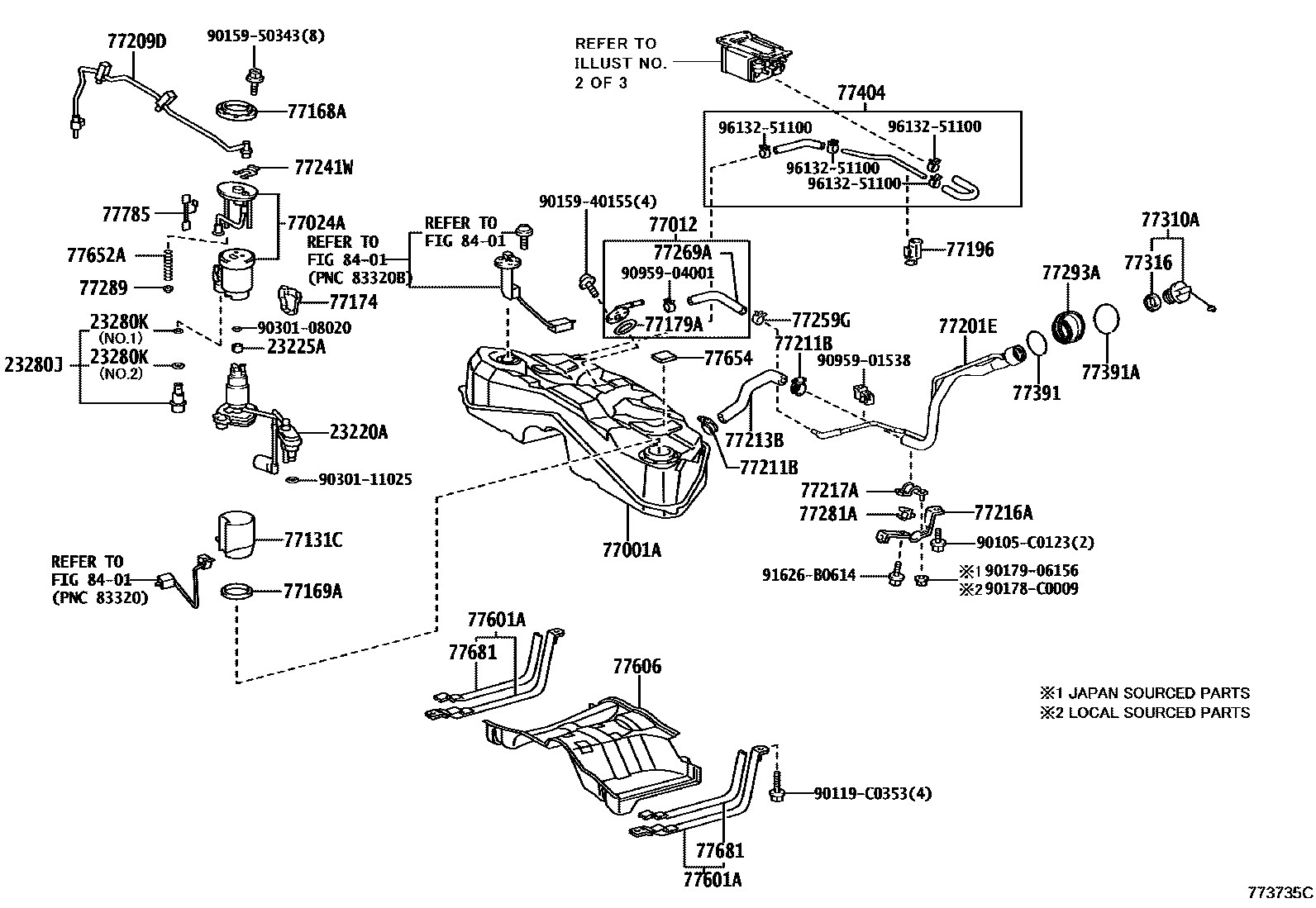

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0P141i5GRFE..GRS218201501-201712

main23220-31330i8ARFTS..ARS212..P,Q,S,U201508-201910

23225ASPACER, FUEL PUMP

main23225-0H020i5GRFE..GRS218201501-201712

main23225-31010i8ARFTS..ARS212201508-201910

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i5GRFE..GRS218201501-201712

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i5GRFE..GRS218201501-201712

NO.1:REFER ILLUST.

main90301-15024i5GRFE..GRS218201501-201712

NO.2:REFER ILLUST.

77001ATANK SUB-ASSY, FUEL

main77001-0N011iARS212,GRS218201501-201604

main77001-0N012iARS212..B201605-201910

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-0N010iARS212,GRS218201505-201910

main77012-22030iGRS218201501-201504

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0N040iGRS218201501-201712

main77024-30240iARS212201508-201910

77131CSUB-TANK, FUEL, NO.1

main77131-0N012iGRS218201501-201712

main77131-22041iARS212201508-201910

77168APLATE, FUEL TANK VENT TUBE SET

main77168-0N010iARS212..B201505-201910

main77168-52020iGRS218201501-201504

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iARS212,GRS218201501-201910

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0N011iGRS218201501-201712

main77174-48040iARS212..B201508-201910

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iARS212..P,Q,S,U201501-201910

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-30050iARS212,GRS218201501-201910

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0N020iARS212,GRS218201501-201910

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0N020iGRS218201501-201712

main77209-0N030iARS212..B201508-201910

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005iARS212,GRS218201501-201910

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0N010iARS212..B201505-201910

main77213-22100iGRS218201501-201504

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0N010iARS212..P,Q,S,U201501-201910

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0N010iARS212..P,Q,S,U201501-201910

77241WCLIP, TUBE JOINT

main77241-33011iARS212..B201501-201910

77259GCLIP, FUEL HOSE

main90959-04001iARS212..P,Q,S,U201501-201910

77269AHOSE, FUEL TANK BREATHER

main77269-0N010iARS212,GRS218201505-201910

main77269-22010iGRS218201501-201504

77281ACLAMP, FUEL FILLER PIPE

main77281-50020iARS212..P,Q,S,U201501-201910

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iARS212,GRS218201501-201910

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-0N030iARS212,GRS218201501-201910

77310ACAP ASSY, FUEL TANK

main77300-02030iARS212,GRS218201501-201910

77316GASKET, FUEL TANK CAP

main77316-0F020iARS212,GRS218201501-201910

77391RING, FUEL INLET BOX

main77391-0R030iARS212,GRS218201501-201910

(L)

main77391-12020iARS212,GRS218201501-201910

(J)

77391ARING, FUEL INLET BOX

main77391-30020iARS212,GRS218201501-201910

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-0N010iARS212,GRS218201501-201910

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-22120iARS212,GRS218201501-201910

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0N010iGRS218201501-201712

main77606-0N020iARS212201508-201910

77652ACUSHION, FUEL TANK, NO.2

main77652-0N010iGRS218201501-201712

main77652-22090iARS212201508-201910

77654CUSHION, FUEL TANK, NO.2

main77652-12100iARS212,GRS218201501-201910

77681SEAT, FUEL TANK BAND, RH

main77681-22020iARS212,GRS218201501-201910

77785HARNESS, FUEL PUMP

main77785-0N020iGRS218201501-201712

main77785-30050iARS212201508-201910

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105C0123

main90105-C0123

90119C0353

main90119-C0353

9015940155

main90159-40155

9015950343

main90159-50343

90178C0009

main90178-C0009

9017906156

main90179-06156

9030108020

main90301-08020

9030111025

main90301-11025

9095901538

main90959-01538

9095904001

main90959-04001

91626B0614

main91626-B0614

9613251100

main96132-51100

49 parts on this diagram · 5 diagrams in section
