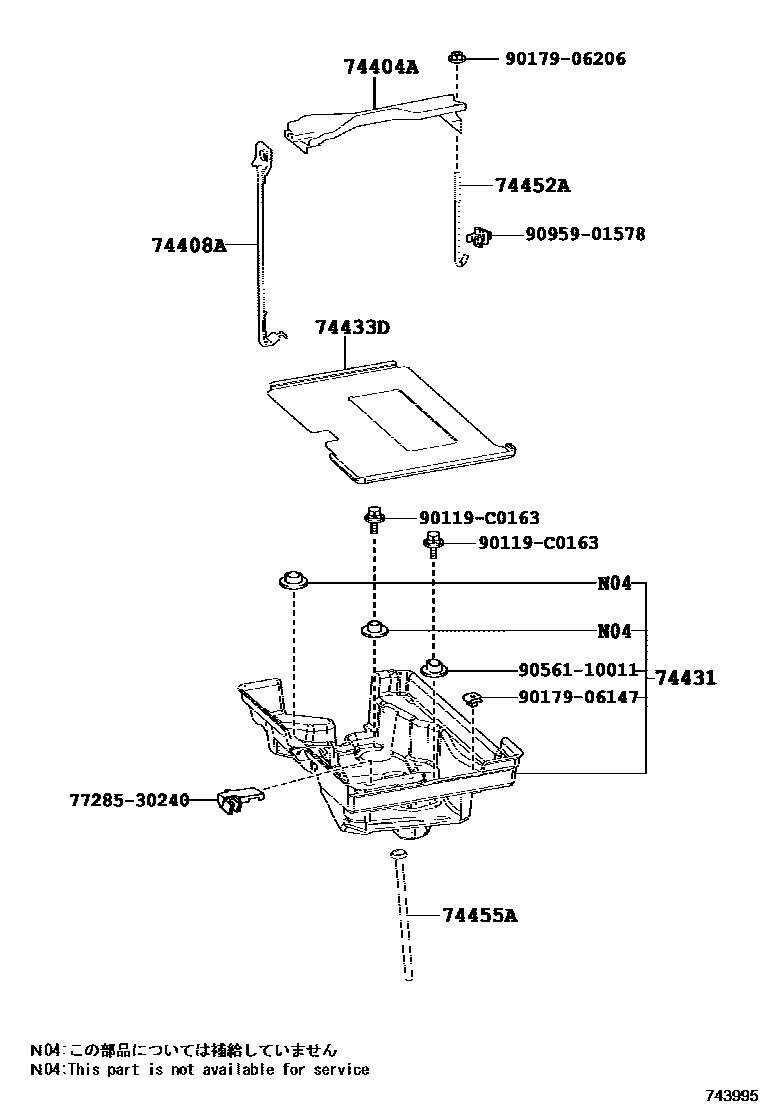

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-0P010iARS212,GRS218201501-201712

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-22031iARS212,GRS218201501-201712

74431TRAY, BATTERY

main74431-0N010iARS212,GRS218201501-201712

74433DSUPPORT, BATTERY TRAY,NO.1

main74433-30033iARS212,GRS218201501-201712

74452ABOLT, BATTERY CLAMP, NO.2

main74452-30010iARS212,GRS218201501-201712

74455AHOSE, BATTERY DRAIN

main74455-30020iARS212,GRS218201501-201712

7728530240BRACKET, FUEL TUBE

main77285-30240

90119C0163

main90119-C0163

9017906147

main90179-06147

9017906206

main90179-06206

9056110011

main90561-10011

9095901578

main90959-01578

12 parts on this diagram · 1 diagram in section
