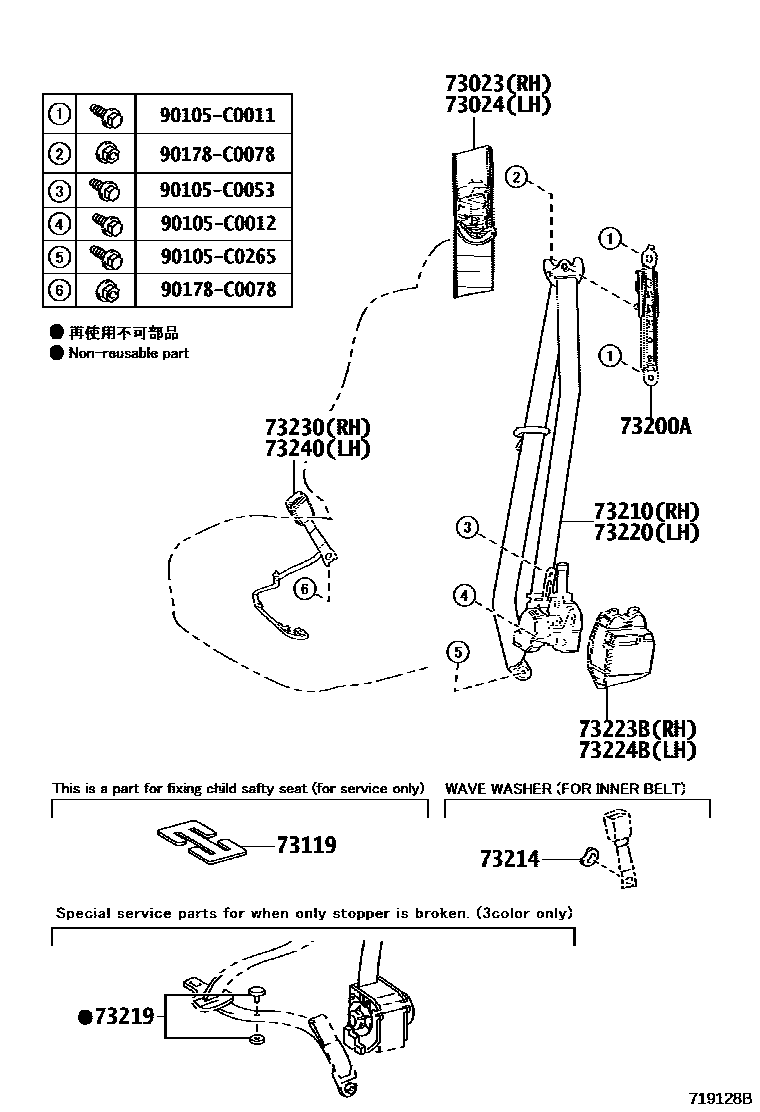

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02070-A1iARS212..B201712-201910

FLAXEN,TRIM0#

main73023-02070-B1iARS212..P; ARS212..Q,S,U201712

GRAY,TRIM2#; GRAY,TRIM2#,3#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02070-A1iARS212..B201712-201910

FLAXEN,TRIM0#

main73024-02070-B1iARS212..P; ARS212..Q,S,U201712

GRAY,TRIM2#; GRAY,TRIM2#,3#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iARS212..B201712-201910

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020×2iARS212..B201712-201910

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0N050-A0iARS212..B201712-201910

FLAXEN,TRIM0#

main73210-0N050-C0iARS212..P; ARS212..Q,S,U201712

BLACK,TRIM2#; BLACK,TRIM2#,3#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iARS212,GRS218201501-201712

73219STOPPER, TONGUE PLATE

main73219-33010iARS212,GRS218201501-201712

BLACK

main73219-33020iARS212..P,Q,S,U201712

GRAY

main73219-33030iARS212..B201712-201910

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0N050-A0iARS212..P,Q,S,U201712

FLAXEN,TRIM0#

main73220-0N050-C0iARS212..P; ARS212..Q,S,U201712

BLACK,TRIM2#; BLACK,TRIM2#,3#

73223COVER, SEAT BELT RETRACTOR

main73223-0N070×2iARS212,GRS218201501-201712

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0N060iARS212,GRS218201501-201712

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-0N040iARS212,GRS218201501-201712

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0N090-A0iARS212,GRS218..Q,S,U201501-201712

FLAXEN,TRIM0#

main73230-0N090-C0iARS212..P; ARS212..Q,S,U201712

BLACK,TRIM2#; BLACK,TRIM2#,3#

main73230-0N110-A0iARS212..B201712-201910

FLAXEN,TRIM0#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0N080-A0iARS212..P,S201712

FLAXEN,TRIM0#

main73230-0N080-C0iARS212..P; ARS212..S201712

BLACK,TRIM2#; BLACK,TRIM2#,3#

main73230-0N100-A0iARS212..B201712-201910

FLAXEN,TRIM0#

main73230-0N120-A0iARS212..Q,U201712

FLAXEN,TRIM0#

main73230-0N120-C0iARS212,GRS218..Q,U201501-201712

BLACK,TRIM2#

90105C0011

main90105-C0011

90105C0012

main90105-C0012

90105C0053

main90105-C0053

90105C0265

main90105-C0265

90178C0078

main90178-C0078

18 parts on this diagram · 2 diagrams in section
