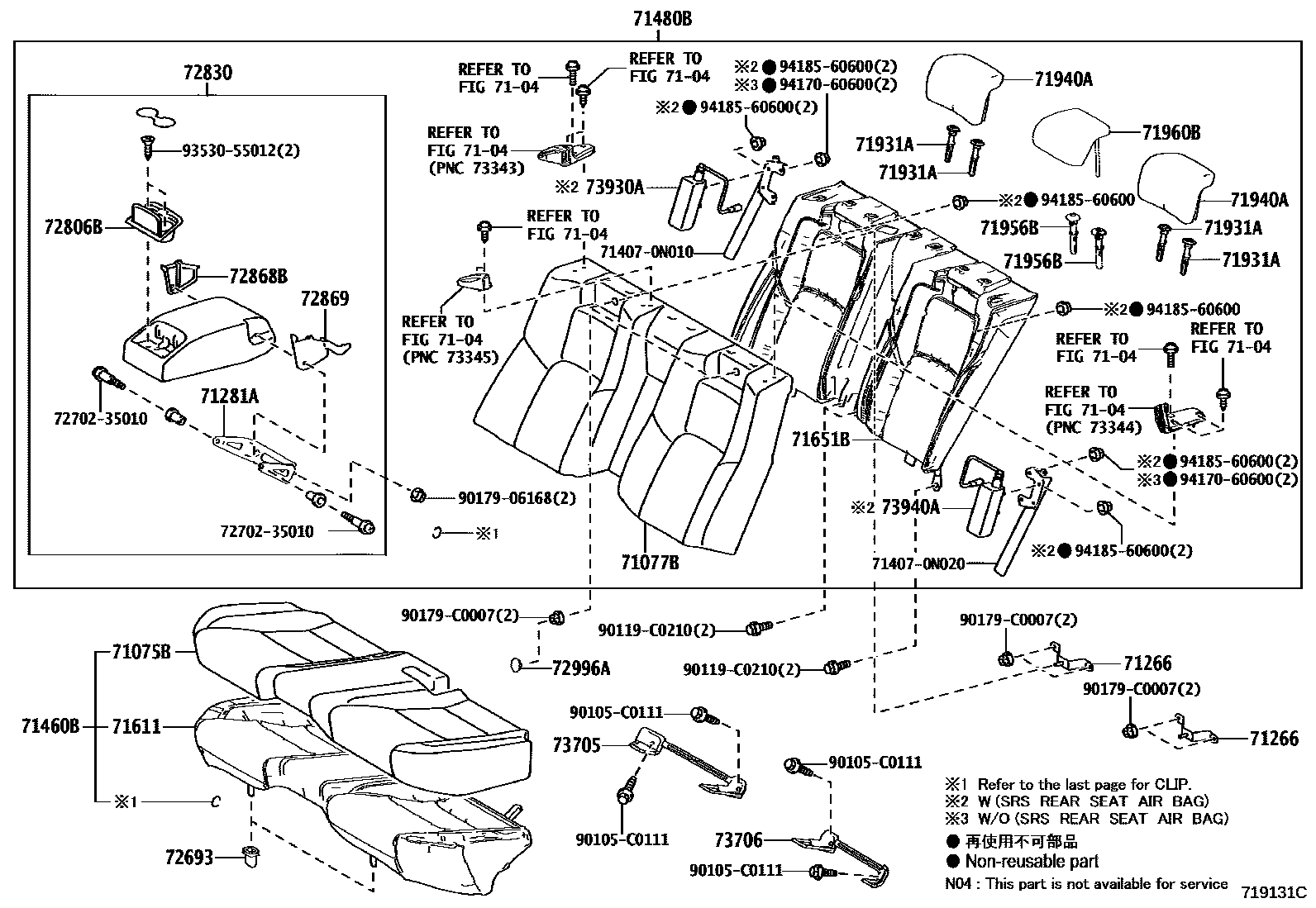

REAR SEAT & SEAT TRACK

0001 1FIXED TYPE SEAT 0002 1FOLD TYPE(SEAT BACK) 0003 1FOLD TYPE(SEAT CUSHION) 0004 1FOLD TYPE(ARMREST) 0005 1CLIP

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0N100-A1iARS212,GRS218..U201501-201702

FLAXEN,TRIM0#

main71075-0N100-C1iARS212,GRS218..U201501-201702

BLACK,TRIM2#

main71075-0N101-A1iARS212..U201712-202001

FLAXEN,TRIM0#

main71075-0N101-C1iARS212..U201712-202001

BLACK,TRIM2#

main71075-0N102-A1iARS212..U202001

FLAXEN,TRIM0#

main71075-0N102-C1iARS212..U202001

BLACK,TRIM2#

main71075-0N110-A1iARS212,GRS218..Q,S201501-201702

FLAXEN,TRIM0#

main71075-0N110-C1iARS212,GRS218..Q,S201501-201702

BLACK,TRIM2#

main71075-0N111-A1iARS212,GRS218..Q,S201703-201712

FLAXEN,TRIM0#

main71075-0N111-C1iARS212..Q,S201712

BLACK,TRIM2#

main71075-0N111-D0iARS212..P201712

SMOOTH PERF.,TRIM3#

main71075-0N120-A0iARS212,GRS218..B201501-201702

FLAXEN,TRIM0#

main71075-0N121-A0iARS212..B201712-201910

FLAXEN,TRIM0#

main71075-0N130-D0iARS212..S201610-201702

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

main71075-0N131-D0iARS212..S201703-201712

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-0N060-A1iARS212,GRS218..B201501-201610

FLAXEN,TRIM0#

main71077-0N060-A2iARS212..B201712-201910

FLAXEN,TRIM0#

main71077-0N070-A1iARS212,GRS218..Q,S201501-201610

FLAXEN,TRIM0#

main71077-0N070-A2iARS212,GRS218..Q,S201610-201702

FLAXEN,TRIM0#

main71077-0N070-C1iARS212,GRS218..Q,S201501-201610

BLACK,TRIM2#

main71077-0N070-C2iARS212,GRS218..Q,S201610-201702

BLACK,TRIM2#

main71077-0N071-A2iARS212,GRS218..Q,S201703-201712

FLAXEN,TRIM0#

main71077-0N071-C2iARS212..Q,S201712

BLACK,TRIM2#

main71077-0N071-D2iARS212..P201712

SMOOTH PERF.,TRIM3#

main71077-0N130-D0iARS212..S201610-201702

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

main71077-0N131-D0iARS212..S201703-201712

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

71266GUSSET, REAR SEATBACK FRAME

main71266-30130×2iARS212..B201712-201910

71281AHINGE, REAR SEAT CENTER ARMREST

main71281-30060iARS212,GRS218201501-201712

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-0N100-A0iARS212..B201712-201910

FLAXEN,TRIM0#

main71460-0N110-A1iARS212,GRS218..Q,S201501-201712

FLAXEN,TRIM0#

main71460-0N110-C1iARS212,GRS218..Q,S201501-201712

BLACK,TRIM2#

main71460-0N110-D0iARS212..P201712

SMOOTH PERF./BLACK,TRIM3#

main71460-0N120-A1iARS212,GRS218..U201501-201712

FLAXEN,TRIM0#

main71460-0N120-C1iARS212..U201712

BLACK,TRIM2#

main71460-0N130-D0iARS212..S201610-201712

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-0N170-A2iARS212,GRS218..B201501-201610

FLAXEN,TRIM0#

main71480-0N170-A3iARS212..B201712-201910

FLAXEN,TRIM0#

main71480-0N180-A2iARS212,GRS218..Q,S201501-201610

FLAXEN,TRIM0#

main71480-0N180-A3iARS212,GRS218..Q,S201610-201712

FLAXEN,TRIM0#

main71480-0N180-C2iARS212,GRS218..Q,S201501-201610

BLACK,TRIM2#

main71480-0N180-C3iARS212..Q,S201712

BLACK,TRIM2#

main71480-0N180-D2iARS212..P201712

SMOOTH PERF.,TRIM3#

main71480-0N100-D0iARS212..S201610-201712

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

71611PAD, REAR SEAT CUSHION

main71503-0N060iARS212,GRS218201501-201712

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-0N010iARS212,GRS218..Q,S201501-201712

main71507-0N020iARS212..B201712-201910

71931ASUPPORT, REAR SEAT HEADREST

main71930-02360-A6×2iARS212,GRS218201501-201712

W(LOCK),FLAXEN,TRIM0#

main71930-02360-C0×2iARS212..P; ARS212..Q,S,U201712

W(LOCK),BLACK,TRIM2#; W(LOCK),BLACK,TRIM2#,3#

main71931-02120-A6×2iARS212,GRS218201501-201712

W/O(LOCK),FLAXEN,TRIM0#

main71931-02120-C0×2iARS212..Q,U;GRS218..Q,S,U201501-201712

W/O(LOCK),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-0N070-A1×2iARS212,GRS218..Q,S,U201501-201610

FLAXEN,TRIM0#

main71940-0N070-A2×2iARS212,GRS218..Q,S,U201610-201612

FLAXEN,TRIM0#

main71940-0N070-C1×2iARS212..S201508-201610

BLACK,TRIM2#,3#

main71940-0N070-C2×2iARS212..Q,U;GRS218..Q,S,U; ARS212..S201610-201612

BLACK,TRIM2#; BLACK,TRIM2#,3#

main71940-0N080-A1×2iARS212,GRS218..B201501-201712

FLAXEN,TRIM0#

main71940-0N200-A0×2iARS212,GRS218..Q,S,U201701-201712

FLAXEN,TRIM0#

main71940-0N200-C0×2iARS212..P; ARS212..Q,S,U201712

BLACK,TRIM2#; BLACK,TRIM3#

71956BSUPPORT, REAR SEAT HEADREST

main71930-02360-A6iARS212,GRS218..B,Q,S201501-201712

W(LOCK),FLAXEN,TRIM0#

main71930-02360-C0iARS212..P; ARS212..Q,S201712

W(LOCK),BLACK,TRIM2#; W(LOCK),BLACK,TRIM2#,3#

main71930-44020-21iARS212,GRS218..U201710-201712

W(LOCK),BLACK,TRIM2#

main71930-44020-A7iARS212,GRS218..U201501-201712

W(LOCK),FLAXEN,TRIM0#

main71930-44020-C0iARS212,GRS218..U201501-201710

W(LOCK),BLACK,TRIM2#

main71931-02120-A6iARS212..B,P,Q,S201712

W/O(LOCK),FLAXEN,TRIM0#

main71931-02120-C0iARS212..S201508-201712

W/O(LOCK),BLACK,TRIM2#,3#

main71931-47010-02iARS212..U201712

W/O(LOCK),FLAXEN,TRIM0#

main71931-47010-C0iARS212,GRS218..U201501-201710

W/O(LOCK),BLACK,TRIM2#

main71931-47010-C8iARS212,GRS218..U201710-201712

W/O(LOCK),BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0N070-A1iARS212,GRS218..Q,S,U201501-201610

FLAXEN,TRIM0#

main71960-0N070-A2iARS212,GRS218..Q,S,U201610-201612

FLAXEN,TRIM0#

main71960-0N070-C1iARS212..Q,U;GRS218..Q,S,U201501-201610

BLACK,TRIM2#

main71960-0N070-C2iARS212..Q,U;GRS218..Q,S,U; ARS212..S201610-201612

BLACK,TRIM2#; BLACK,TRIM2#,3#

main71960-0N090-A1iARS212..B201712-201910

FLAXEN,TRIM0#

main71960-0N200-A0iARS212..Q,S,U201712

FLAXEN,TRIM0#

main71960-0N200-C0iARS212..P; ARS212..Q,S,U201712

BLACK,TRIM2#; BLACK,TRIM3#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iARS212..B201712-201910

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-0N030-A0iARS212..B201712-201910

FLAXEN,TRIM0#

main72806-0N040-A0iARS212..Q,S201712

FLAXEN,TRIM0#

main72806-0N040-C0iARS212..P; ARS212..Q,S201712

BLACK,TRIM2#; BLACK,TRIM3#

main72806-30090-A2iARS212,GRS218..U201501-201712

FLAXEN,TRIM0#

main72806-30090-C0iARS212,GRS218..U201501-201712

BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0N130iARS212..B201712-201910

main72830-0N130-A1iARS212,GRS218..B201501-201712

FLAXEN,TRIM0#

main72830-0N140-A2iARS212,GRS218..Q,S201501-201702

FLAXEN,TRIM0#

main72830-0N140-C2iARS212..S201508-201702

BLACK,TRIM2#,3#

main72830-0N141-A2iARS212,GRS218..Q,S201703-201712

FLAXEN,TRIM0#

main72830-0N141-C2iARS212..P; ARS212..Q,S201712

BLACK,TRIM2#; BLACK,TRIM3#

main72830-0N150-A1iARS212,GRS218..U201501-201702

FLAXEN,TRIM0#

main72830-0N150-C1iARS212,GRS218..U201501-201702

BLACK,TRIM2#

main72830-0N151-A1iARS212,GRS218..U201703-201712

FLAXEN,TRIM0#

main72830-0N151-A2iARS212..U201712

FLAXEN,TRIM0#

main72830-0N151-C1iARS212,GRS218..U201703-201712

BLACK,TRIM2#

main72830-0N151-C2iARS212..U201712

BLACK,TRIM2#

72868BCOVER, CENTER ARMREST HINGE

main72868-0N020-A5iARS212,GRS218..B,Q,S201501-201712

FLAXEN,TRIM0#

main72868-0N020-C1iARS212..P; ARS212..Q,S201712

BLACK,TRIM2#; BLACK,TRIM3#

72869COVER, CENTER ARMREST HINGE, LH

main72869-0N020-A5iARS212..B,Q,S201712

FLAXEN,TRIM0#

main72869-0N020-C1iARS212..S201508-201712

BLACK,TRIM2#,3#

72996ACOVER, REAR SEATBACK

main72996-0N040-A2×2iARS212,GRS218..B,Q,S; ARS212,GRS218..U201501-201712

FLAXEN,TRIM0#

main72996-0N040-C0×5iARS212..P; ARS212..Q,S; ARS212..U201712

BLACK,TRIM2#; BLACK,TRIM2#,3#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-30030iARS212,GRS218201501-201712

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-30030iARS212..B201712-201910

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-0N030iARS212,GRS218..U201501-201712

main73930-0N050iARS212..P,Q,S201712

73940AAIRBAG ASSY, REAR SEAT, LH

main73940-0N030iARS212,GRS218..U201501-201712

main73940-0N050iARS212,GRS218..Q,S201501-201712

714070N010POST SUB-ASSY, REAR SEAT, REAR

main71407-0N010

714070N020POST SUB-ASSY, REAR SEAT, REAR

main71407-0N020

7270235010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-35010

90105C0111

main90105-C0111

90119C0210

main90119-C0210

9017906168

main90179-06168

90179C0007

main90179-C0007

9353055012

main93530-55012

9417060600

main94170-60600

9418560600

main94185-60600

33 parts on this diagram · 5 diagrams in section
