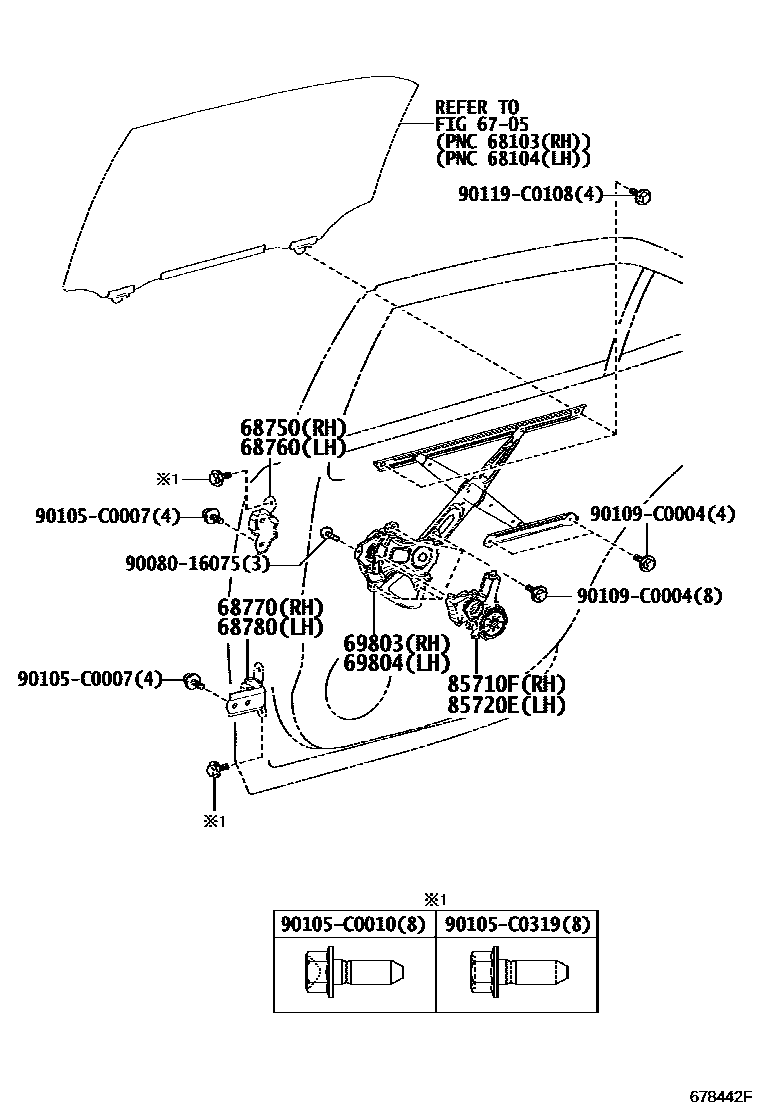

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iARS212,GRS218201501-201712

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iARS212,GRS218201501-201712

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0N020iARS212,GRS218201501-201712

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0N020iARS212,GRS218201501-201712

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-0N030iARS212,GRS218201501-201712

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-0N030iARS212,GRS218201501-201712

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0N050iARS212,GRS218201501-201712

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0N050iARS212,GRS218201501-201712

9008016075

main90080-16075

90105C0007

main90105-C0007

90105C0010

main90105-C0010

90105C0319

main90105-C0319

90109C0004

main90109-C0004

90119C0108

main90119-C0108

15 parts on this diagram · 1 diagram in section
