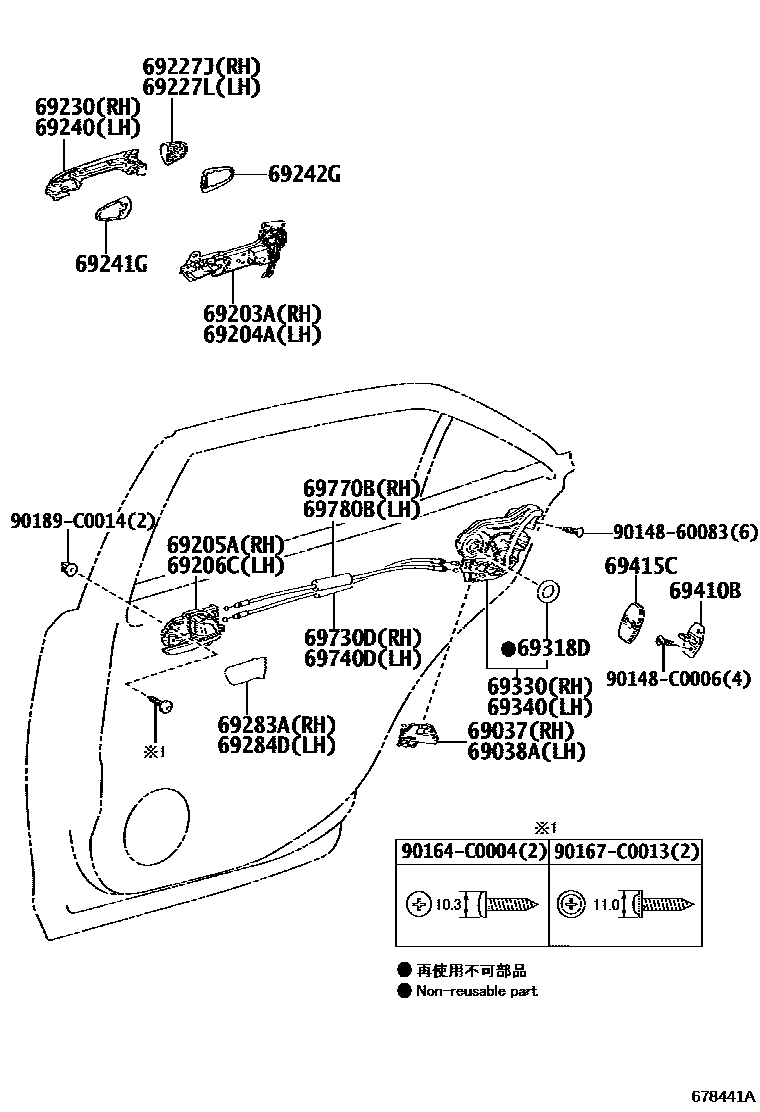

REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM0#; BLACK,TRIM0#,2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,062; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),WHITE PEARL CS.,062
SILVER ME.,1F7
GRAY M.M.,1H1; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),GRAY M.M.,1H1
BLACK,202; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLACK,202
DK. RED M.M.,3Q3; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLUE ME.,8T7
*CR
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,062; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),WHITE PEARL CS.,062
SILVER ME.,1F7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),SILVER ME.,1F7
GRAY M.M.,1H1; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),GRAY M.M.,1H1
BLACK,202
DK. RED M.M.,3Q3; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLUE ME.,8T7
*CR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
GRAY M.M.,1H1
BLACK,202
DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7
WHITE PEARL CS.,062; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),WHITE PEARL CS.,062
SILVER ME.,1F7
GRAY M.M.,1H1; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),GRAY M.M.,1H1
BLACK,202; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLACK,202
DK. RED M.M.,3Q3; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLUE ME.,8T7
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
GRAY M.M.,1H1
BLACK,202
DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7
WHITE PEARL CS.,062; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),WHITE PEARL CS.,062
SILVER ME.,1F7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),SILVER ME.,1F7
GRAY M.M.,1H1; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),GRAY M.M.,1H1
BLACK,202; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLACK,202
DK. RED M.M.,3Q3; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLUE ME.,8T7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM0#; BLACK,TRIM0#,2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014860083
main90148-60083
90148C0006
main90148-C0006
90164C0004
main90164-C0004
90167C0013
main90167-C0013
90189C0014
main90189-C0014
28 parts on this diagram · 1 diagram in section
