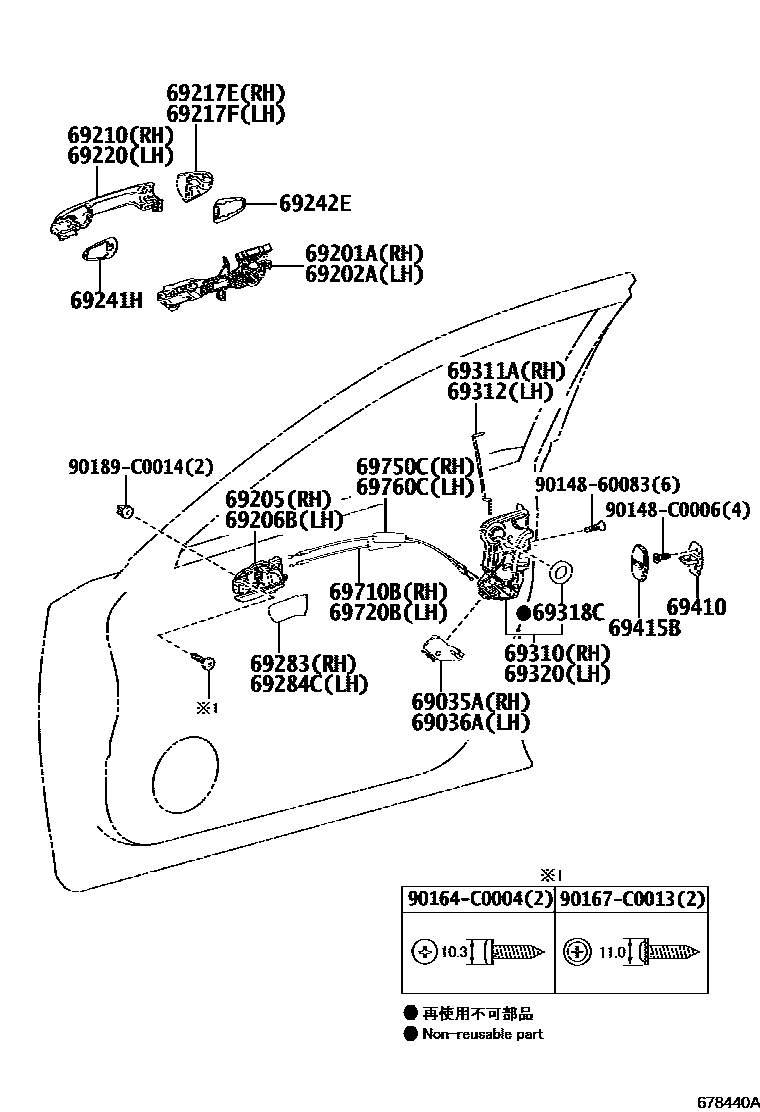

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM0#; BLACK,TRIM0#,2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,062; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),WHITE PEARL CS.,062
SILVER ME.,1F7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),SILVER ME.,1F7
GRAY M.M.,1H1; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),GRAY M.M.,1H1
BLACK,202; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLACK,202
DK. RED M.M.,3Q3; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLUE ME.,8T7
WHITE PEARL CS.,062
SILVER ME.,1F7
GRAY M.M.,1H1
BLACK,202
DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
GRAY M.M.,1H1; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),GRAY M.M.,1H1
BLACK,202; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLACK,202
DK. RED M.M.,3Q3; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLUE ME.,8T7
*CR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
GRAY M.M.,1H1; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),GRAY M.M.,1H1
BLACK,202; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLACK,202
DK. RED M.M.,3Q3; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLUE ME.,8T7
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,062; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),WHITE PEARL CS.,062
SILVER ME.,1F7
GRAY M.M.,1H1; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),GRAY M.M.,1H1
BLACK,202
DK. RED M.M.,3Q3; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7; WITHOUT(TIRE PRESSURE MONITORING SYSTEM),BLUE ME.,8T7
WHITE PEARL CS.,062
SILVER ME.,1F7
GRAY M.M.,1H1
BLACK,202
DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
DEEP GOLD PEARL CS.,4T7
DK.BROWN M.M.,4X5
DK. BLUE MC.,8X8
BLUE ME.,8T7
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014860083
main90148-60083
90148C0006
main90148-C0006
90164C0004
main90164-C0004
90167C0013
main90167-C0013
90189C0014
main90189-C0014
30 parts on this diagram · 1 diagram in section
