INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0N020iARS212..B201712-201910

62170BBOLT, W/WASHER

main90119-06869×4iARS212..B201712-201910

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0N020iARS212..B201712-201910

62211GARNISH, FRONT PILLAR, RH

main62211-0N040-A0iARS212..B201712-201910

FLAXEN,TRIM0#

main62211-0N040-B0iARS212..Q,S,U201712

GRAY,TRIM2#,3#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161×2iARS212..B201712-201910

62212GARNISH, FRONT PILLAR, LH

main62212-0N040-A0iARS212..B201712-201910

FLAXEN,TRIM0#

main62212-0N040-B0iARS212..Q,S,U201712

GRAY,TRIM2#,3#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52120×2iARS212,GRS218201501-201712

62313DTRIM, FRONT DOOR OPENING, RH

main62313-0N030-C0iARS212..Q,S,U201712

BLACK,TRIM0#,2#,3#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-0N030-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#,2#

62333ATRIM, REAR DOOR OPENING, RH

main62333-0N030-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#,2#

62334ATRIM, REAR DOOR OPENING, LH

main62334-0N030-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#,2#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167×2iARS212,GRS218201501-201712

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0N030-A0iARS212,GRS218201501-201511

FLAXEN,TRIM0#

main62411-0N030-B0iARS212,GRS218..Q,S,U201501-201511

GRAY,TRIM2#

main62411-0N031-A0iARS212,GRS218201512-201712

FLAXEN,TRIM0#

main62411-0N031-B0iARS212..Q,U;GRS218..Q,S,U201512-201712

GRAY,TRIM2#,3#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0N030-A0iARS212,GRS218201501-201511

FLAXEN,TRIM0#

main62412-0N030-B0iARS212,GRS218..Q,S,U201501-201511

GRAY,TRIM2#

main62412-0N031-A0iARS212,GRS218201512-201712

FLAXEN,TRIM0#

main62412-0N031-B0iARS212..Q,U;GRS218..Q,S,U201512-201712

GRAY,TRIM2#,3#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0N030-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#,2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-C0036×4iARS212,GRS218201501-201712

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0N030-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#,2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0N060-A0iARS212,GRS218201501-201712

FLAXEN,TRIM0#

main62471-0N060-B0iARS212..Q,S,U201712

GRAY,TRIM2#,3#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-A0033×6iARS212,GRS218201501-201712

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188×4iARS212..P,Q,S,U201712

62471MCLIP

main90467-18017×10iARS212..B201712-201910

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0N060-A0iARS212,GRS218201501-201712

FLAXEN,TRIM0#

main62472-0N060-B0iARS212..Q,S,U201712

GRAY,TRIM2#,3#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-0N080-C0iARS212,GRS218..Q,S,U201501-201511

BLACK,TRIM0#,2#

main62551-0N081-C0iARS212..Q,S,U201712

BLACK,TRIM0#,2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-0N040-C0iARS212,GRS218..Q,S,U201501-201511

BLACK,TRIM0#,2#

main62552-0N041-C0iARS212..Q,U;GRS218..Q,S,U201512-201712

BLACK,TRIM0#,2#,3#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010×2iARS212,GRS218201501-201712

62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010×2iARS212,GRS218201501-201712

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67910-0N040iARS212,GRS218201501-201712

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67920-0N040iARS212,GRS218201501-201712

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0N030-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#,2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0N030-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#,2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67930-0N040iARS212,GRS218201501-201712

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67940-0N040iARS212,GRS218201501-201712

67917APLATE, REAR DOOR SCUFF, RH

main67917-0N030-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#,2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0N030-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#,2#

7104

90164C0011

main90164-C0011

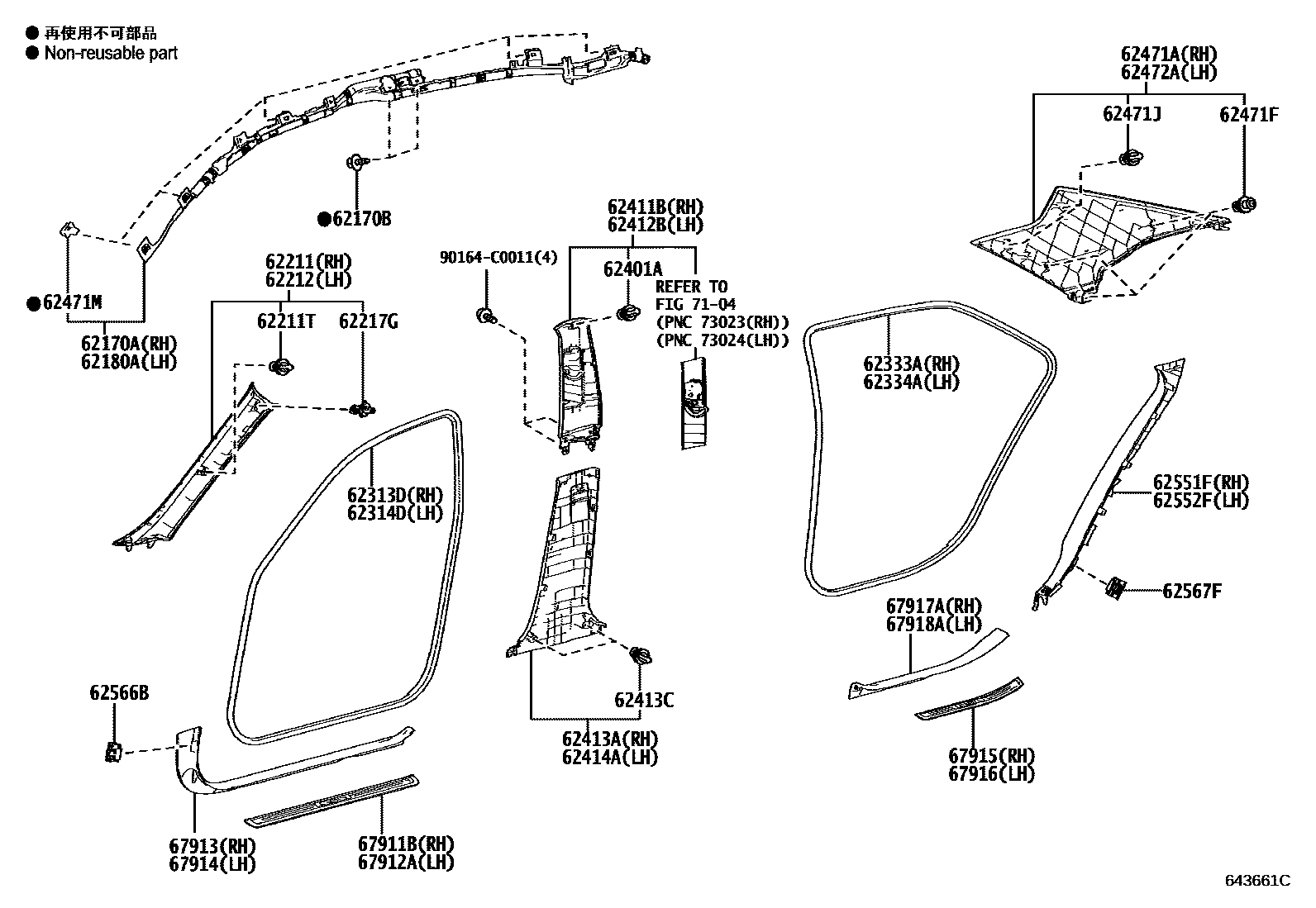

36 parts on this diagram · 1 diagram in section
