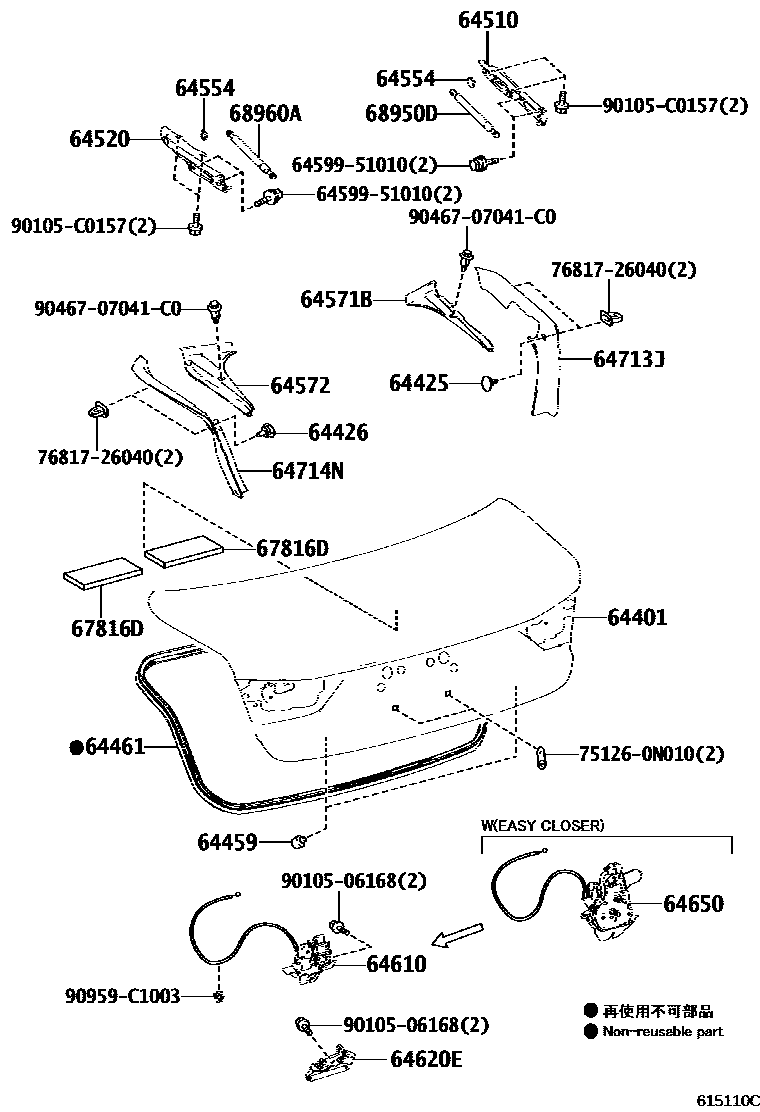

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64425PLUG, LUGGAGE COMPARTMENT DOOR, RH
64426PLUG, LUGGAGE COMPARTMENT DOOR, LH
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64554STOPPER, LUGGAGE DOOR BALANCER
RH
LH
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64650CLOSER ASSY, LUGGAGE DOOR
64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH
64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH
67816DSHEET, BACK DOOR PANEL SILENCER
68950DSTAY ASSY, LUGGAGE DOOR, RH
68960ASTAY ASSY, LUGGAGE DOOR, LH
6459951010BOLT, LUGGAGE DOOR HINGE
main64599-51010
751260N010STAY, REAR LICENSE PLATE BRACKET, LOWER
main75126-0N010
7681726040CLIP, BACK DOOR OUTSIDE GARNISH
main76817-26040
9010506168
main90105-06168
90105C0157
main90105-C0157
9046707041C0
main90467-07041C0
90959C1003
main90959-C1003
25 parts on this diagram · 1 diagram in section
