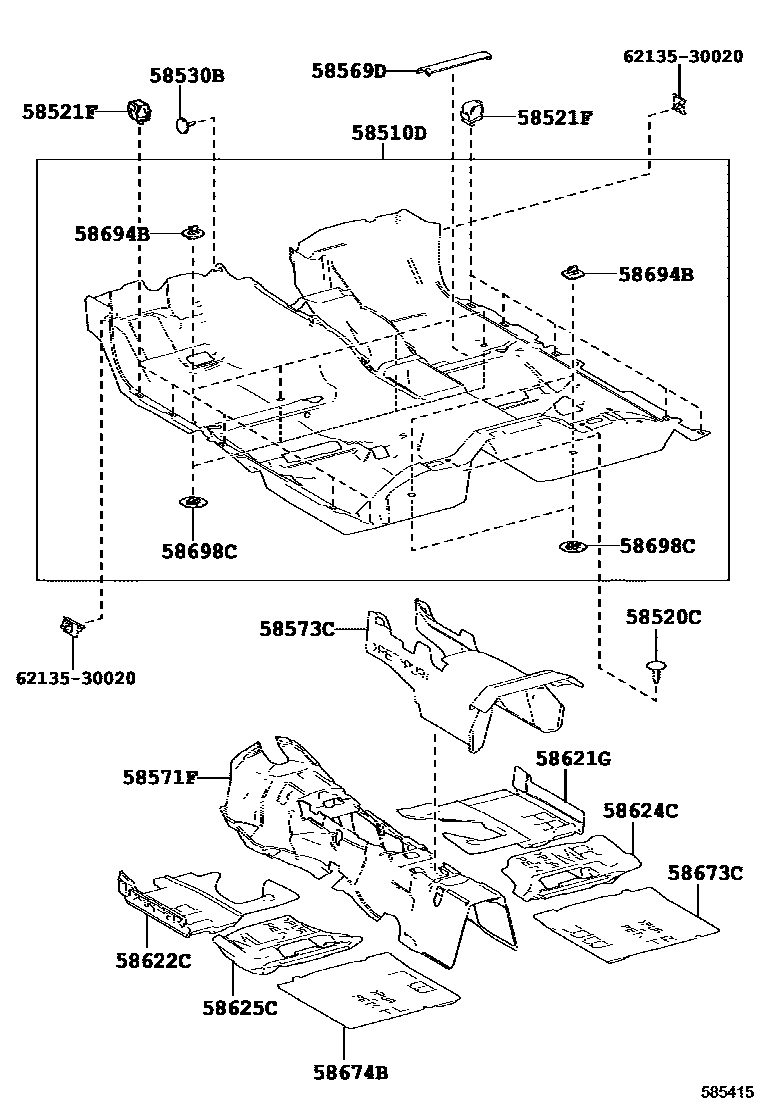

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR MAT

58510DCARPET ASSY, FLOOR, FRONT

main58510-0N050-C0iARS212,GRS218..B; ARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#; BLACK,TRIM0#,2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-C0016-C0×2iARS212,GRS218201501-201712

BLACK

main90467-C0016-C1×2iARS212..B201712-201910

BLACK

58521FHOOK, FLOOR CARPET

main58521-0P020×10iARS212,GRS218201501-201712

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iARS212,GRS218201610-201712

BLACK

main90467-07049-C0iARS212,GRS218201501-201610

BLACK

main90467-C0059-C0iARS212..B201812-201910

BLACK

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-0N010-C0iARS212..P; ARS212..Q,S,U201712

BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#

58571FPAD, FRONT FLOOR, FRONT

main58571-0N030iARS212,GRS218201501-201712

58573CPAD, FRONT FLOOR CENTER

main58573-0N040iARS212,GRS218201501-201712

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-0N020iARS212,GRS218201501-201712

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-0N020iARS212,GRS218201501-201712

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-0N020iARS212,GRS218201501-201712

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-0N020iARS212,GRS218201501-201712

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-0N030iARS212,GRS218201501-201712

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-0N030iARS212,GRS218201501-201712

58694BPLATE, MAT SET, UPPER

main58694-76010×6iARS212,GRS218201501-201712

58698CPLATE, MAT SET, LOWER

main58698-76010×6iARS212,GRS218201501-201712

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

16 parts on this diagram · 2 diagrams in section
