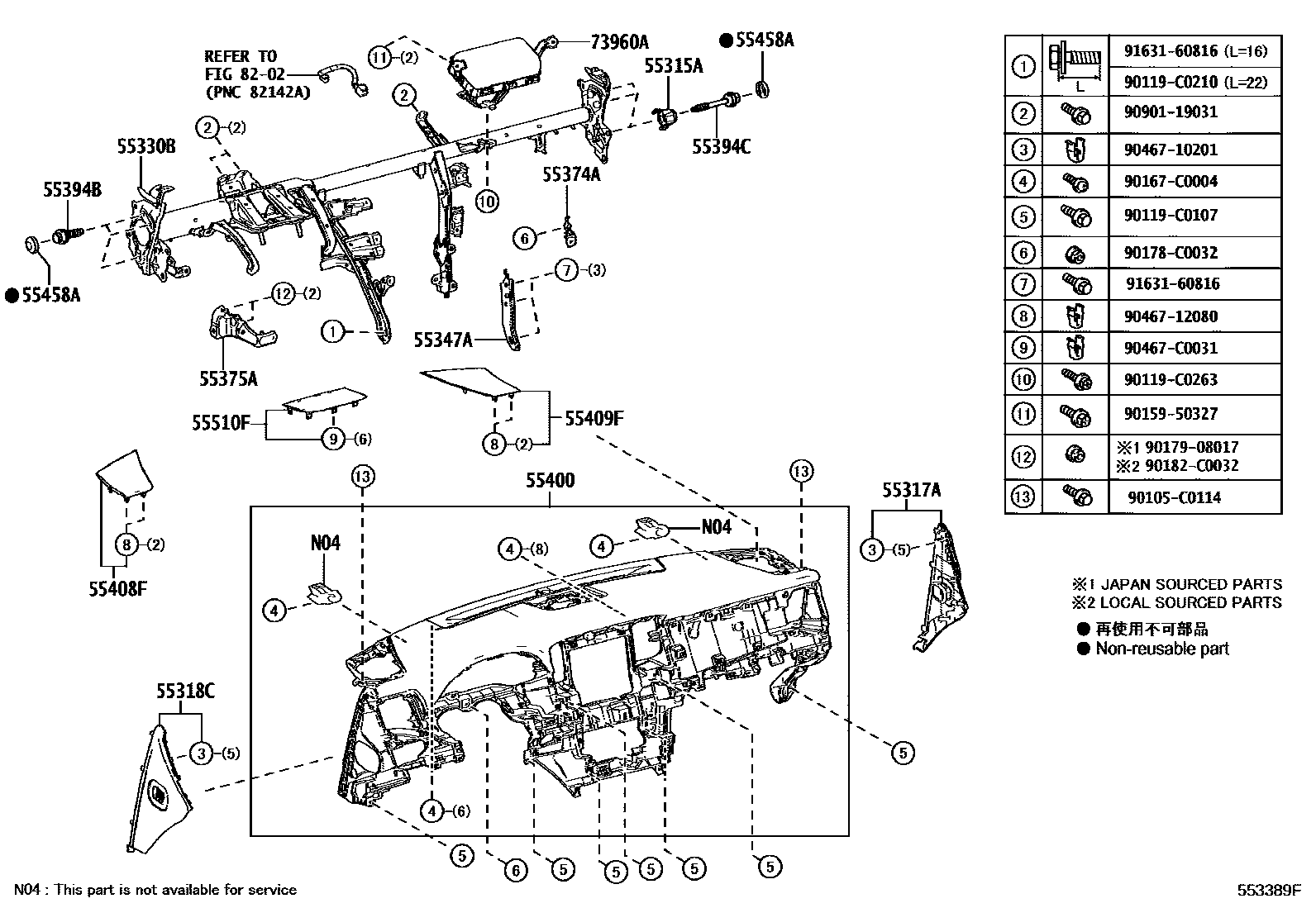

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×3iARS212,GRS218201501-201712

55317APANEL, INSTRUMENT SIDE, RH

main55317-0N040-C0iARS212..P; ARS212..Q,S,U201712

BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0N040-C0iARS212,GRS218..B; ARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#; BLACK,TRIM0#,2#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0N040iARS212,GRS218..Q,U201501-201712

main55330-0N050iARS212,GRS218..B,S201501-201712

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55348-0N010iARS212,GRS218201501-201712

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55375-0N030iARS212,GRS218201501-201712

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55374-0N030iARS212,GRS218201501-201712

55394BBOLT, INSTRUMENT PANEL

main55394-22030×3iARS212,GRS218201501-201712

55394CBOLT, INSTRUMENT PANEL

main55394-22040×3iARS212,GRS218201501-201712

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-0N020-C0iARS212,GRS218..B; ARS212,GRS218..Q,S,U201501-201511

BLACK,TRIM0#; BLACK,TRIM0#,2#

main55400-0N030-C0iARS212..P; ARS212..Q,S,U201712

BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-0N050-C0iARS212,GRS218..B; ARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#; BLACK,TRIM0#,2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-0N050-C0iARS212,GRS218..B; ARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM0#; BLACK,TRIM0#,2#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-0E010×6iARS212,GRS218201612-201712

main55458-22110×6iARS212,GRS218201501-201612

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-0N040-C0iARS212,GRS218..B; ARS212..Q;GRS218..Q,S201501-201712

BLACK,TRIM0#; BLACK,TRIM0#,2#

main55510-0N050-C0iARS212,GRS218..U201501-201712

BLACK,TRIM0#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0N030iARS212201712-201806

main73960-0N050iARS212..B201807-201910

8202WIRING & CLAMP

→ Go to FIG 82-02

90105C0114

main90105-C0114

90119C0107

main90119-C0107

90119C0210

main90119-C0210

90119C0263

main90119-C0263

9015950327

main90159-50327

90167C0004

main90167-C0004

90178C0032

main90178-C0032

9017908017

main90179-08017

90182C0032

main90182-C0032

9046710201

main90467-10201

9046712080

main90467-12080

90467C0031

main90467-C0031

9090119031

main90901-19031

9163160816

main91631-60816

30 parts on this diagram · 4 diagrams in section
