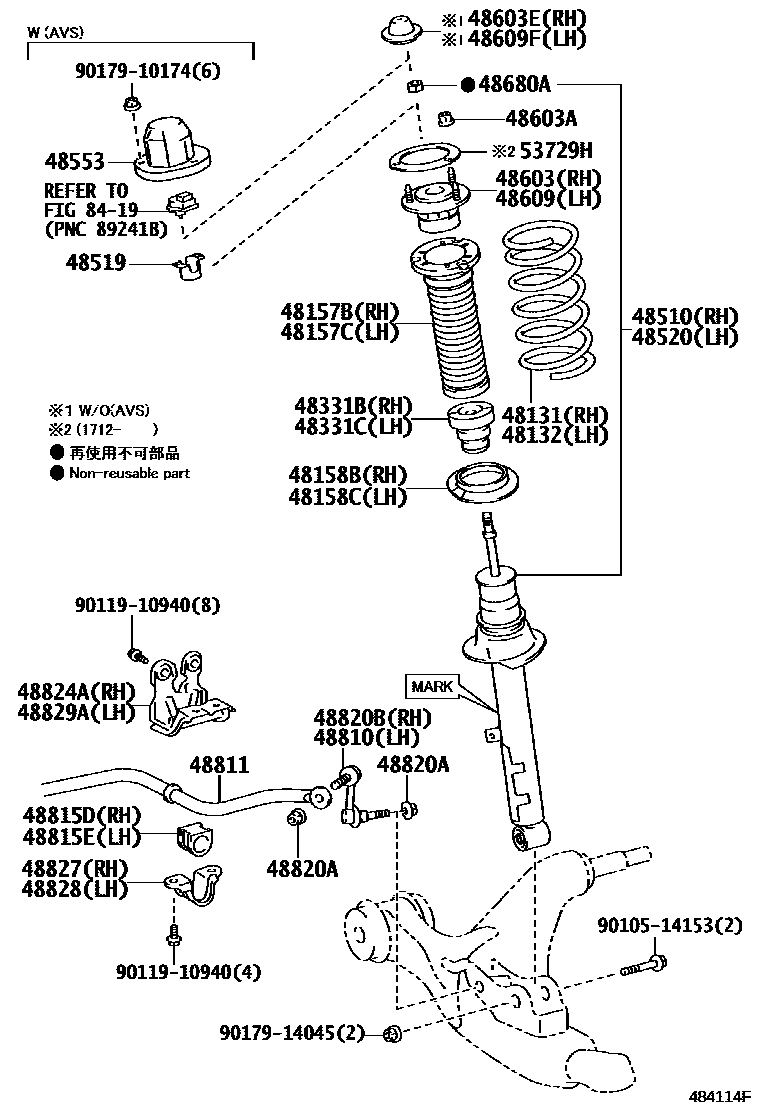

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0N060iGRS218..U201501-201712

main48131-0N070iARS212..B201712-201910

48132SPRING, FRONT COIL, LH

main48131-0N060iGRS218..U201501-201712

main48131-0N070iARS212;GRS218..B,Q,S201501-201712

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0N020iARS212,GRS218201501-201712

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0N020iARS212,GRS218201501-201712

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-0N010iARS212,GRS218201501-201712

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-0N010iARS212,GRS218201501-201712

48331BBUMPER, FRONT SPRING, RH

main48331-30230iARS212,GRS218201501-201712

48331CBUMPER, FRONT SPRING, LH

main48331-30230iARS212..P,Q,S,U201712

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z185iARS212..U201712

MARK 48510-0N070

main48510-8Z186iGRS218..B,Q,S201501-201712

MARK 48510-0N060

main48510-8Z258iARS212..B201712-201910

MARK 48510-0N080

48519BRACKET, ACTUATOR SUPPORT, FRONT

main48519-30030×2iARS212,GRS218..U201501-201712

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z067iARS212..U201712

MARK 48520-0N070

main48520-8Z068iGRS218..B,Q,S201501-201712

MARK 48520-0N060

main48520-8Z119iARS212..B201712-201910

MARK 48520-0N080

48553CAP, SHOCK ABSORBER, UPPER

main48553-30100×2iARS212,GRS218..U201501-201712

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0P040iARS212..B201712-201910

main48609-0P050iARS212,GRS218..U201501-201712

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6iARS212,GRS218201501-201712

48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)

main90950-C1020iARS212..P,Q,S201712

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0P040iARS212..B201712-201910

main48609-0P050iARS212,GRS218..U201501-201712

48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)

main90950-C1020iARS212,GRS218..B,Q,S201501-201712

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-12002×2iARS212,GRS218201501-201712

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0N010iARS212..P,Q,S,U201712

48811BAR, STABILIZER, FRONT

main48811-0N060iARS212,GRS218201501-201712

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-0N060iARS212,GRS218201501-201712

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-0N060iARS212,GRS218201501-201712

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-C0018×4iARS212,GRS218201501-201712

(L)

main94151-21241×4iARS212..B201712-201910

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0N010iARS212,GRS218201501-201712

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-0N010iARS212..P,Q,S,U201712

(L)

main48809-30060iARS212..P,Q,S,U201712

(J)

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-30150iARS212..P,Q,S,U201712

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-30150iARS212..B201712-201910

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-0N010iARS212..B201712-201910

(L)

main48809-30060iARS212..B201712-201910

(J)

53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-53020×2iARS212..P,Q,S,U201712

8419

9010514153

main90105-14153

9011910940

main90119-10940

9017910174

main90179-10174

9017914045

main90179-14045

34 parts on this diagram · 1 diagram in section
