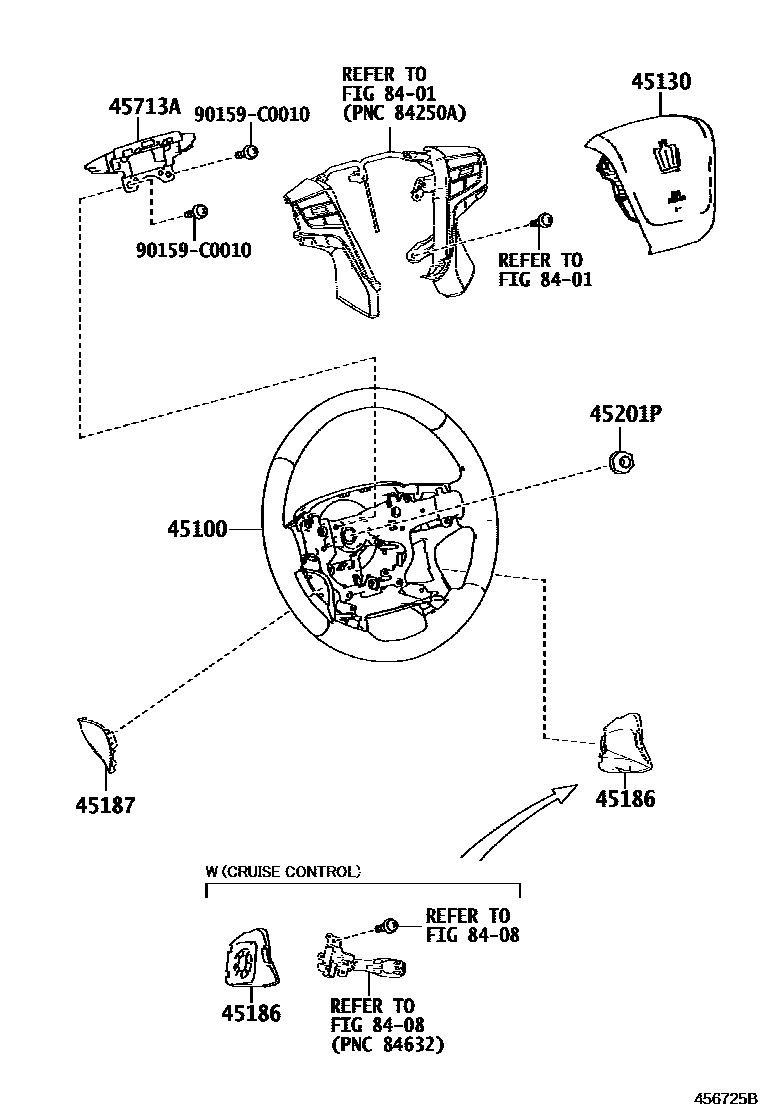

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,BLACK,TRIM0#
4-SPOKE,LEATHER,BLACK,TRIM0#,2#
4-SPOKE,LEATHER,BLACK,TRIM0#,2#; 4-SPOKE,LEATHER,BLACK,TRIM0#,2#,3#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,3#
BLACK,TRIM0#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#; BLACK,TRIM0#,2#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
90159C0010
main90159-C0010
9 parts on this diagram · 1 diagram in section
