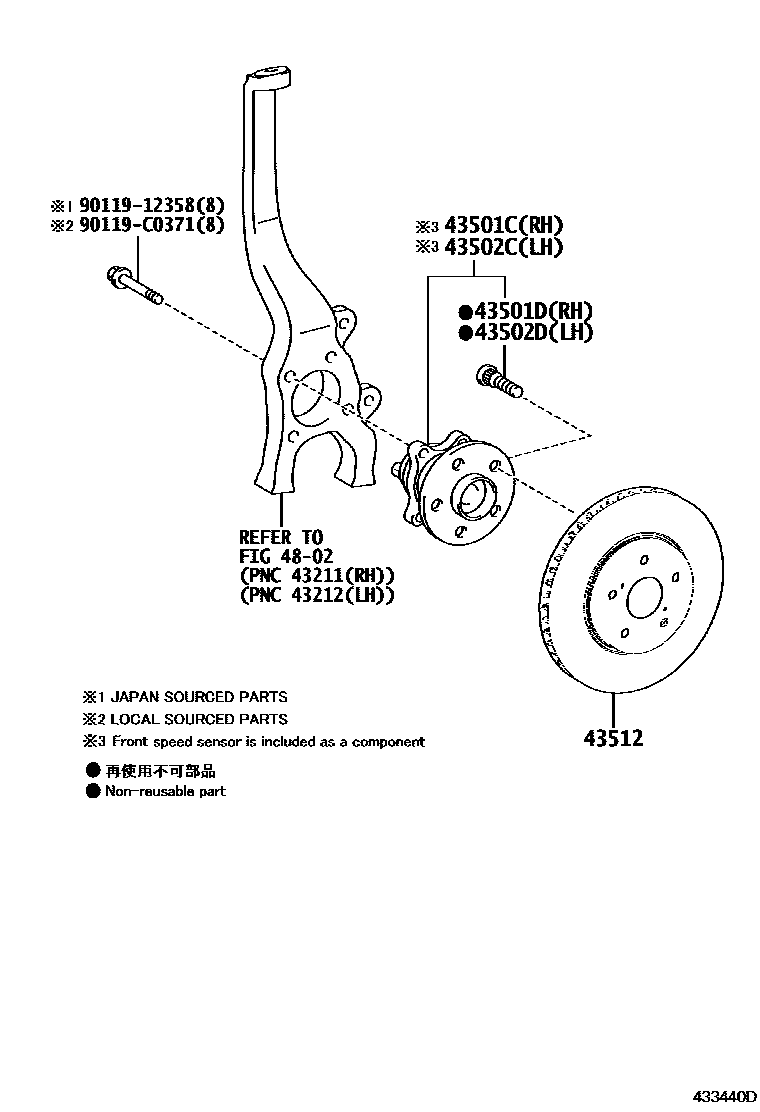

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0N020iGRS218201501-201503

main43550-0N021iARS212,GRS218201504-201910

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iARS212..P,Q,S,U201504-201910

main90942-02070iGRS218201501-201503

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0N020iGRS218201501-201503

main43550-0N021iARS212,GRS218201504-201910

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iARS212..P,Q,S,U201504-201910

main90942-02070iGRS218201501-201503

43512DISC, FRONT

main43512-0N040iARS212,GRS218201501-201910

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011912358

main90119-12358

90119C0371

main90119-C0371

8 parts on this diagram · 1 diagram in section
