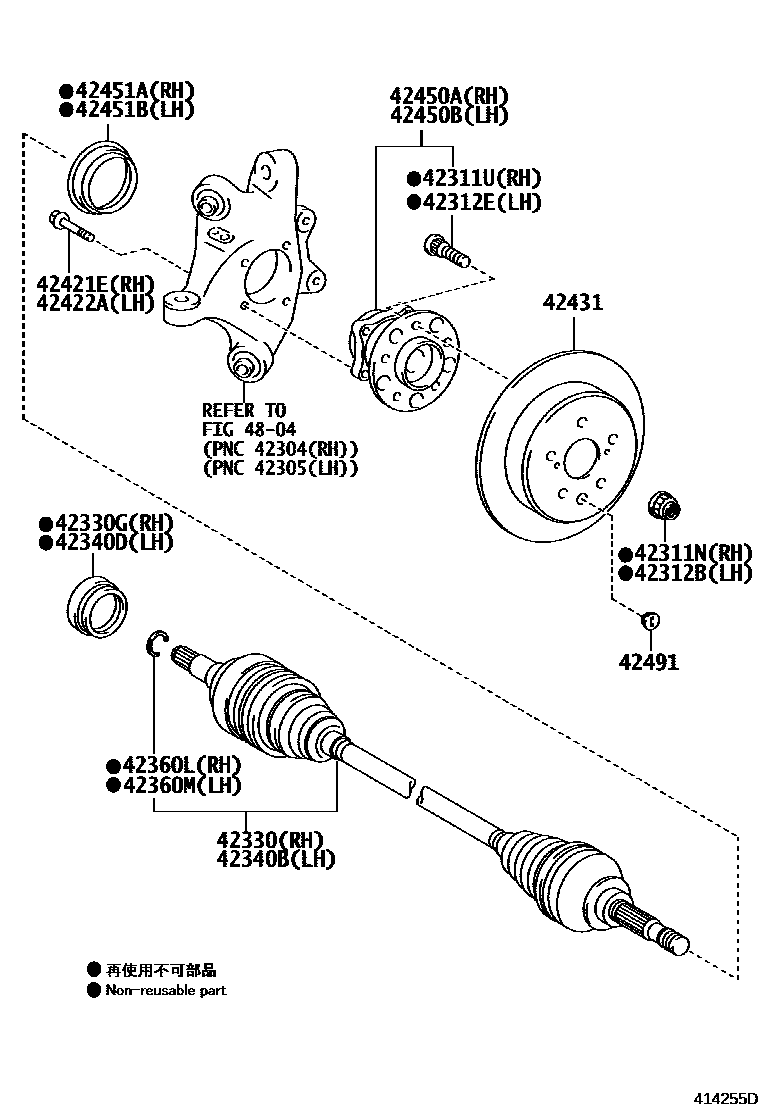

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iARS212..B201501-201910

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iARS212..P,Q,S,U201504-201910

main90942-02070iGRS218201501-201503

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iARS212,GRS218201501-201910

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iARS212,GRS218201504-201910

main90942-02070iGRS218201501-201503

42330SHAFT ASSY, REAR DRIVE, RH

main42330-0N023iGRS218201501-201712

main42330-0N030iARS212..B201508-201910

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-43009iGRS218201501-201712

main90311-47018iARS212201508-201910

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-0N023iGRS218201501-201712

main42340-0N030iARS212201508-201910

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-43009iGRS218201501-201712

main90311-47019iARS212201508-201910

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iARS212,GRS218201501-201910

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iARS212..B201501-201910

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12009iARS212,GRS218201501-201910

(J)

main90110-C0005iARS212,GRS218201501-201910

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12009iARS212..B201501-201910

(J)

main90110-C0005iARS212..B201501-201910

(L)

42431DISC, REAR

main42431-0P010iARS212,GRS218201501-201910

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0N010iGRS218201501-201503

main42410-0N011iARS212,GRS218201504-201910

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0N010iGRS218201501-201503

main42410-0N011iARS212,GRS218201504-201910

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-30020iARS212,GRS218201501-201910

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-30020iARS212,GRS218201501-201910

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iARS212,GRS218201501-201910

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

19 parts on this diagram · 1 diagram in section
