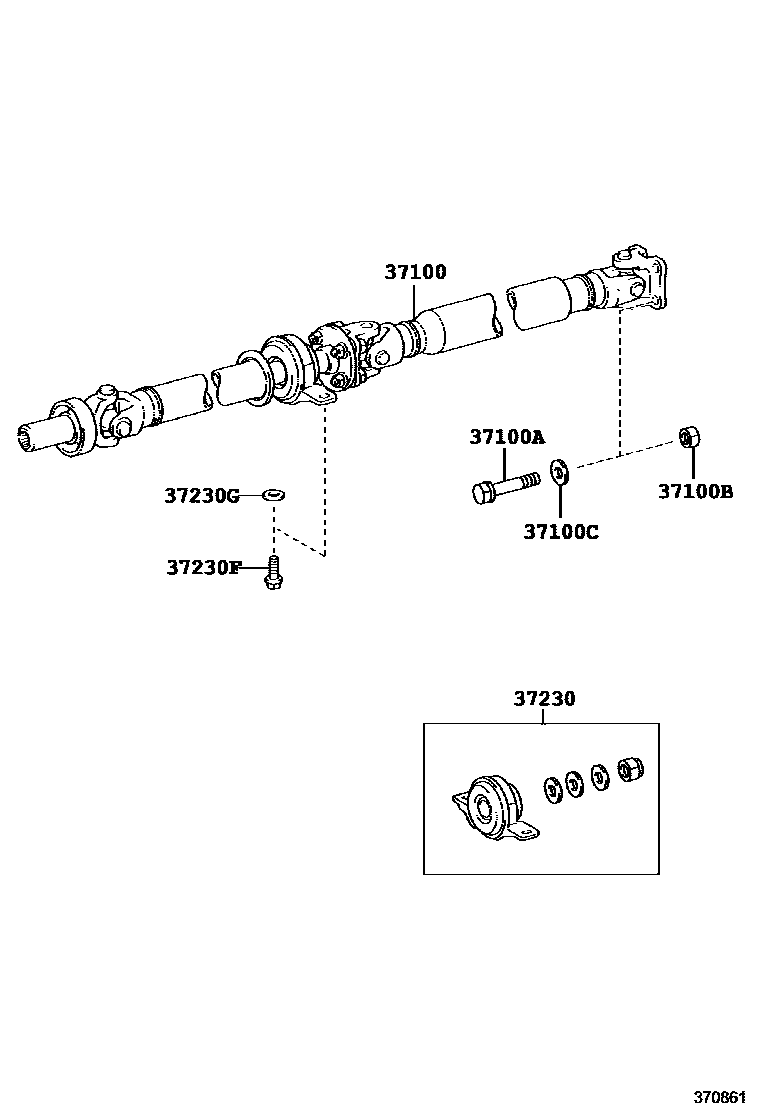

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-0N020iGRS218201501-201712

main37100-30B00iARS212..B201712-201910

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-12265×3iARS212..B201712-201910

(J)

main90105-C0163×4iGRS218201501-201712

main90105-C0165×3iARS212..B201712-201910

(L)

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90178-C0086×4iGRS218201501-201712

main90178-C0104×3iARS212201508-201712

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90560-10102×4iGRS218201501-201712

main90560-12059×3iARS212..B201712-201910

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-30181iARS212..P,Q,S,U201712

main37230-39095iGRS218201501-201712

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-C0189×2iARS212..B201712-201910

L=44

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008iARS212..B201712-201910

T=4.5

main90201-10017iGRS218201501-201712

T=9.0

main90201-10033iARS212..P,Q,S,U201712

T=6.5

main90201-10034iARS212..B201712-201910

T=11.0

main90201-10106iARS212201508-201712

T=2.0

7 parts on this diagram · 2 diagrams in section
