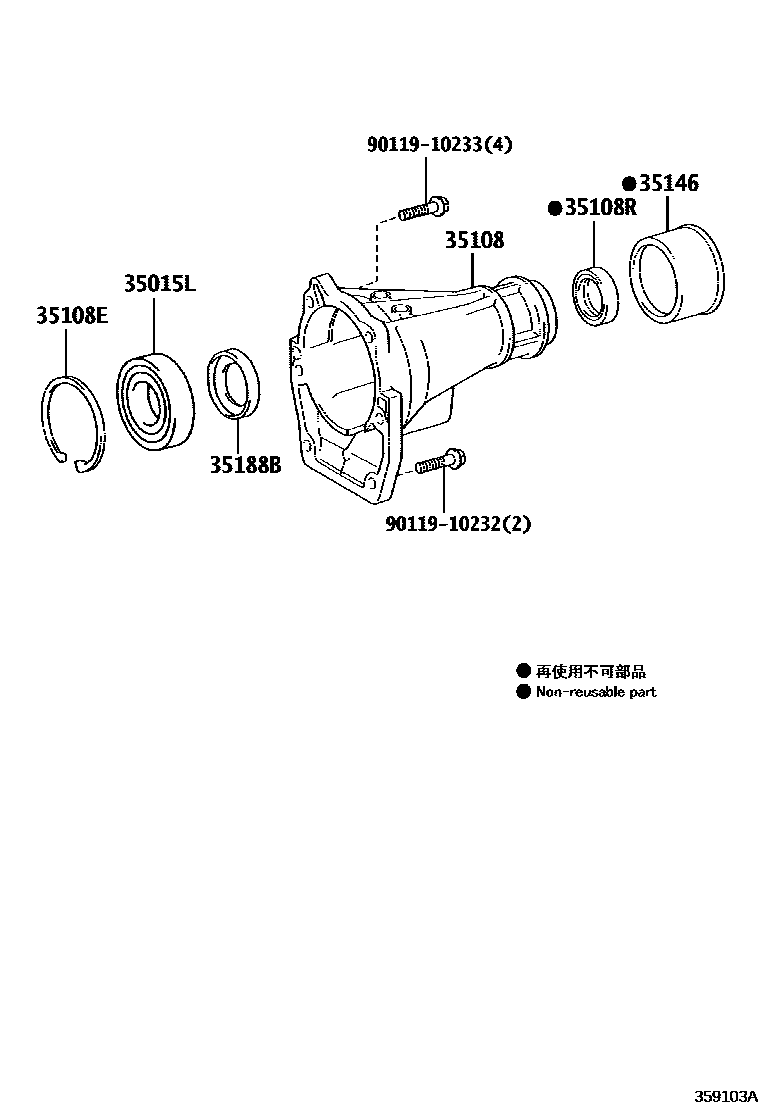

EXTENSION HOUSING (ATM)

35015LBEARING, RADIAL BALL(FOR TRANSMISSION CASE ADAPTER)

main90363-34006iGRS218201609

main90363-C0006iGRS218201501-201609

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-0P010iGRS218201501-201609

main35108-30260iGRS218201609

35108ERING, HOLE SNAP (FOR ATM EXTENSION HOUSING)

main90521-66006iGRS218201501

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40045iGRS218201508

main90311-C0021iGRS218201501-201507

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-0P010iGRS218201501-201609

main33146-30020iGRS218201609

35188BRETAINER, EXTENSION HOUSING BUSH

main35188-0P010iGRS218201501-201609

main35188-35020iGRS218201609

9011910232

main90119-10232

9011910233

main90119-10233

8 parts on this diagram · 1 diagram in section
