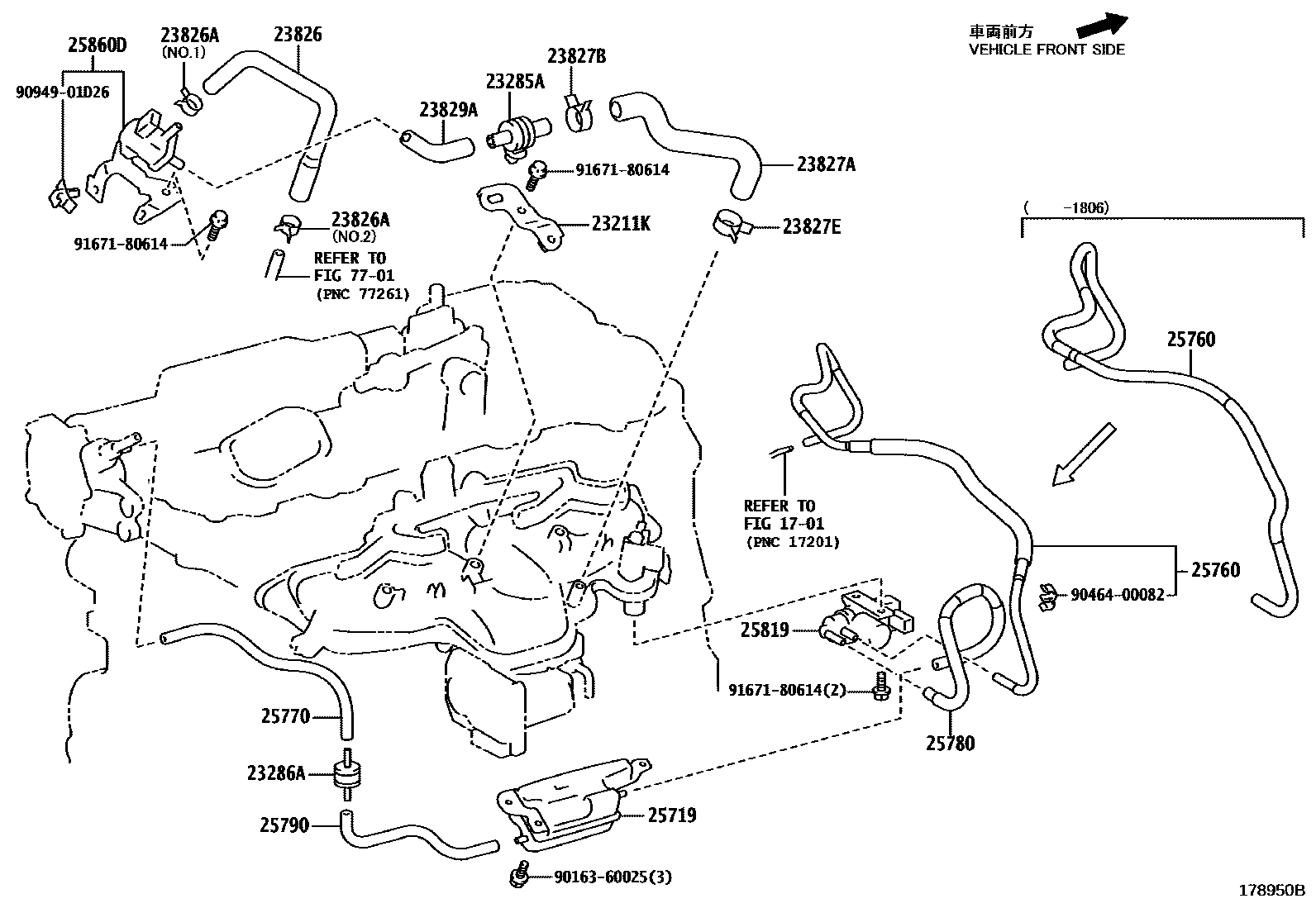

VACUUM PIPING
1701MANIFOLD
23211KBRACKET
23285AVALVE, CHECK, NO.1
23286AVALVE, CHECK, NO.2
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
(L),NO.2:SEE ILLUST
NO.1:REFER ILLUST.
(J),NO.2:SEE ILLUST
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.2
23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
23829AHOSE, FUEL VAPOR FEED
25719TANK, VACUUM SURGE
25760HOSE ASSY, VACUUM TRANSMITTING
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
25790HOSE ASSY, VACUUM TRANSMITTING, NO.4
25819VALVE ASSY, VACUUM REGULATING
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
7701FUEL TANK & TUBE
9016360025
main90163-60025
9046400082
main90464-00082
9094901D26
main90949-01D26
9167180614
main91671-80614
23 parts on this diagram · 2 diagrams in section
