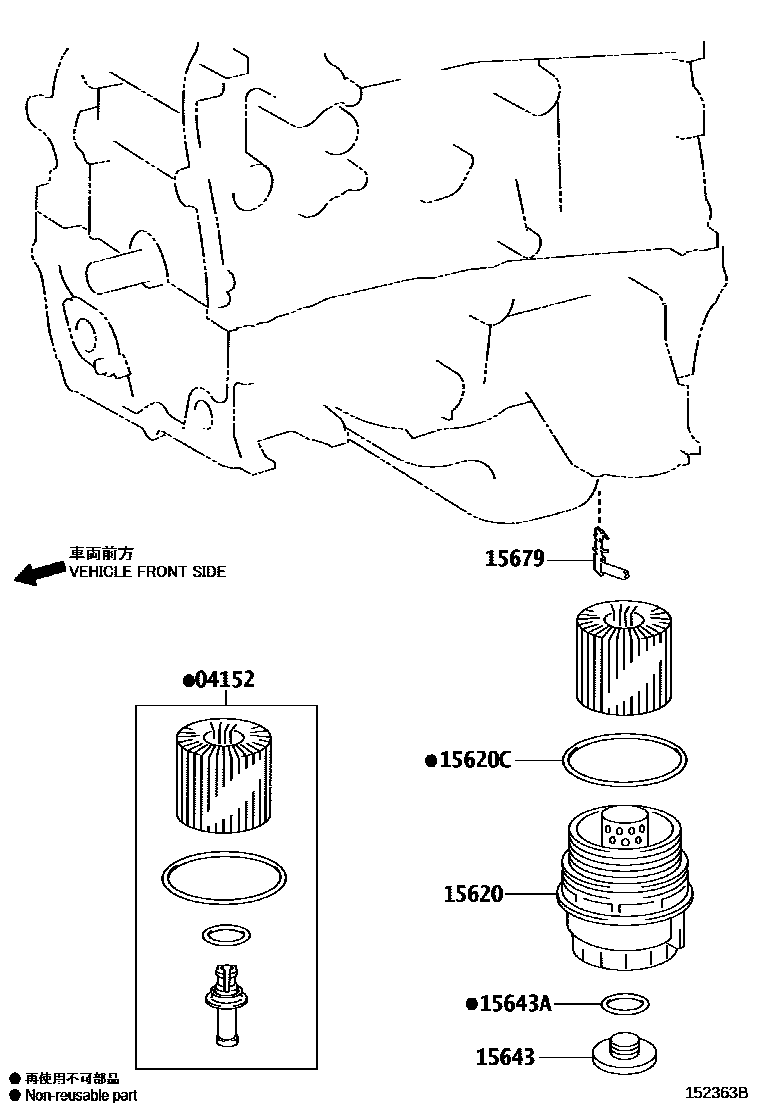

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-0P010i5GRFE..GRS218201501

(L)

main04152-31080i5GRFE..GRS218201501

(J)

main04152-31090i8ARFTS..ARS212..B201508-201910

15620CAP ASSY, OIL FILTER

main15620-31040i5GRFE..GRS218201501

main15620-36020i8ARFTS..ARS212201508-201910

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i8ARFTS..ARS212..B201501-201910

15643PLUG, OIL FILTER DRAIN

main15643-31050i8ARFTS..ARS212201508-201910

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i8ARFTS..ARS212201508-201910

15679CLIP, OIL FILTER BRACKET

main15679-37011i8ARFTS..ARS212201508-201910

6 parts on this diagram · 2 diagrams in section
