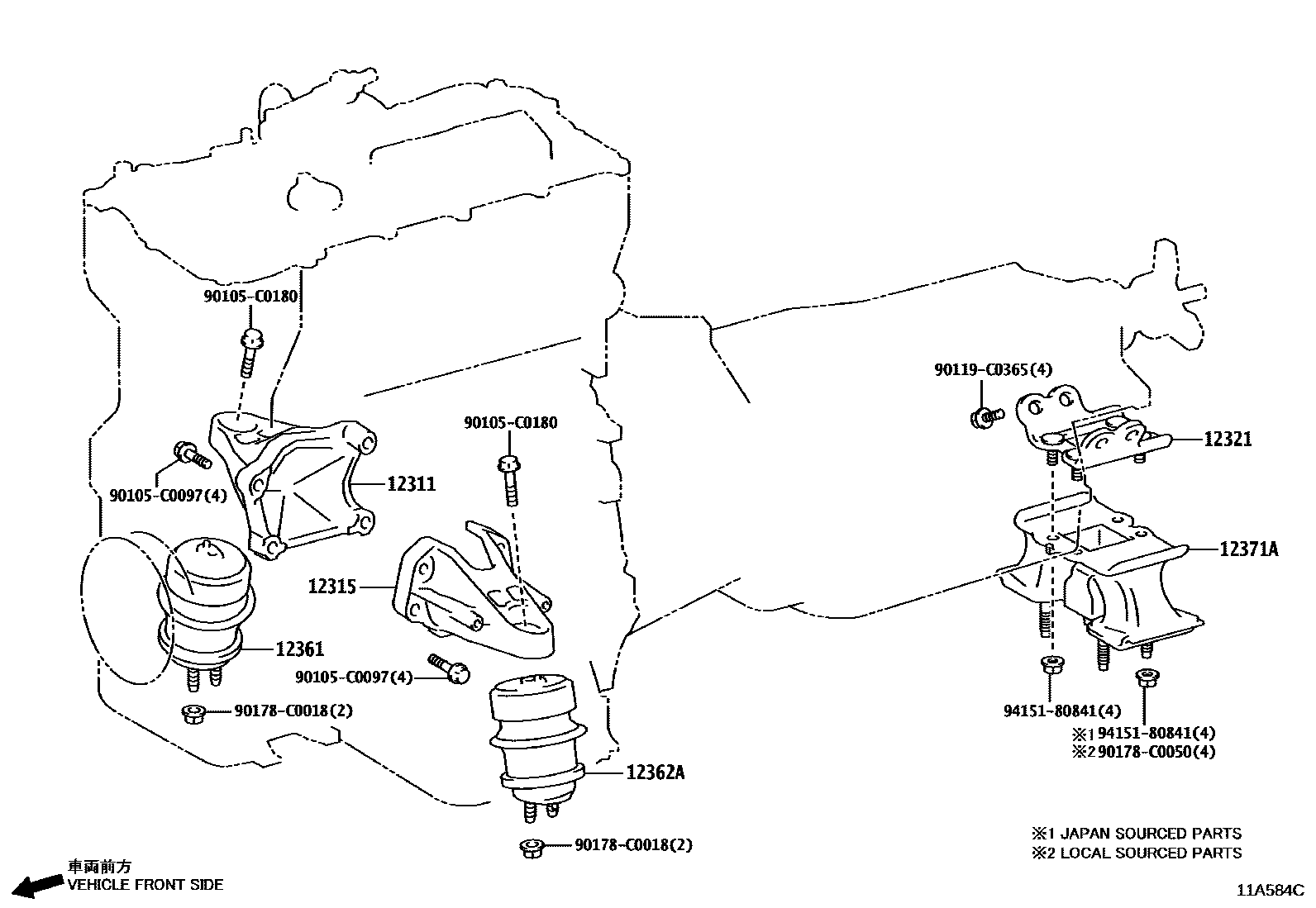

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0P040i5GRFE..GRS218201501

main12311-36130i8ARFTS..ARS212201508-201712

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-0P010i5GRFE..GRS218201501

main12315-36040i8ARFTS..ARS212..B201712-201910

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-0V060i8ARFTS..ARS212201508-201712

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0P120i5GRFE..GRS218201501

main12361-0V041i8ARFTS..ARS212201508-201712

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-0P070i5GRFE..GRS218201501

main12362-0V051i8ARFTS..ARS212201508-201712

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0P090i5GRFE..GRS218201501

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0V070i8ARFTS..ARS212201508-201712

90105C0097

main90105-C0097

90105C0180

main90105-C0180

90119C0365

main90119-C0365

90178C0018

main90178-C0018

90178C0050

main90178-C0050

9415180841

main94151-80841

13 parts on this diagram · 2 diagrams in section
