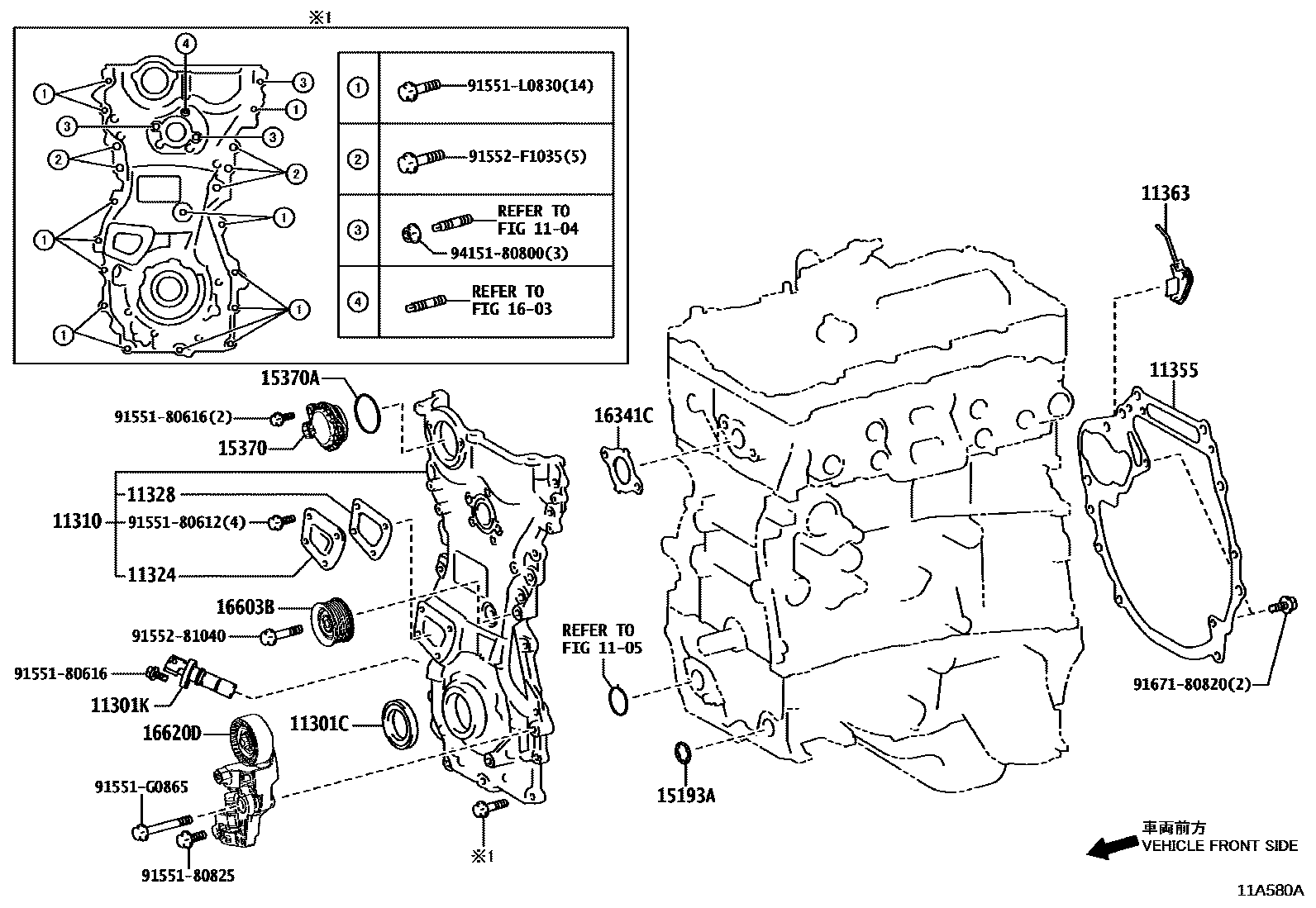

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42051i8ARFTS..ARS212201508-201712

main90311-C0034i5GRFE..GRS218201501

11301KSENSOR, CRANK POSITION

main90919-05088i8ARFTS..ARS212..P,Q,S,U201712

11310COVER ASSY, TIMING CHAIN

main11310-36080i8ARFTS..ARS212201508-201712

11324PLATE, TIMING CHAIN COVER

main11324-31020i5GRFE..GRS218201501

main11324-36020i8ARFTS..ARS212201508-201712

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0P030i5GRFE..GRS218201501

main11328-36030i8ARFTS..ARS212..B201712-201910

11355PLATE, REAR END

main11355-36020i8ARFTS..ARS212201508-201712

11363COVER, FLYWHEEL SIDE

main11363-36010i8ARFTS..ARS212..B201712-201910

15193AGASKET, OIL PUMP

main15197-36010i8ARFTS..ARS212201508-201712

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-36010i8ARFTS..ARS212201508-201712

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-50003i8ARFTS..ARS212201508-201712

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16341CGASKET, WATER OUTLET

main16341-36010i8ARFTS..ARS212201508-201712

16603BPULLEY SUB-ASSY, IDLER

main16603-36010i8ARFTS..ARS212201508-201712

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-36061i8ARFTS..ARS212201508-201712

9155180612

main91551-80612

9155180616

main91551-80616

9155180825

main91551-80825

91551G0865

main91551-G0865

91551L0830

main91551-L0830

9155281040

main91552-81040

91552F1035

main91552-F1035

9167180820

main91671-80820

9415180800

main94151-80800

25 parts on this diagram · 2 diagrams in section
