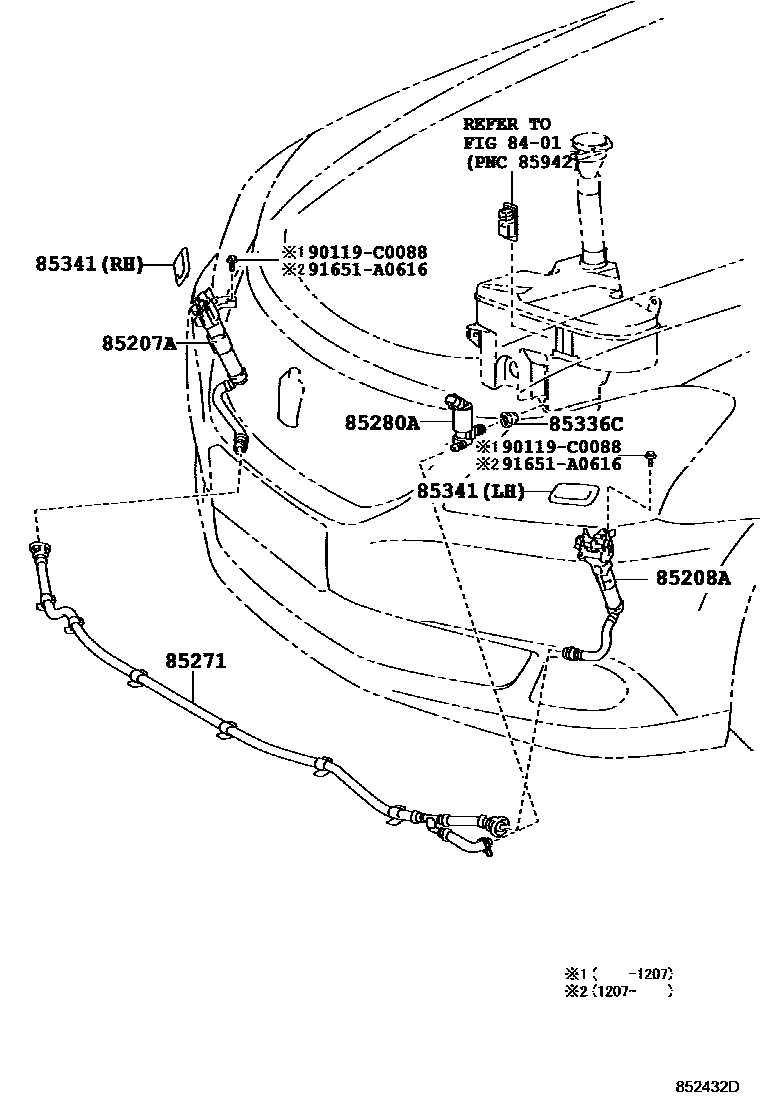

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85336CPACKING, HEADLAMP CLEANER MOTOR
85341NOZZLE, HEADLAMP CLEANER WASHER
WHITE PEARL CS.,062,RH
SILVER ME.,1G7,RH
ICE TITANIUM M.M.,1H4,RH
BLACK,202,RH
BLACKISH RED MC.,3R0,RH
DK.BLUE MC.,8S6,RH
WHITE PEARL CS.,062,LH
SILVER ME.,1G7,LH
ICE TITANIUM M.M.,1H4,LH
BLACK,202,LH
BLACKISH RED MC.,3R0,LH
DK.BLUE MC.,8S6,LH
WHITE PEARL CS.,062,RH
SILVER ME.,1G7,RH
ICE TITANIUM M.M.,1H4,RH
BLACK,202,RH
BLACKISH RED MC.,3R0,RH
DK.BLUE MC.,8S6,RH
WHITE PEARL CS.,062,LH
SILVER ME.,1G7,LH
ICE TITANIUM M.M.,1H4,LH
BLACK,202,LH
BLACKISH RED MC.,3R0,LH
DK.BLUE MC.,8S6,LH
90119C0088
main90119-C0088
91651A0616
main91651-A0616
9 parts on this diagram · 2 diagrams in section
