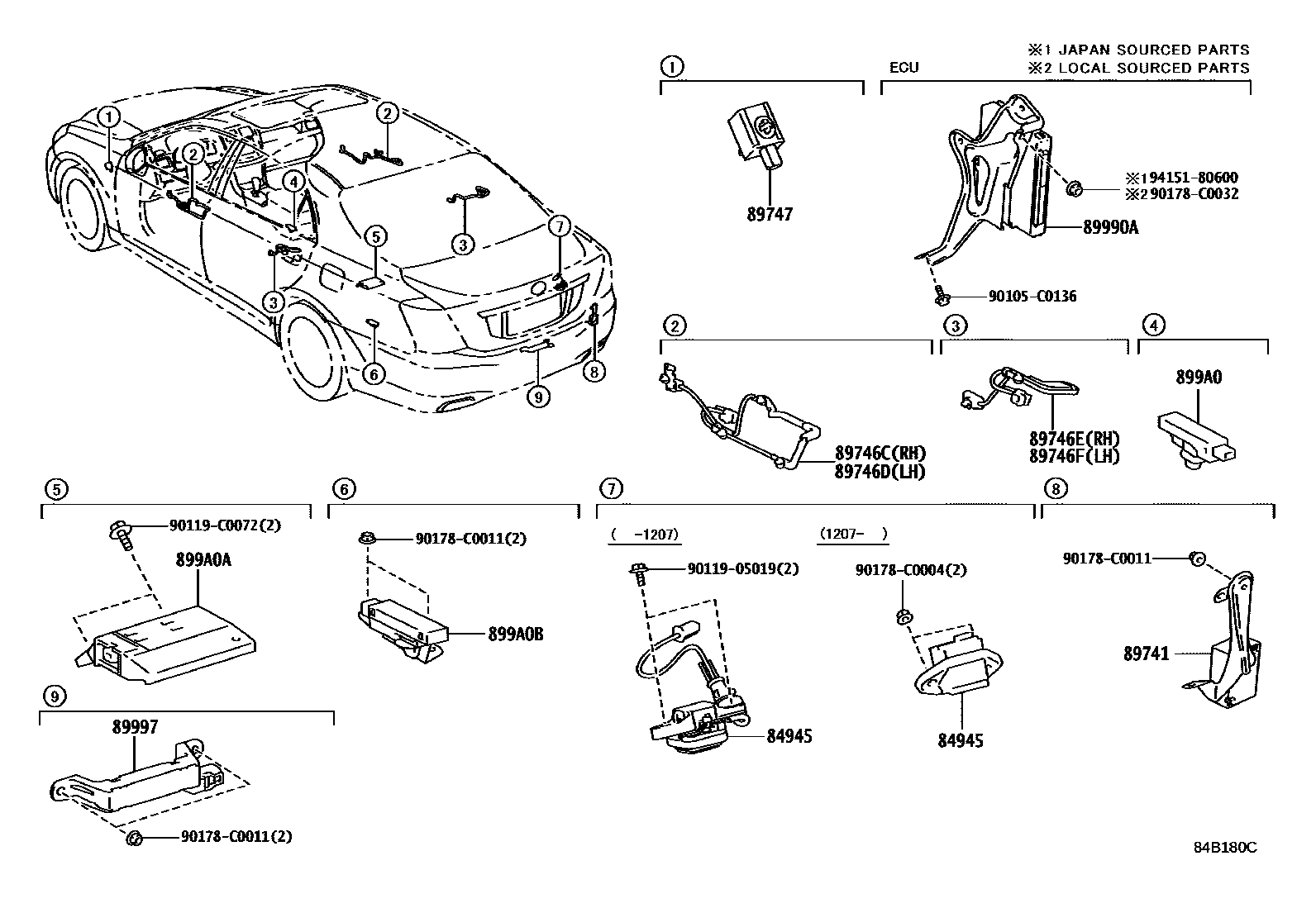

WIRELESS DOOR LOCK

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-0N010iGRS20#,UZS200200912-201207

main84945-0P020iGRS20#201207

89741RECEIVER, DOOR CONTROL

main89740-0N010iGRS20#,UZS200200912-201108

main89740-0N030iGRS20#,UZS200201108-201110

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main82155-0N020iGRS20#201207

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main82156-0N030iGRS20#,UZS200200912-201207

89746EHARNESS, ELECTRICAL KEY WIRE, NO.3

main82157-0N020iGRS20#,UZS200200912-201207

89746FHARNESS, ELECTRICAL KEY WIRE, NO.4

main82158-0N020iGRS20#,UZS200200912-201207

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGRS20#,UZS200200912-201207

89990ACOMPUTER ASSY, SMART KEY

main89990-0N010iGRS20#,UZS200200912-201207

89997ANTENNA, ELECTRICAL KEY

main89997-02060iGRS20#201408-201501

(L)

main89997-30070iGRS20#,UZS200200912-201207

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0N010iGRS20#,UZS200200912-201207

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-0P010iGRS20#,UZS200200912-201207

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-0N030iGRS20#,UZS200200912-201207

90105C0136

main90105-C0136

9011905019

main90119-05019

90119C0072

main90119-C0072

90178C0004

main90178-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
