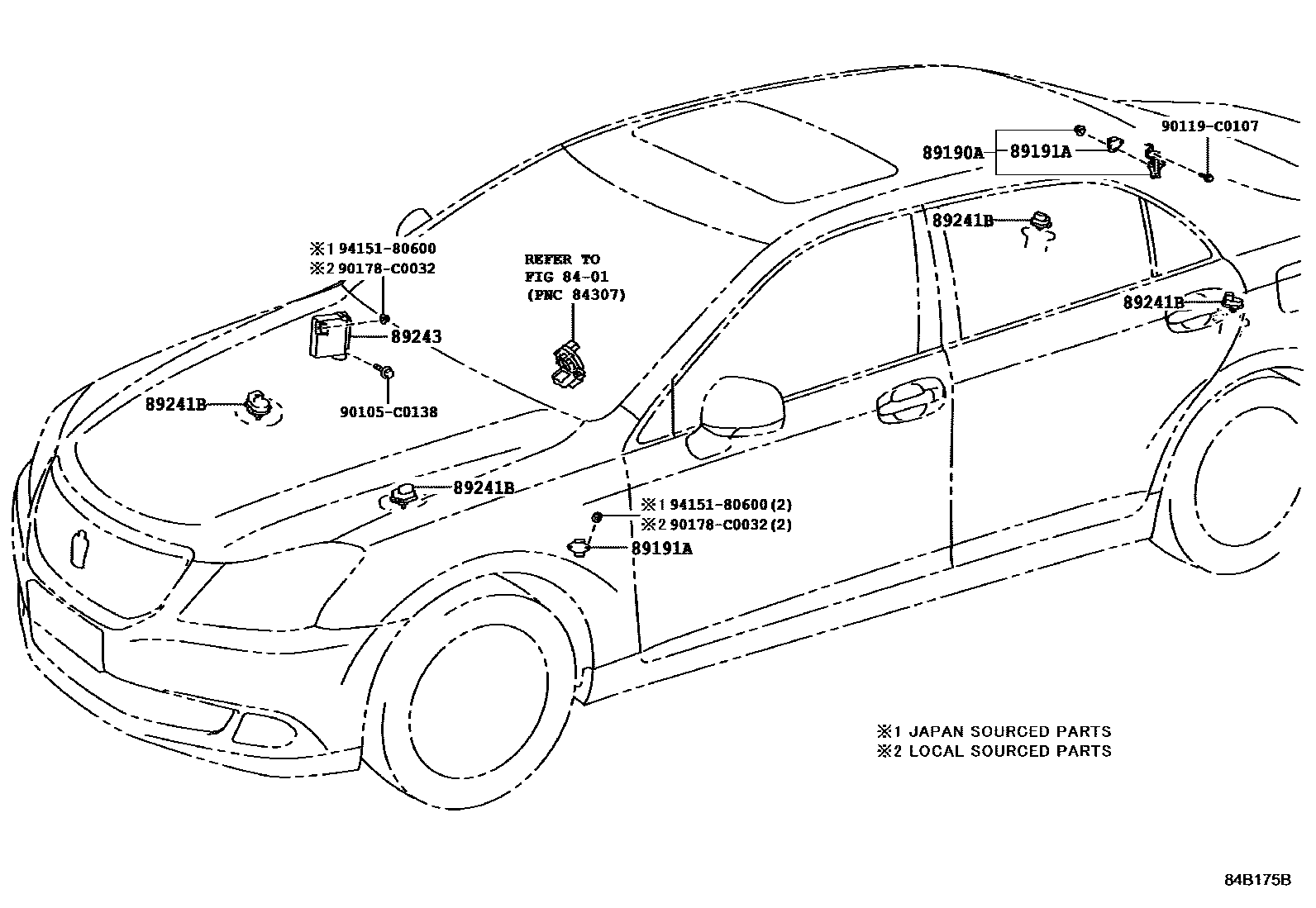

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89190ASENSOR ASSY, ACCELERATION

main89190-30050iGRS202200912-201207

89191ASENSOR, ACCELERATION

main89191-22020iGRS202200912-201207

89241BACTUATOR, ABSORBER CONTROL

main89241-30040iGRS202,UZS200200912-201102

main89241-30041iGRS202201103-201501

89243COMPUTER, ABSORBER CONTROL

main89243-30190iGRS202200912-201501

90105C0138

main90105-C0138

90119C0107

main90119-C0107

90178C0032

main90178-C0032

9415180600

main94151-80600

9 parts on this diagram · 2 diagrams in section
