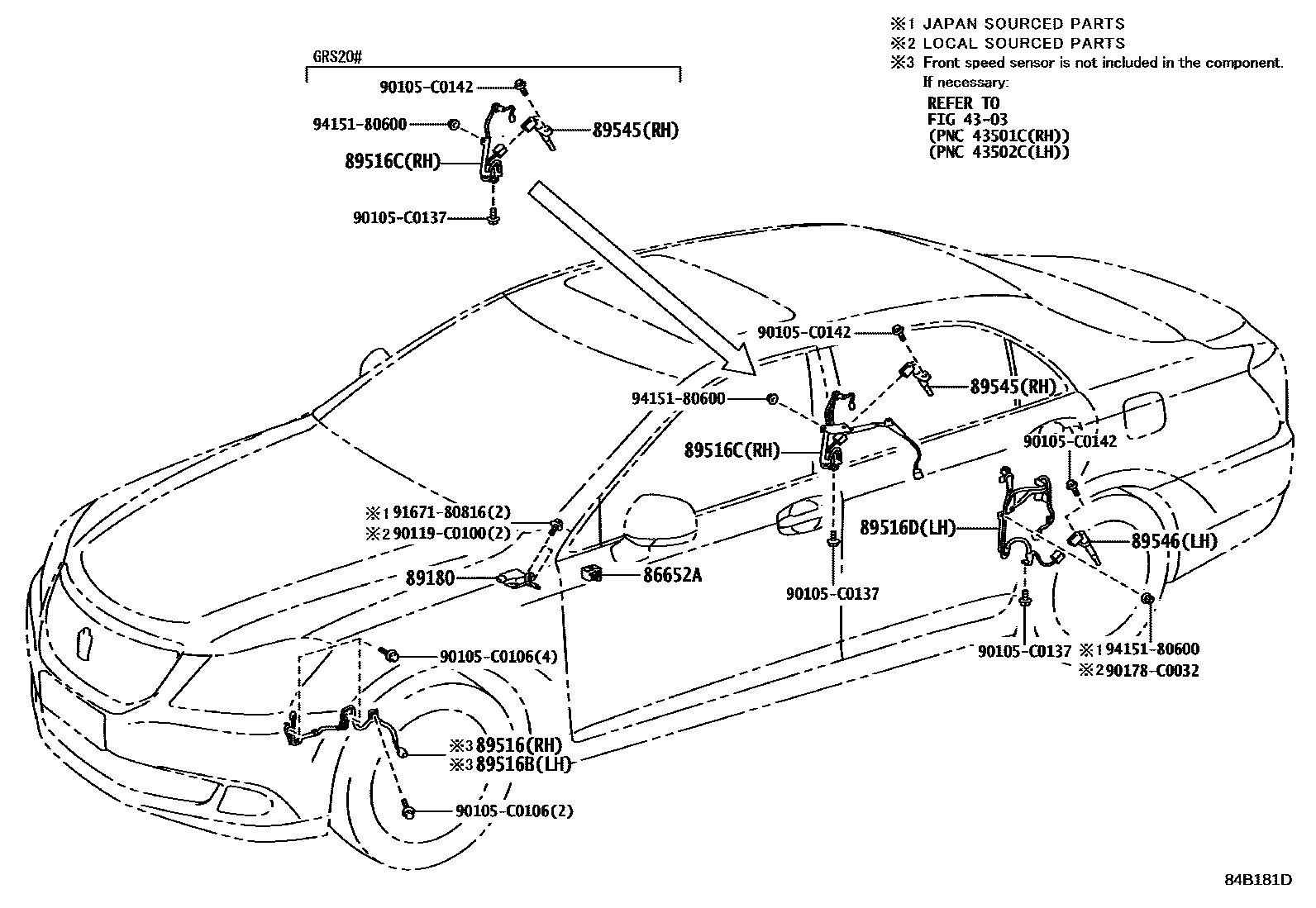

ABS & VSC

4303FRONT AXLE HUB

→ Go to FIG 43-03

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iGRS20#200912-201207

89180SENSOR ASSY, YAWRATE

main89180-30090iGRS20#,UZS200200912-201207

89516WIRE, SKID CONTROL SENSOR

main89516-0N010iGRS20#200912-201408

main89516-0N011iGRS20#201409-201501

89516BWIRE, SKID CONTROL SENSOR

main89516-0N020iGRS20#,UZS200200912-201207

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-0N030iGRS20#200912-201207

main89516-0N050iUZS200200912-201207

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-0N040iGRS20#,UZS200200912-201207

89545SENSOR, SPEED, REAR RH

main89545-0N010iGRS20#201210-201501

main89545-30070iGRS20#200912-201210

89546SENSOR, SPEED, REAR LH

main89546-0N010iGRS20#201210-201501

main89546-30070iGRS20#,UZS200200912-201210

90105C0106

main90105-C0106

90105C0137

main90105-C0137

90105C0142

main90105-C0142

90119C0100

main90119-C0100

90178C0032

main90178-C0032

9167180816

main91671-80816

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
