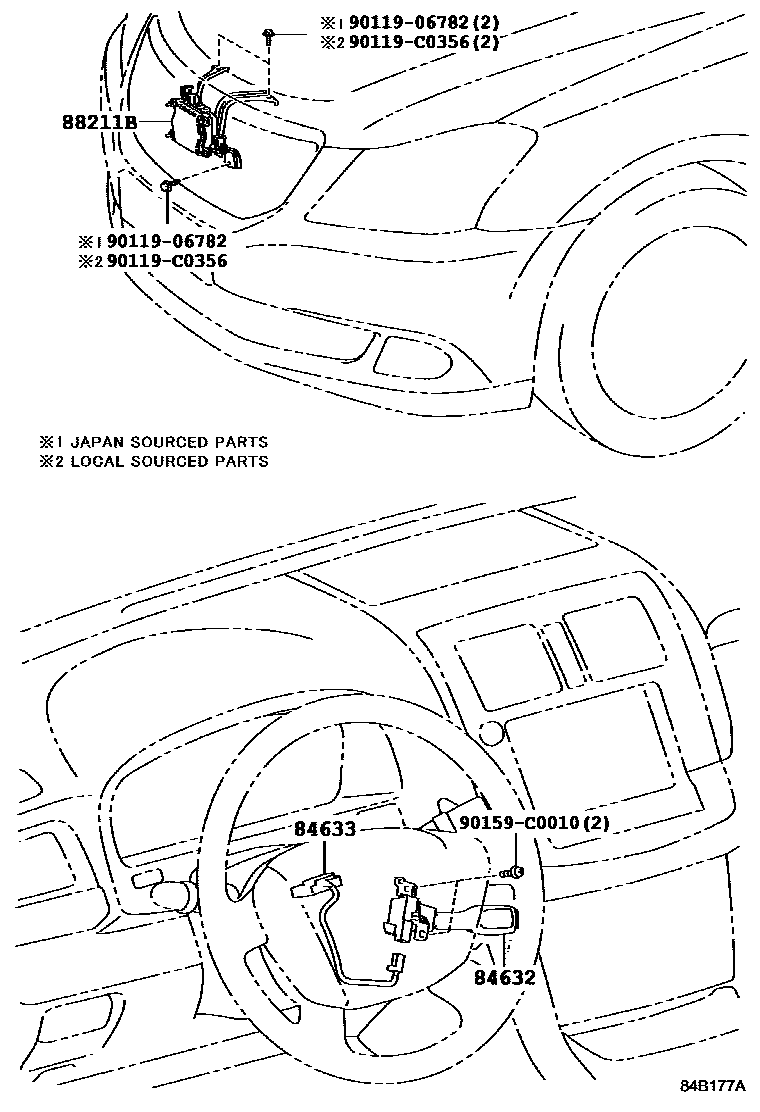

CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011iGRS20#..ROY,ROYEX; GRS208..ROYAL201207-201501

LEATHER PACKAGE; NAVIGATION PACKAGE

main84632-58011iGRS202..ROY; UZS200;GRS202..ROYVP200912-201207

PRE-COLLISION PACKAGE

84633WIRE, CRUISE CONTROL SWITCH

main84633-48010iGRS202..ROY; UZS200;GRS202..ROYVP200912-201207

PRE-COLLISION PACKAGE

main84633-48020iGRS20#..ROY,ROYEX; GRS208..ROYAL201207-201501

LEATHER PACKAGE; NAVIGATION PACKAGE

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-30220iGRS202..ROY; UZS200;GRS202..ROYVP200912-201204

PRE-COLLISION PACKAGE

main88210-30221iGRS202..ROY; UZS200;GRS202..ROYVP201205-201207

PRE-COLLISION PACKAGE

9011906782

main90119-06782

90119C0356

main90119-C0356

90159C0010

main90159-C0010

6 parts on this diagram · 1 diagram in section
