INTERIOR LAMP

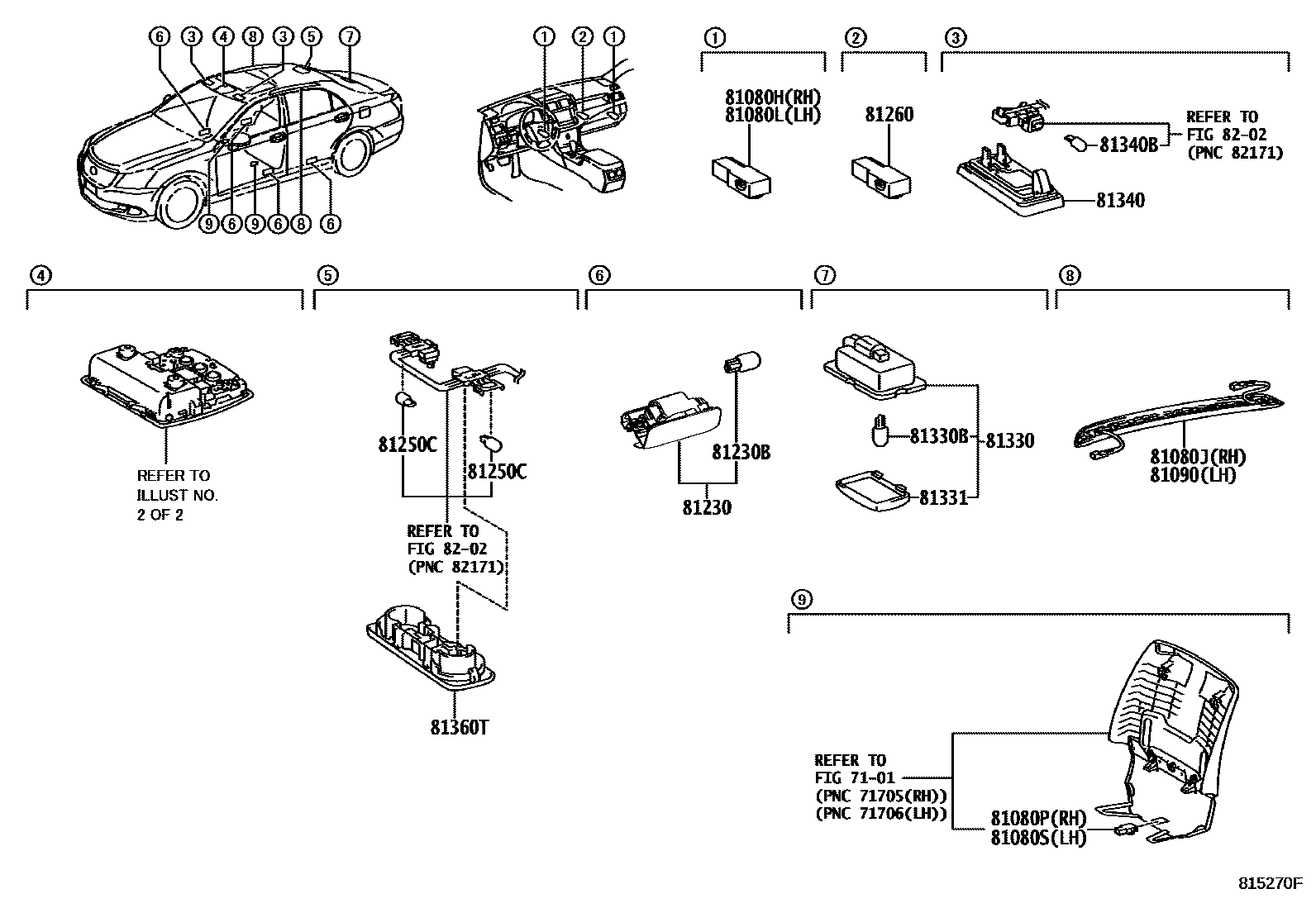

Parts diagram

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-0N020i201207-201501

main81080-48010i200912-201207

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-0N010-A1i200912-201207

SHELL,TRIM0#

main81080-0N010-B1i201207-201501

GRAY,TRIM4#; LEATHER PACKAGE,GRAY,TRIM4#; NAVIGATION PACKAGE,GRAY,TRIM4#

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-0N020i201207-201501

main81080-48010i200912-201207

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-30040i200912-201207

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-30040i200912-201207

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-0N010-A1i201207-201501

LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main81090-0N010-B1i200912-201207

GRAY,TRIM4#

81230LAMP ASSY, COURTESY

main81230-30200×4i201304-201501

main81230-47010×4i200912-201207

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4i201207

12V 5W

81250CBULB, SPOT LAMP

main90981-11062×2i201207-201501

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-0N020i201207-201501

main81080-48010i200912-201207

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-50021i200912-201207

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i201207

12V 3.8W

81331LENS, LUGGAGE COMPARTMENT LAMP

main81331-50010i201207

81340LAMP ASSY, VANITY

main81340-0N010-A1×2i200912-201207

SHELL,TRIM0#

main81340-0N010-B1×2i200912-201207

GRAY,TRIM4#

81340BBULB (FOR VANITY LAMP)

main90981-11062×2i201207-201501

12V 8W

81360TLAMP ASSY, SPOT

main81360-0N020-A0i200912-201207

SHELL,TRIM0#

main81360-0N020-B0i200912-201207

GRAY,TRIM4#
