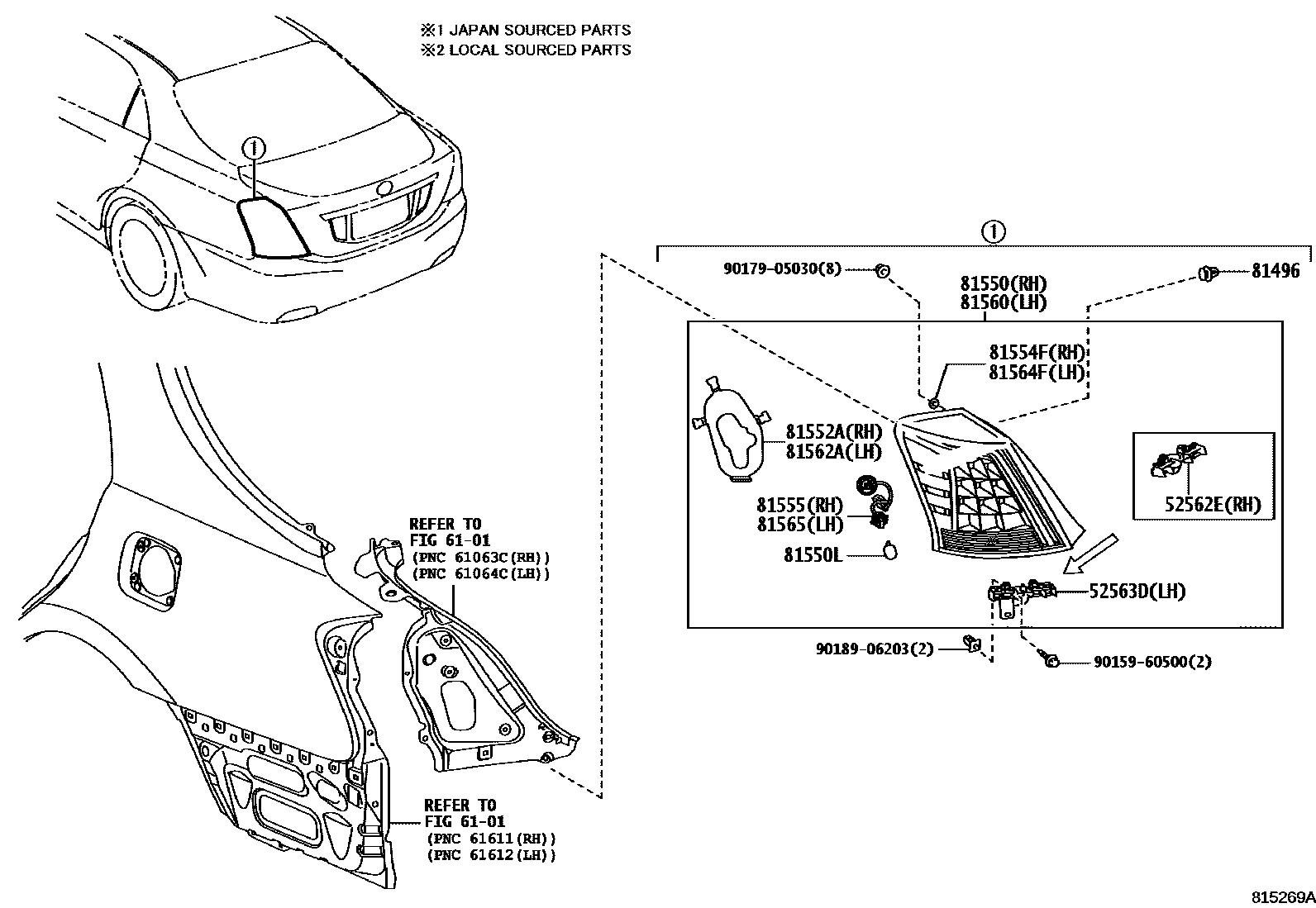

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-0N030iGRS20#,UZS200200912-201207

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-0N030iGRS20#,UZS200200912-201207

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iGRS20#,UZS200200912-201110

main90467-C0019iGRS20#,UZS200201110-201207

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0N040iGRS20#,UZS200200912-201207

main81550-0N050iGRS20#201207

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iGRS20#,UZS200200912-201207

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-0N050iGRS20#201207

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-0N040iGRS20#,UZS200200912-201207

main81674-0N020iGRS20#201207

81554FGASKET, REAR COMBINATION LAMP, NO.2 RH

main81562-0N030iGRS20#201207

main81562-0N040iGRS20#,UZS200200912-201207

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0N040iGRS20#,UZS200200912-201207

main81555-0N050iGRS20#201207

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0N040iGRS20#,UZS200200912-201207

main81560-0N050iGRS20#201207

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-0N050iGRS20#201207

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-0N040iGRS20#,UZS200200912-201207

main81684-0N020iGRS20#201207

81564FGASKET, REAR COMBINATION LAMP, NO.2 LH

main81562-0N030iGRS20#201207

main81562-0N040iGRS20#,UZS200200912-201207

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-0N040iGRS20#,UZS200200912-201207

main81565-0N050iGRS20#201207

9015960500

main90159-60500

9017905030

main90179-05030

9018906203

main90189-06203

18 parts on this diagram · 2 diagrams in section
