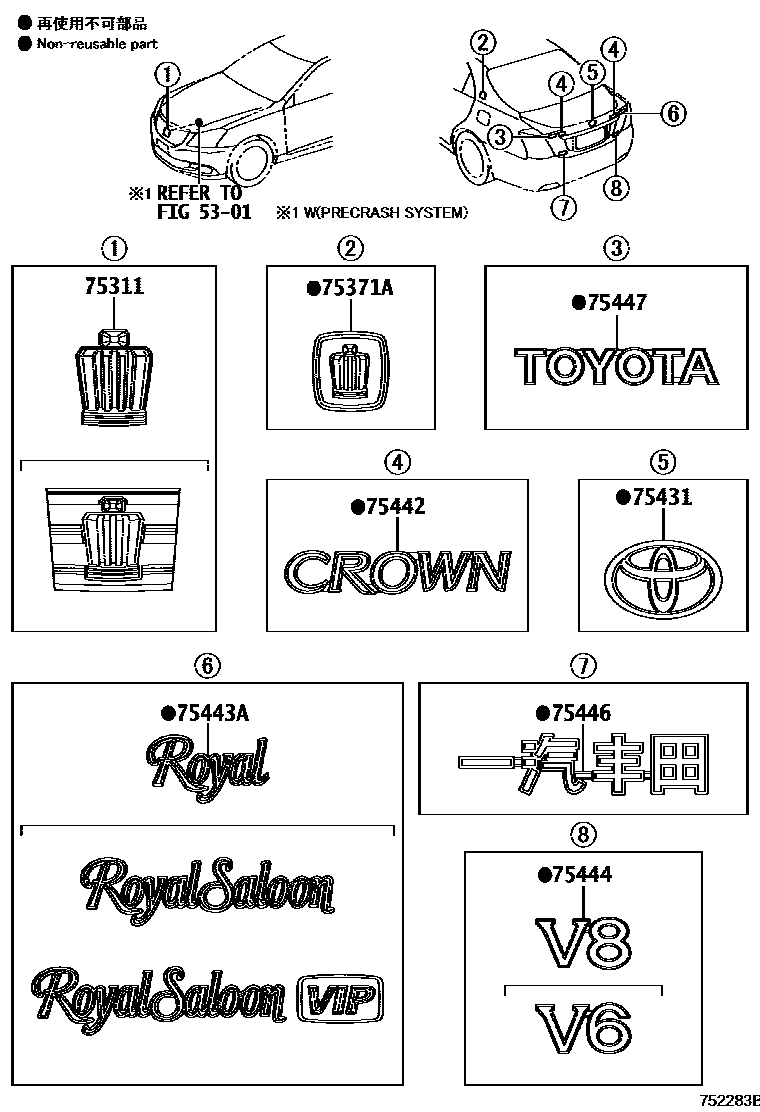

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301RADIATOR GRILLE

→ Go to FIG 53-01

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-0N010iGRS202..ROY; UZS200;GRS202..ROYVP200912-201207

PRE-COLLISION PACKAGE

main53141-0N020iGRS202..ROYVP201207-201501

main75311-0N010iGRS20#..ROY,ROYAL,ROYEX; GRS208200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE

main75311-0N030iGRS20#..ROY,ROYAL,ROYEX201207-201501

75371AEMBLEM, QUARTER PANEL

main75371-0N020×2iGRS20#,UZS200200912-201207

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main90975-02062iGRS20#,UZS200200912-201207

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-0N030iUZS200200912-201009

CROWN

main75442-0N040iGRS20#201207

CROWN

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-0N050iGRS202..ROY200912-201207

ROYAL SALOON

main75443-0N060iGRS20#..ROYAL,ROYEX200912-201207

ROYAL

main75445-0N020supersedes 75443-0N050iGRS202..ROYVP200912-201207

ROYAL SALOON VIP

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75441-0N020iUZS200200912-201207

V8

main75444-0N010iGRS202200912-201207

V6

75446PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.6

main75446-0N020iGRS20#,UZS200200912-201207

main75446-0N030iGRS20#201207

75447PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7

main75447-0N010iUZS200200912-201009

main75447-0N020iGRS20#201207

9 parts on this diagram · 1 diagram in section
