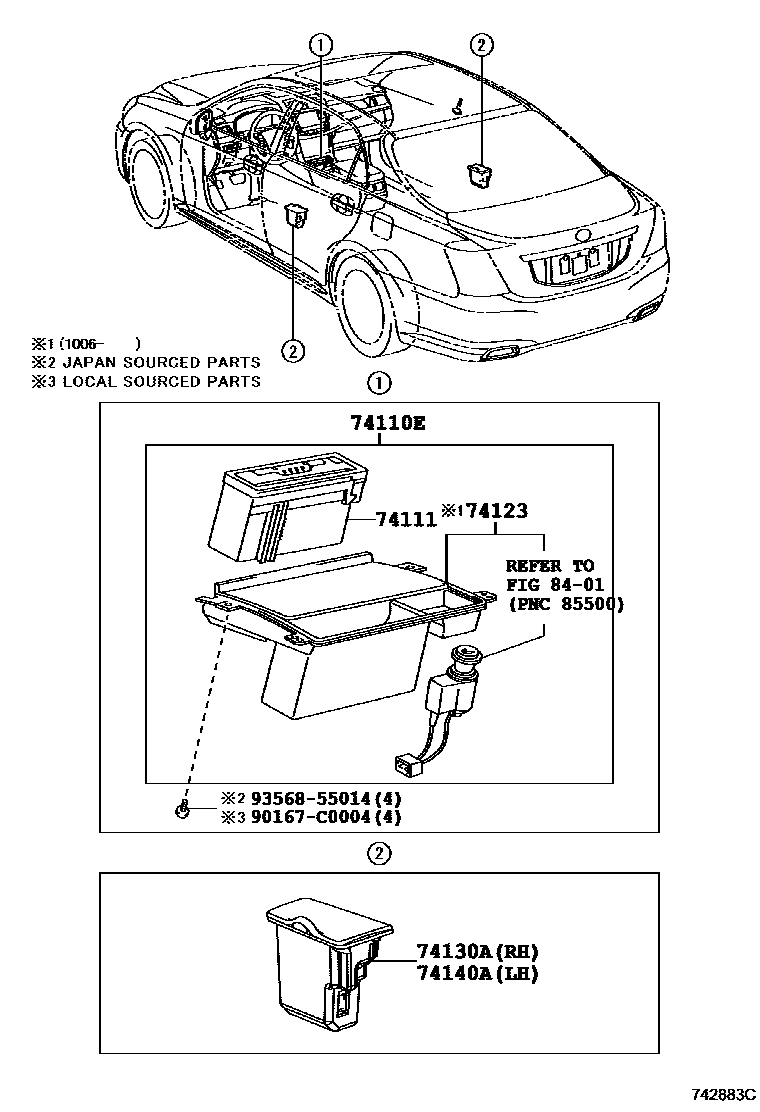

ASH RECEPTACLE

74110ERECEPTACLE ASSY, FRONT ASH

main74110-30420iGRS20#,UZS200200912-201201

main74110-30420-B0iGRS20#,UZS200201201-201207

DK. GRAY,TRIM0#,4#

main74110-30420-B1iGRS20#201207-201501

SILVER ME.,TRIM0#,4#

74111BOX, FRONT ASH RECEPTACLE

main74111-30190iGRS20#201207

74123RETAINER, ASH RECEPTACLE

main74121-30170iGRS20#,UZS200201006-201207

74130ARECEPTACLE ASSY, REAR ASH, RH

main74140-0N040-E2iGRS208200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,DK.BROWN,TRIM0#,4#

main74140-0N040-E3iGRS208201207-201501

BROWN,TRIM0#,4#

main74140-0N050-E1iGRS202201207-201501

DK.BROWN,TRIM0#,4#

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-0N060-E2iGRS208200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,DK.BROWN,TRIM0#,4#

main74140-0N060-E3iGRS208201207-201501

BROWN,TRIM0#,4#

main74140-0N070-E1iUZS200;GRS202..ROYVP200912-201207

DK.BROWN,TRIM0#,4#

8401

90167C0004

main90167-C0004

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
