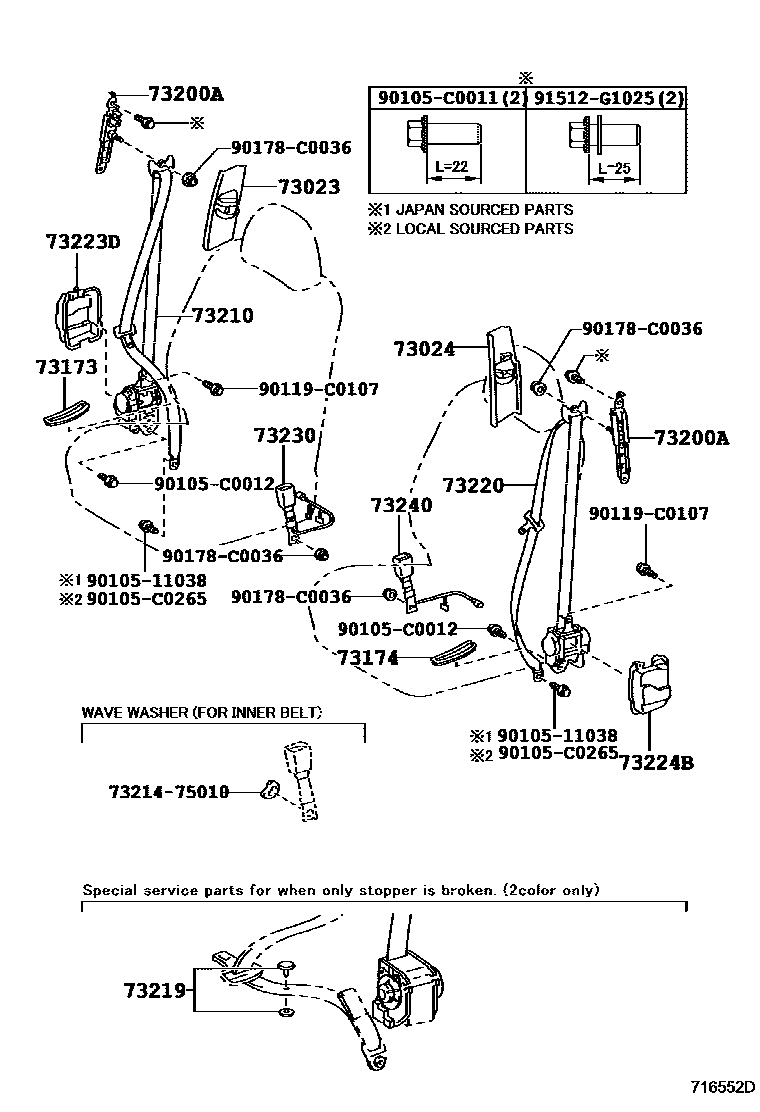

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53010-A2iGRS20#,UZS200200912-201207

SHELL,TRIM0#

main73023-53010-B1iGRS20#201207-201501

GRAY,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53010-A2iGRS20#,UZS200200912-201207

SHELL,TRIM0#

main73024-53010-B1iGRS20#,UZS200200912-201207

GRAY,TRIM4#

73173COVER, FRONT SEAT BELT HOLE, RH

main73173-0N010-A1iGRS20#,UZS200200912-201207

SHELL,TRIM0#

main73173-0N010-E0iGRS20#,UZS200200912-201207

DK. BROWN,TRIM4#

73174COVER, FRONT SEAT BELT HOLE, LH

main73174-0N010-A1iGRS20#201207-201501

SHELL,TRIM0#

main73174-0N010-E0iGRS20#,UZS200200912-201207

DK. BROWN,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06080×2iGRS20#,UZS200200912-201207

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0N030-A0iGRS20#..ROY,ROYAL,ROYEX200912-201207

SHELL,TRIM0#

main73210-0N030-B0iGRS20#..ROY,ROYAL,ROYEX200912-201207

DK. BROWN,TRIM4#

main73210-0N030-B1iGRS20#..ROY,ROYAL,ROYEX201207-201501

BLACK,TRIM4#

main73210-0N040-A0iGRS202..ROY; UZS200;GRS202..ROYVP200912-201207

PRE-COLLISION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main73210-0N040-B0iGRS202..ROY; UZS200;GRS202..ROYVP200912-201207

DK. BROWN,TRIM4#; PRE-COLLISION PACKAGE,DK. BROWN,TRIM4#

main73210-0N040-B1iGRS202..ROYVP201207-201501

BLACK,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iGRS20#,UZS200200912-201207

BLACK

main73219-33030iGRS20#,UZS200200912-201207

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0N030-A0iGRS20#..ROY,ROYAL,ROYEX201207-201501

SHELL,TRIM0#

main73220-0N030-B0iGRS20#..ROY,ROYAL,ROYEX200912-201207

DK. BROWN,TRIM4#

main73220-0N030-B1iGRS20#..ROY,ROYAL,ROYEX201207-201501

BLACK,TRIM4#

main73220-0N040-A0iGRS202..ROY; UZS200;GRS202..ROYVP200912-201207

PRE-COLLISION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main73220-0N040-B0iGRS202..ROY; UZS200;GRS202..ROYVP200912-201207

DK. BROWN,TRIM4#; PRE-COLLISION PACKAGE,DK. BROWN,TRIM4#

main73220-0N040-B1iGRS202..ROYVP201207-201501

BLACK,TRIM4#

73223COVER, SEAT BELT RETRACTOR

main73223-0N050×2iGRS20#,UZS200200912-201207

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0N040iGRS20#,UZS200200912-201207

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-0N030iGRS20#201207

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0N070-A0iGRS20#,UZS200200912-201207

SHELL,TRIM0#

main73230-0N070-E0iGRS20#,UZS200200912-201207

DK. BROWN,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0N050-A0iGRS20#,UZS200200912-201207

SHELL,TRIM0#

main73230-0N050-E0iGRS20#,UZS200200912-201207

DK. BROWN,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511038

main90105-11038

90105C0011

main90105-C0011

90105C0012

main90105-C0012

90105C0265

main90105-C0265

90119C0107

main90119-C0107

90178C0036

main90178-C0036

91512G1025

main91512-G1025

21 parts on this diagram · 2 diagrams in section
