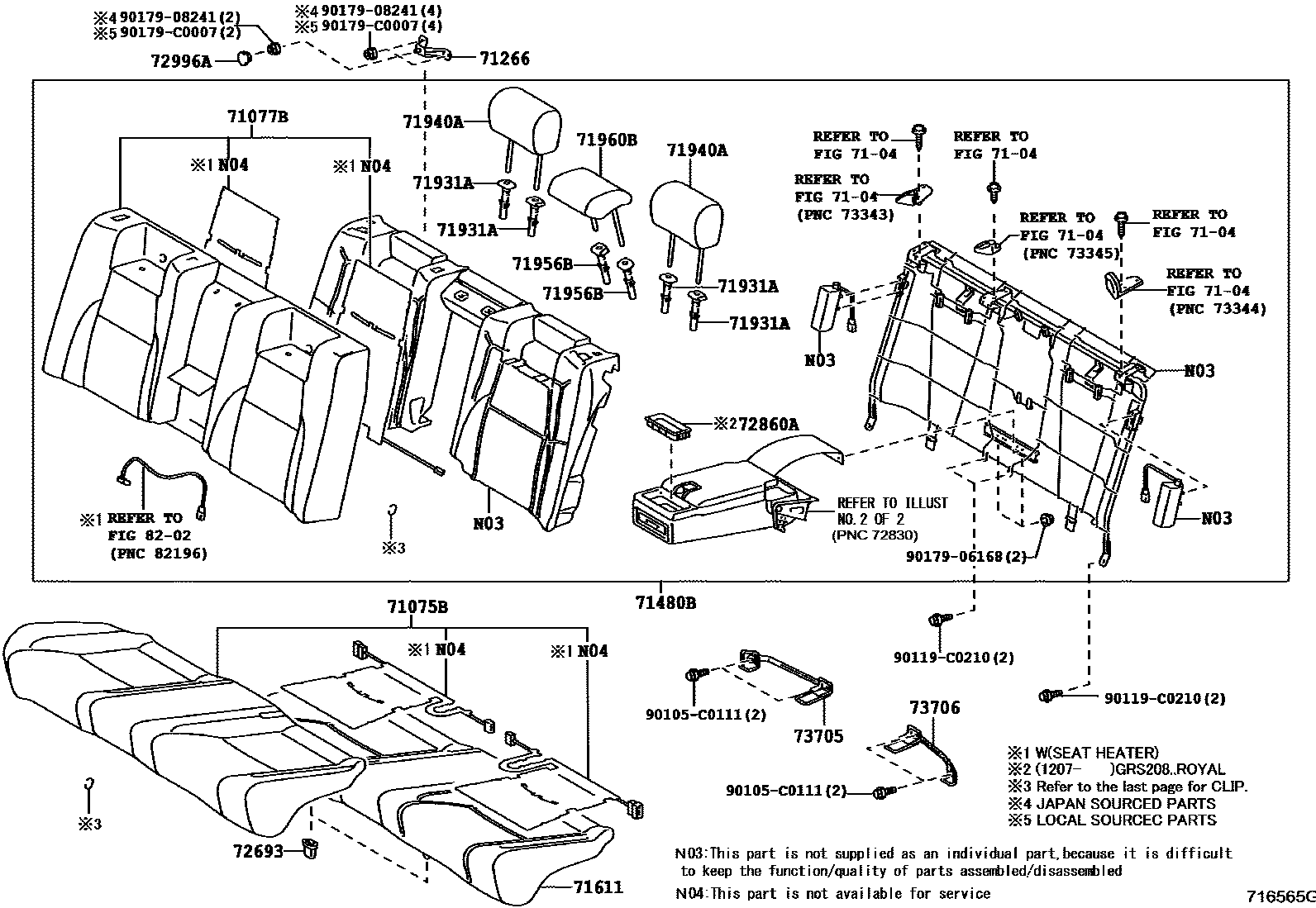

REAR SEAT & SEAT TRACK
7104SEAT BELT & CHILD RESTRAINT SEAT
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
71266GUSSET, REAR SEATBACK FRAME
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
SHELL,TRIM00
SHELL/BLACK,TRIM00
SHELL/BROWN,TRIM0#
DK.BROWN,TRIM40
DK.BROWN/BLACK,TRIM40
DK.BROWN/BROWN,TRIM40; LEATHER PACKAGE,DK.BROWN/BROWN,TRIM40; NAVIGATION PACKAGE,DK.BROWN/BROWN,TRIM40
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
HIGH CLASS PACKAGE,SHELL,TRIM0#; LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#
HIGH CLASS PACKAGE,DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
71611PAD, REAR SEAT CUSHION
LEATHER PACKAGE; NAVIGATION PACKAGE
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),SHELL,TRIM0#
W(LOCK),DK. BROWN,TRIM4#; W(LOCK),LEATHER PACKAGE,DK. BROWN,TRIM4#; W(LOCK),NAVIGATION PACKAGE,DK. BROWN,TRIM4#
W/O(LOCK),SHELL,TRIM0#
W/O(LOCK),DK. BROWN,TRIM4#; W/O(LOCK),LEATHER PACKAGE,DK. BROWN,TRIM4#; W/O(LOCK),NAVIGATION PACKAGE,DK. BROWN,TRIM4#
W(LOCK),VIP PACKAGE,SHELL,TRIM0#
W(LOCK),VIP PACKAGE,DK. BROWN,TRIM4#
W/O(LOCK),VIP PACKAGE,SHELL,TRIM0#
W/O(LOCK),VIP PACKAGE,DK. BROWN,TRIM4#
71940AHEADREST ASSY, REAR SEAT
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
VIP PACKAGE,SHELL,TRIM0#
VIP PACKAGE,DK. BROWN,TRIM4#
71956BSUPPORT, REAR SEAT HEADREST
W(LOCK),SHELL,TRIM0#
W(LOCK),DK. BROWN,TRIM4#; W(LOCK),LEATHER PACKAGE,DK. BROWN,TRIM4#; W(LOCK),NAVIGATION PACKAGE,DK. BROWN,TRIM4#
W/O(LOCK),SHELL,TRIM0#
W/O(LOCK),DK. BROWN,TRIM4#; W/O(LOCK),LEATHER PACKAGE,DK. BROWN,TRIM4#; W/O(LOCK),NAVIGATION PACKAGE,DK. BROWN,TRIM4#
W(LOCK),SHELL,TRIM0#
W(LOCK),DK. BROWN,TRIM4#
W/O(LOCK),SHELL,TRIM0#
W/O(LOCK),DK. BROWN,TRIM4#
71960BHEADREST ASSY, REAR SEAT, CENTER
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
72693HOOK, REAR SEAT CUSHION LOCK
VIP PACKAGE
72860BOX ASSY, REAR SEAT CENTER ARMREST
LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#
SHELL,TRIM0#
SHELL,TRIM0#
DK. BROWN,TRIM4#
DK. BROWN,TRIM4#
LEATHER PACKAGE,SHELL/BROWN,TRIM0#; NAVIGATION PACKAGE,SHELL/BROWN,TRIM0#; SHELL/BROWN,TRIM0#
SHELL,TRIM00
DK.BROWN/BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN/BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN/BROWN,TRIM4#
DK. BROWN,TRIM40
72860ABOX ASSY, REAR SEAT CENTER ARMREST, NO.2
72996ACOVER, REAR SEATBACK
SHELL,TRIM0#; VIP PACKAGE,SHELL,TRIM0#
DK. BROWN,TRIM4#; VIP PACKAGE,DK. BROWN,TRIM4#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
8202WIRING & CLAMP
90105C0111
main90105-C0111
90119C0210
main90119-C0210
9017906168
main90179-06168
9017908241
main90179-08241
90179C0007
main90179-C0007
22 parts on this diagram · 7 diagrams in section
