7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-0N100-A0i200912-201207

LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main71071-0N100-A2supersedes 71071-0N090-A2i201207-201408

LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main71071-0N100-E0i200912-201207

DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#

main71071-0N100-E1i201207-201408

DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#

main71071-0N110-A1i200912-201207

VIP PACKAGE,SHELL,TRIM0#

main71071-0N110-E1i200912-201207

VIP PACKAGE,DK.BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-0N050-A1i200912-201207

LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main71073-0N050-A2supersedes 71073-0N040-A4i201207-201501

LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main71073-0N050-E1i200912-201207

DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#

main71073-0N050-E2i201207-201501

DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#

main71073-0N060-A1i200912-201207

VIP PACKAGE,SHELL,TRIM0#

main71073-0N060-E1i200912-201207

VIP PACKAGE,DK.BROWN,TRIM4#

71100SSEAT ASSY, FRONT RH

main71100-0N150-A2i200912-201207

SHELL,TRIM0#

main71100-0N150-A4i201408-201501

SHELL,TRIM00

main71100-0N150-E2i200912-201207

DK.BROWN,TRIM4#

main71100-0N150-E4i201207-201408

DK.BROWN,TRIM4#

main71100-0N160-A2i200912-201207

SHELL,TRIM0#

main71100-0N160-A4i201408-201501

HIGH CLASS PACKAGE,SHELL,TRIM00; SHELL,TRIM00

main71100-0N160-E2i200912-201207

DK.BROWN,TRIM4#

main71100-0N160-E4i201207-201408

DK.BROWN,TRIM4#; HIGH CLASS PACKAGE,DK.BROWN,TRIM4#

main71100-0N180-A2supersedes 71100-0N190-A1i200912-201207

LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main71100-0N180-E2i200912-201207

DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#

main71100-0N130-A1i201408-201501

LEATHER PACKAGE,SHELL,TRIM00; NAVIGATION PACKAGE,SHELL,TRIM00

main71100-0N130-E1i201207-201408

LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#

main71100-0N170-A2i200912-201207

VIP PACKAGE,SHELL,TRIM0#

main71100-0N170-E2i200912-201207

VIP PACKAGE,DK.BROWN,TRIM4#

71121BRACKET, FRONT SEAT CUSHION, RH

main85868-0N010i201207-201501

HIGH CLASS PACKAGE

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-0N020i200912-201207

VIP PACKAGE

main71501-0N040i200912-201207

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-0N020-A1i200912-201207

SHELL,TRIM0#; VIP PACKAGE,SHELL,TRIM0#

main71705-0N020-E1i200912-201207

DK. BROWN,TRIM4#; VIP PACKAGE,DK. BROWN,TRIM4#

main71705-0N060-A1i200912-201207

SHELL,TRIM0#

main71705-0N060-E1i201207-201501

DK. BROWN,TRIM4#; HIGH CLASS PACKAGE,DK. BROWN,TRIM4#

main71705-0N080-A1i200912-201207

LEATHER PACKAGE,SHELL,TRIM0#,40; NAVIGATION PACKAGE,SHELL,TRIM0#,40; SHELL,TRIM0#; SHELL,TRIM0#,40

main71705-0N080-E1i200912-201207

DK. BROWN,TRIM4#; DK. BROWN,TRIM40; LEATHER PACKAGE,DK. BROWN,TRIM40; NAVIGATION PACKAGE,DK. BROWN,TRIM40

main71771-0N030-A0i201207-201501

SHELL,TRIM0#

main71771-0N030-E0i201207-201501

DK.BROWN,TRIM4#

71793ACLIP, FRONT SEATBACK POCKET

main71793-58010×4i200912-201207

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-0N010-A4i201207-201501

SHELL,TRIM0#

main71811-0N010-E2i200912-201207

DK. BROWN,TRIM4#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-33010×2i200912-201207

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-0N010-A4i201207-201501

SHELL,TRIM0#

main71861-0N010-E2i200912-201207

DK. BROWN,TRIM4#

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-0N010-A4i201207-201501

SHELL,TRIM0#

main71867-0N010-E2i201207-201501

DK. BROWN,TRIM4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-0N050i200912-201207

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0N030i200912-201207

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71876-0N010i200912-201207

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71875-0N010i200912-201207

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71875-0N030-A4i201207-201501

SHELL,TRIM0#

main71875-0N030-E2i201207-201501

DK. BROWN,TRIM4#

71910AHEADREST ASSY, FRONT SEAT

main71910-0N060-A0×2i200912-201207

LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main71910-0N060-A1×2supersedes 71910-0N020-A2i201207-201501

LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main71910-0N060-E0×2i200912-201207

DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#

main71910-0N060-E1×2i201207-201501

DK.BROWN,TRIM4#; LEATHER PACKAGE,DK.BROWN,TRIM4#; NAVIGATION PACKAGE,DK.BROWN,TRIM4#

main71910-0N070-A0×2i200912-201207

VIP PACKAGE,SHELL,TRIM0#

main71910-0N070-E0×2i200912-201207

VIP PACKAGE,DK.BROWN,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-02360-A0×2i201207-201501

W(LOCK),SHELL,TRIM0#

main71930-02360-E1×2i200912-201207

W(LOCK),DK. BROWN,TRIM4#; W(LOCK),LEATHER PACKAGE,DK. BROWN,TRIM4#; W(LOCK),NAVIGATION PACKAGE,DK. BROWN,TRIM4#

main71931-02120-A0×2i201207-201501

W/O(LOCK),SHELL,TRIM0#

main71931-02120-E1×2i200912-201207

W/O(LOCK),DK. BROWN,TRIM4#; W/O(LOCK),LEATHER PACKAGE,DK. BROWN,TRIM4#; W/O(LOCK),NAVIGATION PACKAGE,DK. BROWN,TRIM4#

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-0N010-A5i201207-201501

SHELL,TRIM0#

main72123-0N010-E2i200912-201207

DK. BROWN,TRIM4#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-0N010-A5i200912-201207

SHELL,TRIM0#

main72123-0N010-E2i201207-201501

DK. BROWN,TRIM4#

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-0N060i201207-201501

72136ASPACER, SEAT TRACK, LOWER NO.2

main72136-0N050i200912-201207

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-0N010-A5i200912-201207

SHELL,TRIM0#

main72137-0N010-E2i200912-201207

DK. BROWN,TRIM4#

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-0N010-A5i200912-201207

SHELL,TRIM0#

main72157-0N010-E2i201207-201501

DK. BROWN,TRIM4#

73178BCAP, SEAT BELT ANCHOR COVER

main73178-0N010-A5×2i201207-201501

SHELL,TRIM0#

main73178-0N010-E2×2i200912-201207

DK. BROWN,TRIM4#

74610UGRIP ASSY, ASSIST

main71025-0N010-A1×2i200912-201207

SHELL,TRIM0#

main71025-0N010-E1×2i200912-201207

DK. BROWN,TRIM4#

74617CPLUG, ASSIST GRIP

main74617-0N010-A0×2i201207-201501

SHELL,TRIM0#

main74617-0N010-E0×2i200912-201207

DK. BROWN,TRIM4#

74617DPLUG, ASSIST GRIP

main74618-0N010-A0×2i200912-201207

SHELL,TRIM0#

main74618-0N010-E0×2i200912-201207

DK. BROWN,TRIM4#

79977AFELT, SEATBACK

main79977-0N010i200912-201207

VIP PACKAGE

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

82666MHOLDER, CONNECTOR

main82666-0N010i200912-201207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85860ABLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

main85860-0N010i200912-201207

85862BLOWER, SEAT CLIMATE CONTROL, RH

main85862-0N010i200912-201207

85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH

main85866-0N010i200912-201207

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-0N010i200912-201207

85869COVER, SEATBACK CLIMATE CONTROL, RH

main85869-0N010i200912-201207

8602SPEAKER

→ Go to FIG 86-02

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-0E030i201203-201207

LEATHER PACKAGE; NATURAL LEATHER & MOON ROOF PACKAGE; NAVIGATION PACKAGE

main87501-0E070i201409-201501

LEATHER PACKAGE; NAVIGATION PACKAGE

main87501-0N020i200912-201202

LEATHER PACKAGE; NAVIGATION PACKAGE

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

8761622010CLAMP, COOLING UNIT CASE

main87616-22010

9008416012

main90084-16012

90119C0190

main90119-C0190

9015940159

main90159-40159

9016740044

main90167-40044

9354114006

main93541-14006

9354114035

main93541-14035

9356855012

main93568-55012

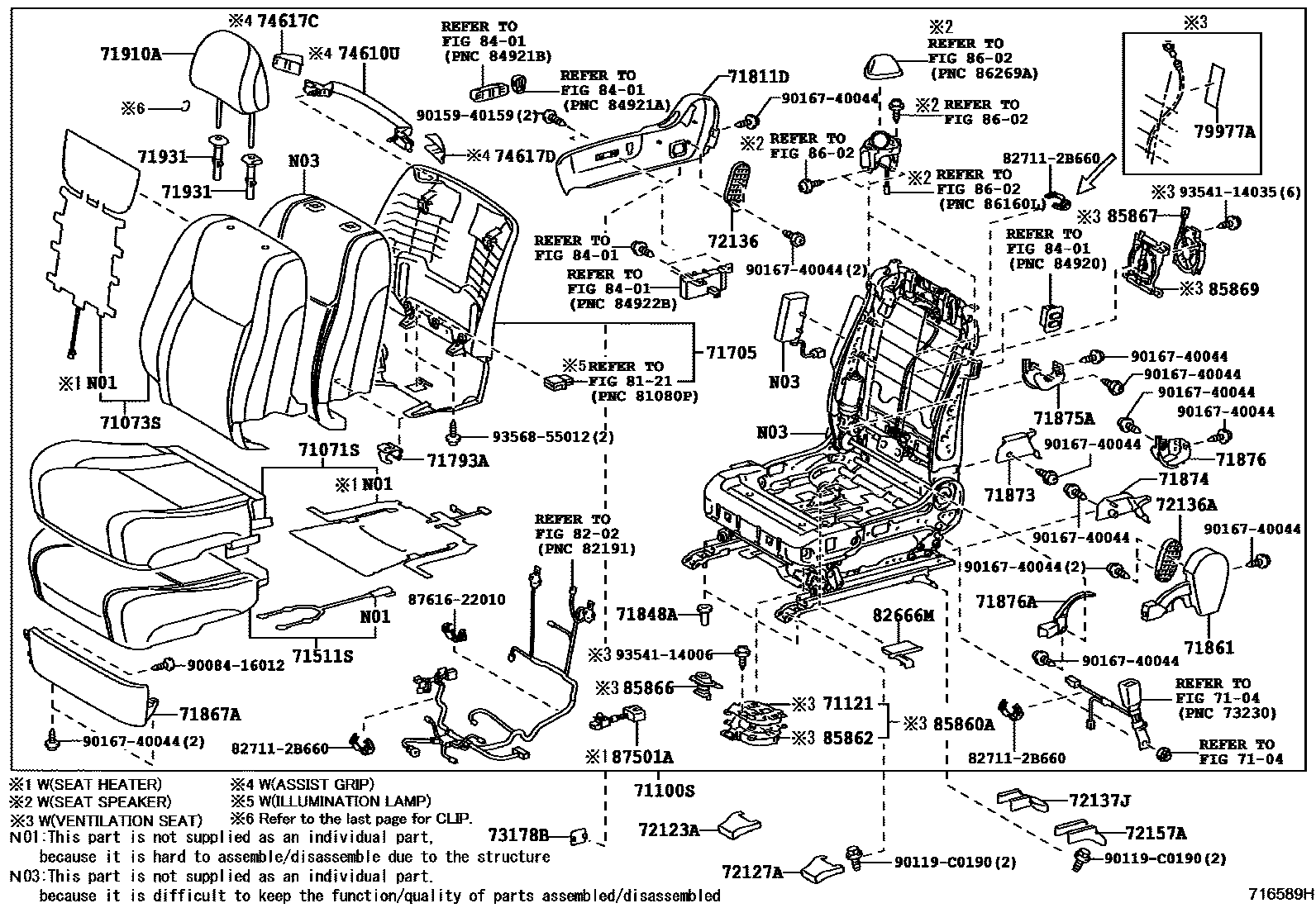

FRONT SEAT & SEAT TRACK
