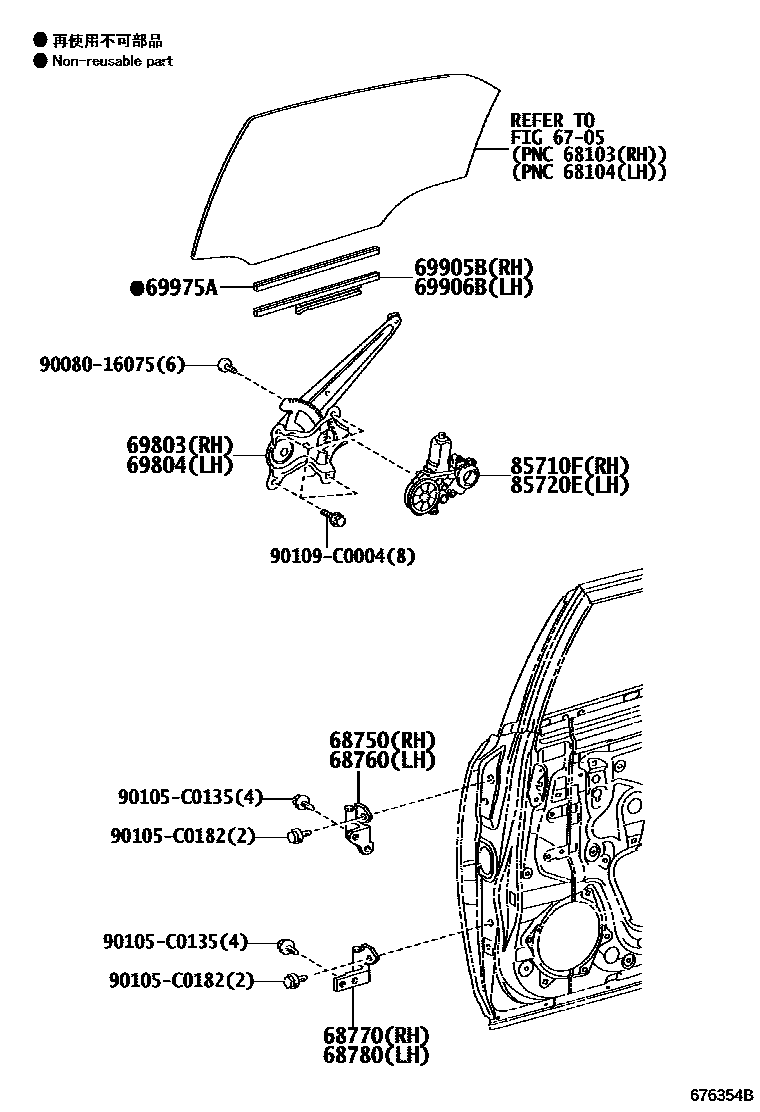

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0N010iGRS20#,UZS200200912-201207

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0N010iGRS20#,UZS200200912-201207

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0N010iGRS20#,UZS200200912-201207

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0N010iGRS20#,UZS200200912-201207

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0N020iGRS20#,UZS200200912-201207

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0N020iGRS20#,UZS200200912-201207

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-30120iGRS20#,UZS200200912-201207

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-30100iGRS20#,UZS200200912-201207

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-22030×2iGRS20#,UZS200200912-201207

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0N031iGRS20#,UZS200200912-201207

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0N031iGRS20#,UZS200200912-201207

9008016075

main90080-16075

90105C0135

main90105-C0135

90105C0182

main90105-C0182

90109C0004

main90109-C0004

16 parts on this diagram · 1 diagram in section
