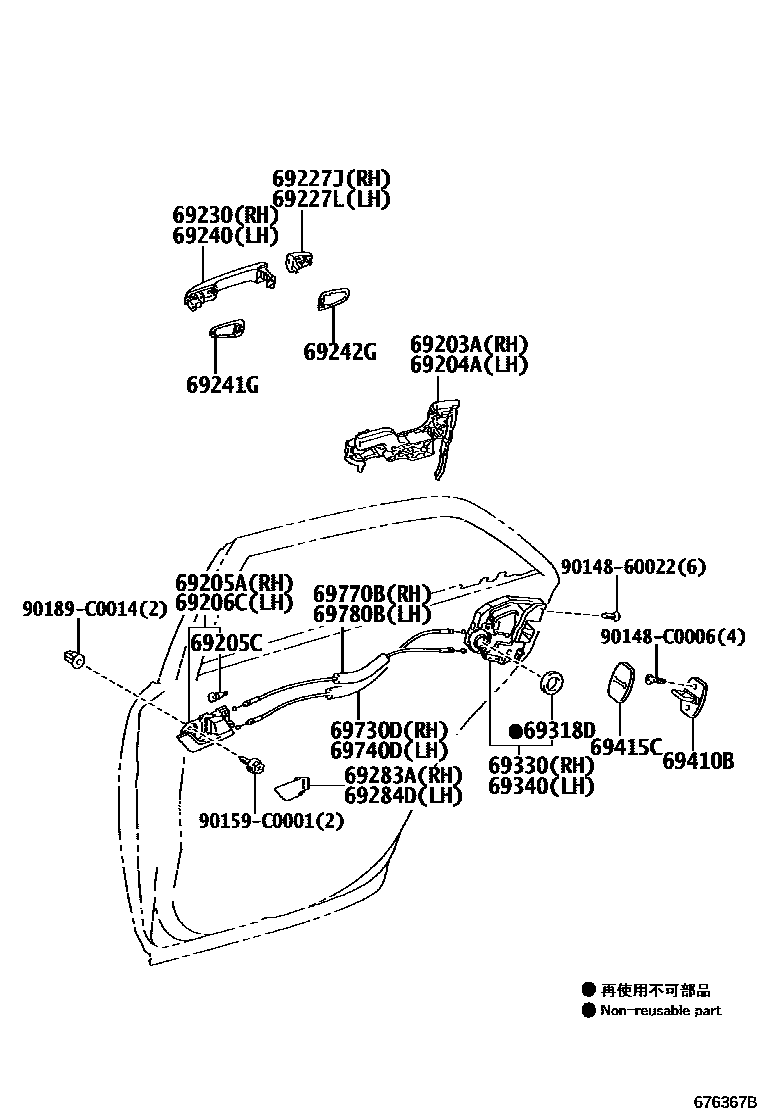

REAR DOOR LOCK & HANDLE

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0N030iGRS20#200912-201207

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0N030iGRS20#,UZS200200912-201207

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0N010-A0iGRS20#200912-201501

SHELL,TRIM0#

sub69205-0N010

main69205-0N010-E0iGRS20#200912-201501

DK. BROWN,TRIM4#

sub69205-0N010

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iGRS20#,UZS200200912-201207

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0N010-A0iGRS20#,UZS200200912-201501

SHELL,TRIM0#

sub69206-0N010

main69206-0N010-E0iGRS20#,UZS200200912-201501

DK. BROWN,TRIM4#

sub69206-0N010

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69250-0N050-A0iGRS20#200912-201501

WHITE PEARL CS.,062

main69250-0N050-B0iGRS20#,UZS200200912-201501

SILVER ME.,1G7

main69250-0N050-B2iGRS20#201107-201501

ICE TITANIUM M.M.,1H4

main69250-0N050-C0iGRS20#,UZS200200912-201501

BLACK,202

main69250-0N050-D0iGRS20#200912-201501

BLACKISH RED MC.,3R0

main69250-0N050-J0iGRS20#,UZS200200912-201303

DK.BLUE MC.,8S6

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69250-0N050-A0iGRS20#,UZS200200912-201501

WHITE PEARL CS.,062

main69250-0N050-B0iGRS20#200912-201501

SILVER ME.,1G7

main69250-0N050-B2iGRS20#201107-201501

ICE TITANIUM M.M.,1H4

main69250-0N050-C0iGRS20#200912-201501

BLACK,202

main69250-0N050-D0iGRS20#200912-201501

BLACKISH RED MC.,3R0

main69250-0N050-J0iGRS20#,UZS200200912-201303

DK.BLUE MC.,8S6

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0N030-A0iGRS20#,UZS200200912-201501

WHITE PEARL CS.,062

main69210-0N030-B0iGRS20#,UZS200200912-201501

SILVER ME.,1G7

main69210-0N030-B2iGRS20#201107-201501

ICE TITANIUM M.M.,1H4

main69210-0N030-C0iGRS20#200912-201501

BLACK,202

main69210-0N030-D0iGRS20#200912-201501

BLACKISH RED MC.,3R0

main69210-0N030-J0iGRS20#,UZS200200912-201303

DK.BLUE MC.,8S6

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-0N030-A0iGRS20#,UZS200200912-201501

WHITE PEARL CS.,062

main69210-0N030-B0iGRS20#,UZS200200912-201501

SILVER ME.,1G7

main69210-0N030-B2iGRS20#201107-201501

ICE TITANIUM M.M.,1H4

main69210-0N030-C0iGRS20#200912-201501

BLACK,202

main69210-0N030-D0iGRS20#,UZS200200912-201501

BLACKISH RED MC.,3R0

main69210-0N030-J0iGRS20#,UZS200200912-201303

DK.BLUE MC.,8S6

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-30110iGRS20#,UZS200200912-201207

sub69241-30111

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-30090iGRS20#,UZS200200912-201301

sub69242-30091

main69242-30091iGRS20#201302

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-0N020-A0iGRS20#200912-201501

SHELL,TRIM0#

main69283-0N020-E0iGRS20#,UZS200200912-201501

DK. BROWN,TRIM4#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-0N020-A0iGRS20#,UZS200200912-201501

SHELL,TRIM0#

main69284-0N020-E0iGRS20#,UZS200200912-201501

DK. BROWN,TRIM4#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGRS20#,UZS200200912-201207

69330LOCK ASSY, REAR DOOR, RH

main69050-0N020iGRS20#,UZS200200912-201207

69340LOCK ASSY, REAR DOOR, LH

main69060-0N020iGRS20#,UZS200200912-201207

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0N010iGRS20#,UZS200200912-201106

main69410-0N020iGRS20#,UZS200201106-201207

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-0N030iGRS20#201301

main69415-33010iGRS20#,UZS200200912-201301

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0N020iGRS20#,UZS200200912-201207

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0N020iGRS20#,UZS200200912-201207

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0N020iGRS20#,UZS200200912-201207

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0N020iGRS20#,UZS200200912-201207

9014860022

main90148-60022

90148C0006

main90148-C0006

90159C0001

main90159-C0001

90189C0014

main90189-C0014

26 parts on this diagram · 1 diagram in section
