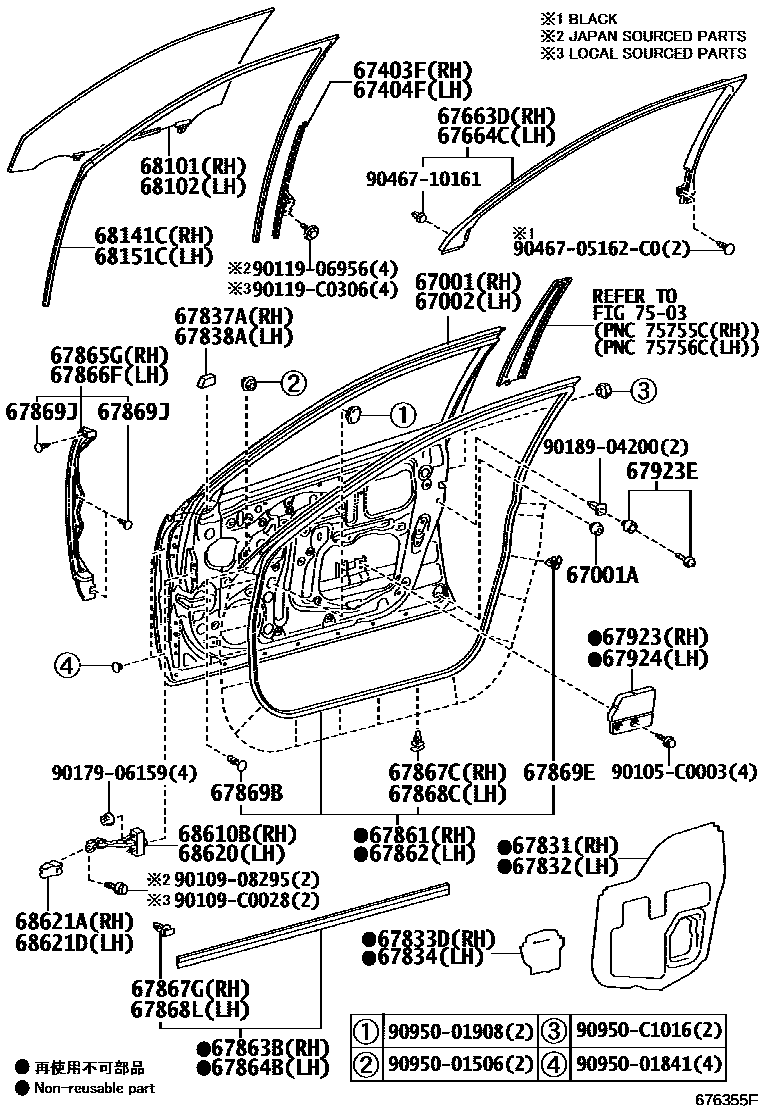

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0N020iGRS20#,UZS200200912-201205

main67001-0N021iGRS20#,UZS200201205-201501

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iGRS20#,UZS200200912-201207

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0N020iGRS20#,UZS200200912-201205

main67002-0N021iGRS20#,UZS200201205-201207

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0N020iGRS20#,UZS200200912-201207

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0N020iGRS20#,UZS200200912-201207

67663DGARNISH, DOOR FRAME, RH

main67663-0N020iGRS20#,UZS200200912-201207

67664CGARNISH, DOOR FRAME, LH

main67664-0N020iGRS20#,UZS200200912-201207

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0N020iGRS20#,UZS200200912-201207

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0N020iGRS20#,UZS200200912-201207

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-0N010iGRS20#,UZS200200912-201207

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67834-0N010iGRS20#,UZS200200912-201207

67837ASEAL, FRONT DOOR VENT, RH

main67837-0N010iGRS20#,UZS200200912-201207

67838ASEAL, FRONT DOOR VENT, LH

main67837-0N010iGRS20#,UZS200200912-201207

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0N020iGRS20#,UZS200200912-201207

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0N020iGRS20#,UZS200200912-201207

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-0N020iGRS20#,UZS200200912-201207

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-0N010iGRS20#,UZS200200912-201207

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-0N020iGRS20#,UZS200200912-201207

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-0N020iGRS20#,UZS200200912-201207

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iGRS20#,UZS200200912-201207

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-0D060iGRS20#201403

(L)

main67867-52010iGRS20#,UZS200200912-201403

main67867-52010iGRS20#201403

(J)

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iGRS20#200912-201207

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-0D050iGRS20#201403

(L)

main67867-52040iGRS20#,UZS200200912-201403

main67867-52040iGRS20#201403

(J)

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-22010iGRS20#200912-201207

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034iGRS20#,UZS200200912-201207

67869JCLIP, FRONT DOOR WEATHERSTRIP

main90467-06020-C0iGRS20#,UZS200200912-201212

BLACK

main90467-C0029iGRS20#201301

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0N010iGRS20#,UZS200200912-201205

main67923-0N030iGRS20#,UZS200201205-201207

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030iGRS20#,UZS200200912-201207

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0N010iGRS20#,UZS200200912-201205

main67924-0N020iGRS20#,UZS200201205-201207

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0N030iGRS20#,UZS200200912-201501

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0N030iGRS20#,UZS200200912-201501

68141CRUN, FRONT DOOR GLASS, RH

main68141-0N020iGRS20#,UZS200200912-201207

68151CRUN, FRONT DOOR GLASS, LH

main68151-0N020iGRS20#,UZS200200912-201207

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0N020iGRS20#,UZS200200912-201009

main68610-0N021iGRS20#,UZS200201010-201207

68620CHECK ASSY, FRONT DOOR, LH

main68620-0N020iGRS20#,UZS200200912-201009

main68620-0N021iGRS20#,UZS200201010-201207

68621ACOVER, FRONT DOOR CHECK, RH

main68621-53010iGRS20#,UZS200200912-201207

68621DCOVER, FRONT DOOR CHECK, LH

main68622-53010iGRS20#,UZS200200912-201207

7503SIDE MOULDING

→ Go to FIG 75-03

90105C0003

main90105-C0003

9010908295

main90109-08295

90109C0028

main90109-C0028

9011906956

main90119-06956

90119C0306

main90119-C0306

9017906159

main90179-06159

9018904200

main90189-04200

9046705162C0

main90467-05162C0

9046710161

main90467-10161

9095001506

main90950-01506

9095001841

main90950-01841

9095001908

main90950-01908

90950C1016

main90950-C1016

51 parts on this diagram · 2 diagrams in section
