63310HCLIP(FOR ROOF HEADLINING)

main90467-09126×3i200912-201207

63311CHEADLINING, ROOF

main63311-0N070-A0i201207-201501

SHELL,TRIM0#

main63311-0N070-B0i201207-201501

GRAY,TRIM4#

main63311-0N090-A0i200912-201207

SHELL,TRIM0#

main63311-0N090-B0i201207-201501

GRAY,TRIM4#

main63311-0N130-A0i201207-201501

HIGH CLASS PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#

main63311-0N130-B0i201207-201501

GRAY,TRIM4#; HIGH CLASS PACKAGE,GRAY,TRIM4#

main63311-0N100-A0i200912-201207

VIP PACKAGE,SHELL,TRIM0#

main63311-0N100-B0i200912-201207

VIP PACKAGE,GRAY,TRIM4#

main63311-0N110-A0supersedes 63311-0N080-A0i201004-201207

LEATHER PACKAGE,SHELL,TRIM0#; NAVIGATION PACKAGE,SHELL,TRIM0#

main63311-0N110-B0supersedes 63311-0N080-B0i201207-201501

LEATHER PACKAGE,GRAY,TRIM4#; NAVIGATION PACKAGE,GRAY,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-0N010×2i200912-201207

VIP PACKAGE

63343PAD, ROOF SILENCER, NO.3

main63343-0N020i200912-201207

63345PAD, ROOF SILENCER, NO.5

main63345-0N030i200912-201207

VIP PACKAGE

63345DPAD, ROOF SILENCER, CENTER

main63345-0N020i200912-201207

VIP PACKAGE

63346PAD, ROOF SILENCER, NO.6

main63346-0N020×2i200912-201207

63351BPAD, ROOF HEADLINING

main63351-0N030supersedes 63351-0N040i201207

LEATHER PACKAGE; NAVIGATION PACKAGE

main63351-0N040×3i200912-201207

VIP PACKAGE

63352DPAD, ROOF HEADLINING, NO.2

main63352-0N020×2supersedes 63352-0N030i200912-201207

main63352-0N030×2i200912-201207

VIP PACKAGE

63353CPAD, ROOF HEADLINING, CENTER

main63353-0N020×2i201207

LEATHER PACKAGE; NAVIGATION PACKAGE

main63353-0N040×2i200912-201207

VIP PACKAGE

63381RETAINER, HEADLINING, FRONT

main63381-30200×12i201207

63391ACLIP(FOR ROOF HEADLINING TRIM)

main90467-10181i201207

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-0N010i200912-201207

VIP PACKAGE

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-0N010i200912-201207

VIP PACKAGE

8602SPEAKER

→ Go to FIG 86-02

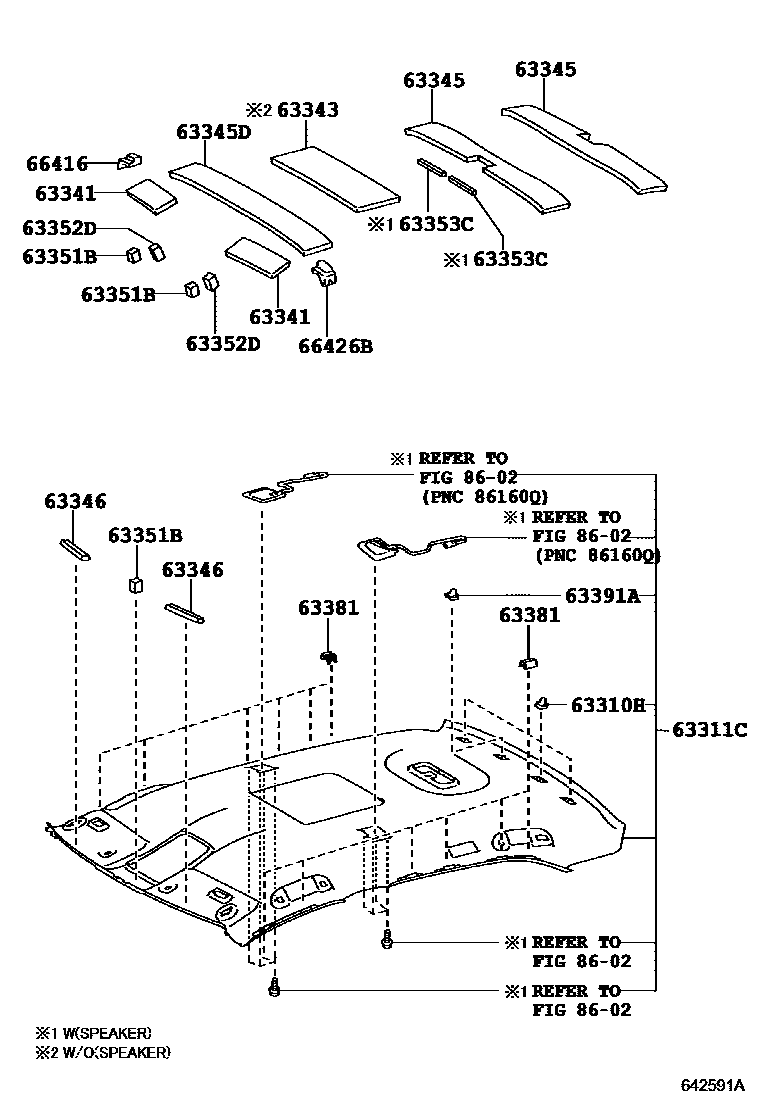

ROOF HEADLINING & SILENCER PAD
