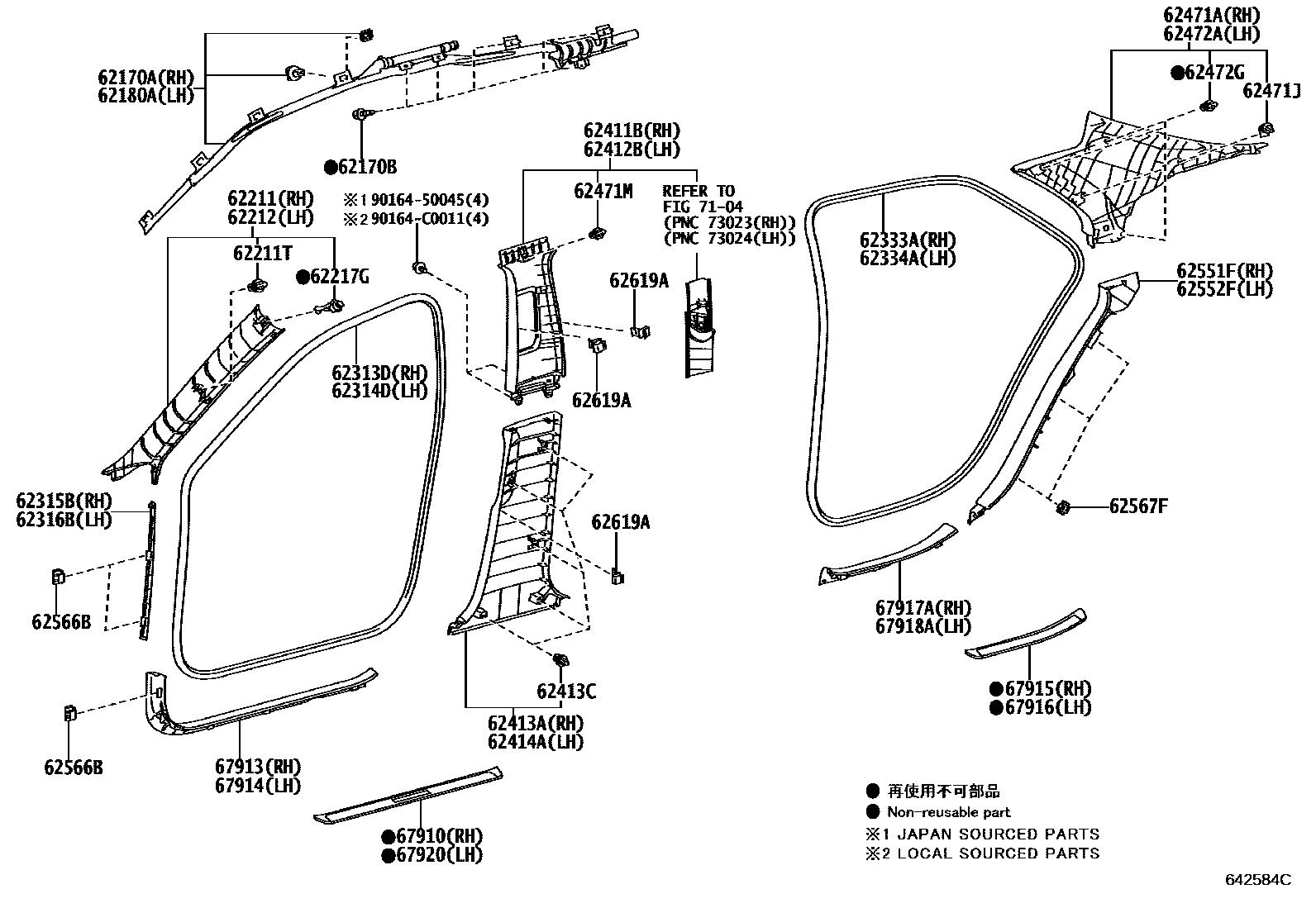

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0N011iGRS20#200912-201207

62170BBOLT, W/WASHER

main90119-06869iGRS20#200912-201207

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0N011iGRS20#200912-201207

62211GARNISH, FRONT PILLAR, RH

main62211-0N030-A0iGRS20#200912-201501

SHELL,TRIM0#

main62211-0N030-B0iGRS20#,UZS200200912-201501

DK.BROWN,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iGRS20#,UZS200200912-201207

62212GARNISH, FRONT PILLAR, LH

main62212-0N030-A0iGRS20#,UZS200200912-201501

SHELL,TRIM0#

main62212-0N030-B0iGRS20#200912-201501

DK.BROWN,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-33031iGRS20#,UZS200200912-201207

62313DTRIM, FRONT DOOR OPENING, RH

main62313-0N020iGRS20#200912-201207

sub62313-0N021

62314DTRIM, FRONT DOOR OPENING, LH

main62314-0N020iGRS20#,UZS200200912-201207

sub62314-0N021

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-0N020-A0iGRS208200912-201501

SHELL,TRIM0#

main62315-0N020-A0iGRS208200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,SHELL,TRIM0#

main62315-0N020-E0iGRS208200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,DK. BROWN,TRIM4#

main62315-0N020-E0iGRS20#,UZS200200912-201501

DK. BROWN,TRIM4#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-0N020-A0iGRS20#,UZS200200912-201501

SHELL,TRIM0#

main62316-0N020-A0iGRS20#,UZS200200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,SHELL,TRIM0#

main62316-0N020-E0iGRS20#,UZS200200912-201501

DK. BROWN,TRIM4#

main62316-0N020-E0iGRS20#,UZS200200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,DK. BROWN,TRIM4#

62333ATRIM, REAR DOOR OPENING, RH

main62333-0N020iGRS20#200912-201207

sub62333-0N021

62334ATRIM, REAR DOOR OPENING, LH

main62334-0N020iGRS20#,UZS200200912-201207

sub62334-0N021

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0N020-A0iGRS20#200912-201501

SHELL,TRIM0#

main62411-0N020-B0iGRS20#200912-201501

GRAY,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0N020-A0iGRS20#,UZS200200912-201501

SHELL,TRIM0#

main62412-0N020-B0iGRS20#,UZS200200912-201501

GRAY,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0N020-A0iGRS20#,UZS200200912-201501

SHELL,TRIM0#

main62413-0N020-E0iGRS20#200912-201501

DK. BROWN,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iGRS20#200912-201207

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0N020-A0iGRS20#200912-201501

SHELL,TRIM0#

main62414-0N020-E0iGRS20#200912-201501

DK. BROWN,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0N050-A0iGRS20#200912-201501

SHELL,TRIM0#

main62471-0N050-B0iGRS20#,UZS200200912-201501

GRAY,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09212iGRS20#,UZS200200912-201207

62471MCLIP

main90467-10167iGRS20#,UZS200200912-201207

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0N050-A0iGRS20#,UZS200200912-201501

SHELL,TRIM0#

main62472-0N050-B0iGRS20#200912-201501

GRAY,TRIM4#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iGRS20#200912-201207

62551FGARNISH, REAR SEAT SIDE, RH

main62551-0N030-A0iGRS20#,UZS200200912-201501

SHELL,TRIM0#

main62551-0N030-E0iGRS20#,UZS200200912-201501

DK. BROWN,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-0N030-A0iGRS20#200912-201501

SHELL,TRIM0#

main62552-0N030-E0iGRS20#200912-201501

DK. BROWN,TRIM4#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010iGRS20#,UZS200200912-201207

62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010iGRS20#,UZS200200912-201207

62619APLATE, SIDE TRIM SET

main62619-30030iGRS20#,UZS200200912-201207

67910PLATE ASSY, DOOR SCUFF, RH

main67910-0N030iGRS20#201207

main67910-0N030iGRS20#,UZS200200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0N020-A0iGRS208200912-201501

SHELL,TRIM0#

main67913-0N020-A0iGRS208200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,SHELL,TRIM0#

main67913-0N020-E0iGRS208200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,DK. BROWN,TRIM4#

main67913-0N020-E0iGRS20#,UZS200200912-201501

DK. BROWN,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0N020-A0iGRS20#,UZS200200912-201501

SHELL,TRIM0#

main67914-0N020-A0iGRS20#,UZS200200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,SHELL,TRIM0#

main67914-0N020-E0iGRS20#,UZS200200912-201501

DK. BROWN,TRIM4#

main67914-0N020-E0iGRS20#,UZS200200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,DK. BROWN,TRIM4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67930-0N030iGRS208200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE

main67930-0N030iGRS20#201207

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67940-0N030iGRS20#,UZS200200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE

main67940-0N030iGRS20#201207

67917APLATE, REAR DOOR SCUFF, RH

main67917-0N020-A0iGRS20#200912-201501

SHELL,TRIM0#

main67917-0N020-A0iGRS20#,UZS200200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,SHELL,TRIM0#

main67917-0N020-E0iGRS208200912-201501

DK. BROWN,TRIM4#

main67917-0N020-E0iGRS208200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,DK. BROWN,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0N020-A0iGRS20#,UZS200200912-201501

SHELL,TRIM0#

main67918-0N020-A0iGRS20#,UZS200200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,SHELL,TRIM0#

main67918-0N020-E0iGRS20#,UZS200200912-201501

DK. BROWN,TRIM4#

main67918-0N020-E0iGRS20#,UZS200200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE,DK. BROWN,TRIM4#

67920PLATE ASSY, DOOR SCUFF, LH

main67920-0N030iGRS20#,UZS200200912-201207

NATURAL LEATHER & MOON ROOF PACKAGE

main67920-0N030iGRS20#201207

7104

9016450045

main90164-50045

90164C0011

main90164-C0011

39 parts on this diagram · 1 diagram in section
