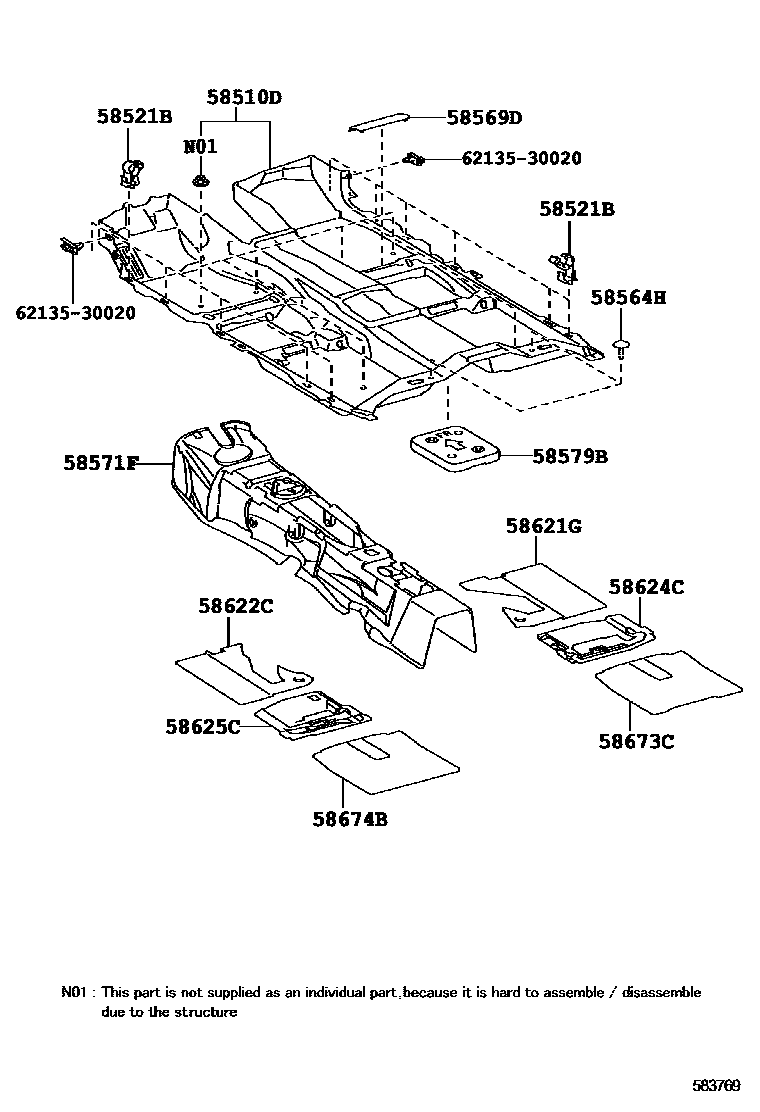

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR CARPET 0003 1FLOOR MAT

58510DCARPET ASSY, FLOOR, FRONT

main58510-0N020-A0iGRS20#,UZS200200912-201207

SHELL,TRIM0#

main58510-0N020-E0iGRS20#,UZS200200912-201207

DK.BROWN,TRIM4#

main58510-0N040-A0iGRS20#201207-201501

SHELL,TRIM0#

main58510-0N040-E0iGRS20#201207-201501

DK.BROWN,TRIM4#

main58510-0N030-A0iUZS200200912-201207

VIP PACKAGE,SHELL,TRIM0#

main58510-0N030-E0iUZS200200912-201207

VIP PACKAGE,DK.BROWN,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-30140×12iGRS20#,UZS200200912-201207

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-05164-C0×2iGRS20#,UZS200200912-201207

BLACK

main90467-C0016-C0×2iGRS20#201301-201501

BLACK

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-0N010-A1iGRS20#201207-201501

SHELL,TRIM0#

main58569-0N010-E0iGRS20#,UZS200200912-201207

DK. BROWN,TRIM4#

58571FPAD, FRONT FLOOR, FRONT

main58571-0N020iGRS20#,UZS200200912-201207

58579BPAD, REAR FLOOR

main58579-0N010iGRS20#,UZS200200912-201207

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-0N010iGRS20#,UZS200200912-201207

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-0N010iGRS20#,UZS200200912-201207

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-0N010iGRS20#,UZS200200912-201207

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-0N010iGRS20#,UZS200200912-201207

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-0N020iGRS20#,UZS200200912-201207

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-0N020iGRS20#,UZS200200912-201207

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

13 parts on this diagram · 3 diagrams in section
