INSTRUMENT PANEL & GLOVE COMPARTMENT
55312ACLIP, INSTRUMENT PANEL
MELLOW WHITE
55317APANEL, INSTRUMENT SIDE, RH
SHELL,TRIM0#
DK. BROWN,TRIM4#
55318CPANEL, INSTRUMENT SIDE, LH
SHELL,TRIM0#
DK. BROWN,TRIM4#
55328ASTAY, INSTRUMENT PANEL, NO.3
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55345ACLIP, INSTRUMENT PANEL, NO.1
55346ACLIP, INSTRUMENT PANEL, NO.2
55355CUSHION, INSTRUMENT PANEL, NO.1
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55400PAD ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM4#
DK. BROWN,TRIM0#
55416ARETAINER, METER HOOD, NO.1
55417ARETAINER, METER HOOD, NO.2
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM4#
DK. BROWN,TRIM0#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM4#
DK. BROWN,TRIM0#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
7403CAUTION PLATE (EXTERIOR & INTERIOR)
8202WIRING & CLAMP
90105C0114
main90105-C0114
90119C0092
main90119-C0092
90119C0202
main90119-C0202
90119C0345
main90119-C0345
9015950327
main90159-50327
90178C0032
main90178-C0032
9017906278
main90179-06278
90182C0034
main90182-C0034
9018305094
main90183-05094
91515F0620
main91515-F0620
91621J0814
main91621-J0814
9163160816
main91631-60816
9415180600
main94151-80600

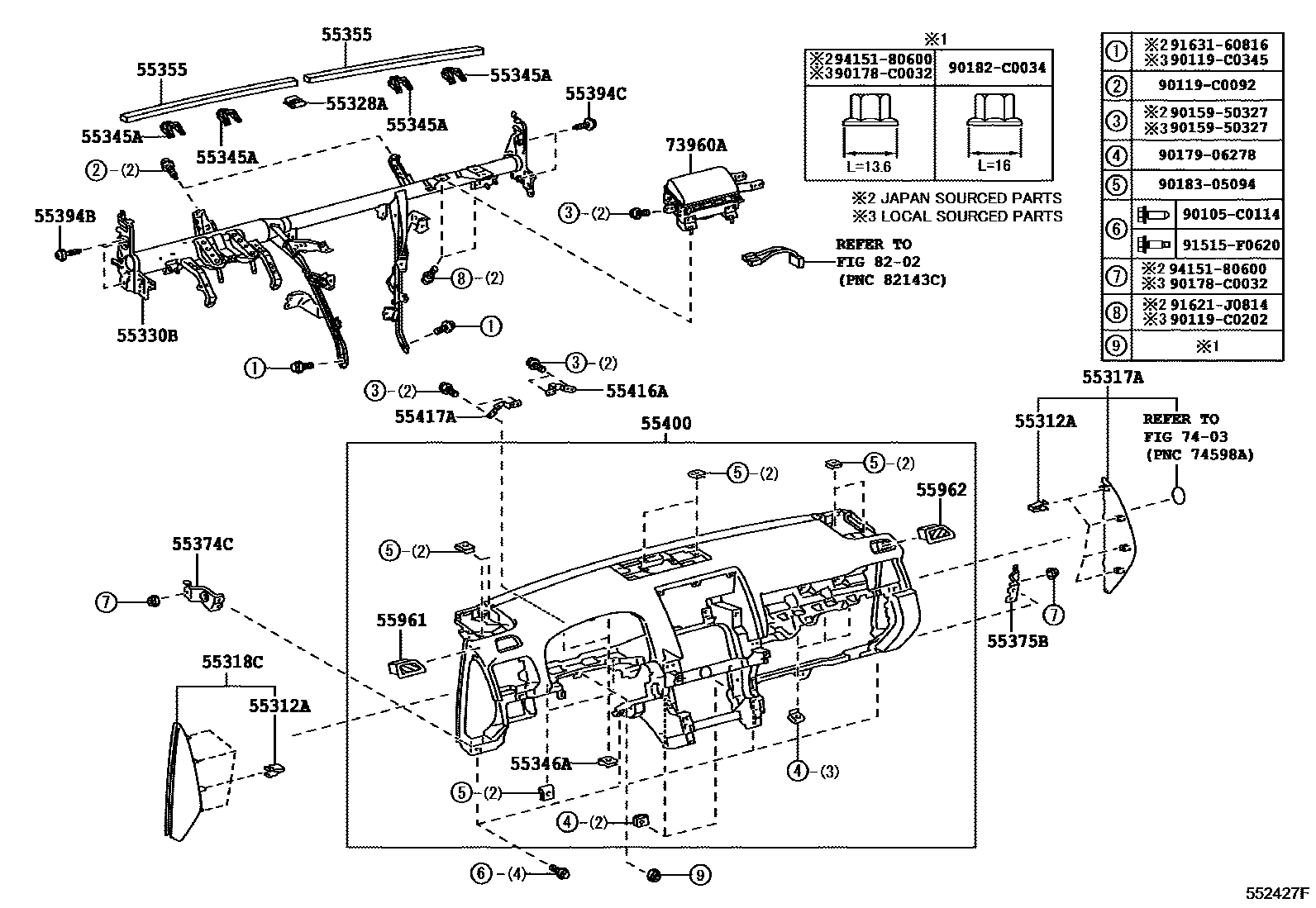

33 parts on this diagram · 4 diagrams in section
