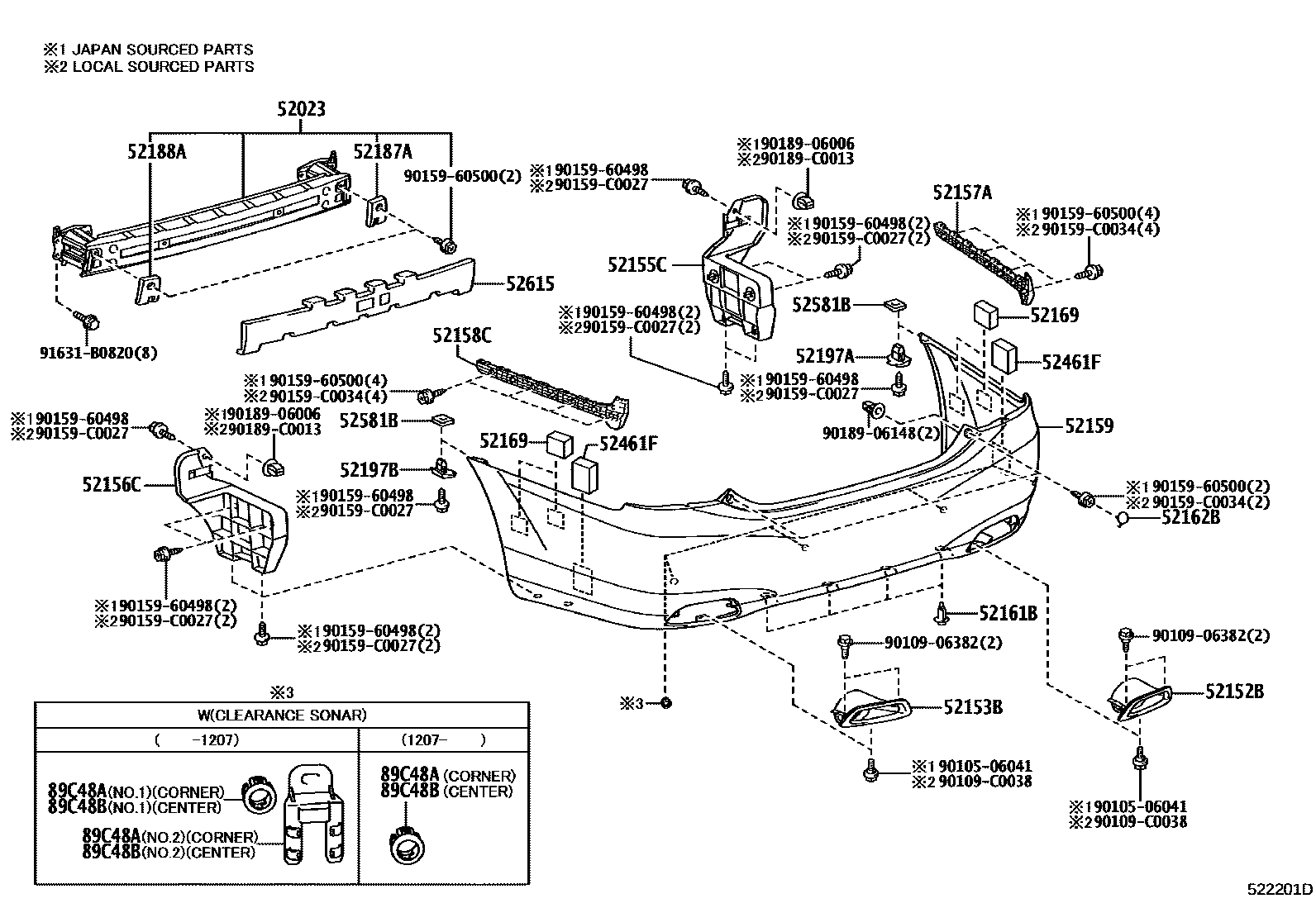

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.; PAINT REQ.,PRE-COLLISION PACKAGE
PAINT REQ.; PAINT REQ.,LEATHER PACKAGE; PAINT REQ.,NAVIGATION PACKAGE
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52169PAD, REAR BUMPER
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52461FPAD, REAR BUMPER
52581BPROTECTOR, REAR BUMPER
52615ABSORBER, REAR BUMPER ENERGY
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
LEATHER PACKAGE,WHITE PEARL CS.,062; NAVIGATION PACKAGE,WHITE PEARL CS.,062; WHITE PEARL CS.,062
LEATHER PACKAGE,SILVER ME.,1G7; NAVIGATION PACKAGE,SILVER ME.,1G7; SILVER ME.,1G7
ICE TITANIUM M.M.,1H4; LEATHER PACKAGE,ICE TITANIUM M.M.,1H4; NAVIGATION PACKAGE,ICE TITANIUM M.M.,1H4
BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6; LEATHER PACKAGE,BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6; NAVIGATION PACKAGE,BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6
BLACK,202; LEATHER PACKAGE,BLACK,202; NAVIGATION PACKAGE,BLACK,202
BLACKISH RED MC.,3R0; LEATHER PACKAGE,BLACKISH RED MC.,3R0; NAVIGATION PACKAGE,BLACKISH RED MC.,3R0
DK.BLUE MC.,8S6; LEATHER PACKAGE,DK.BLUE MC.,8S6; NAVIGATION PACKAGE,DK.BLUE MC.,8S6
PRE-COLLISION PACKAGE,WHITE PEARL CS.,062,NO.1:REFER ILLUST.; WHITE PEARL CS.,062,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,SILVER ME.,1G7,NO.1:REFER ILLUST.; SILVER ME.,1G7,NO.1:REFER ILLUST.
ICE TITANIUM M.M.,1H4,NO.1:REFER ILLUST.; PRE-COLLISION PACKAGE,ICE TITANIUM M.M.,1H4,NO.1:REFER ILLUST.
BLACK,202,NO.1:REFER ILLUST.; PRE-COLLISION PACKAGE,BLACK,202,NO.1:REFER ILLUST.
BLACKISH RED MC.,3R0,NO.1:REFER ILLUST.; PRE-COLLISION PACKAGE,BLACKISH RED MC.,3R0,NO.1:REFER ILLUST.
DK.BLUE MC.,8S6,NO.1:REFER ILLUST.; PRE-COLLISION PACKAGE,DK.BLUE MC.,8S6,NO.1:REFER ILLUST.
NO.2:REFER ILLUST.; PRE-COLLISION PACKAGE,NO.2:REFER ILLUST.
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
LEATHER PACKAGE,WHITE PEARL CS.,062; NAVIGATION PACKAGE,WHITE PEARL CS.,062; WHITE PEARL CS.,062
LEATHER PACKAGE,SILVER ME.,1G7; NAVIGATION PACKAGE,SILVER ME.,1G7; SILVER ME.,1G7
ICE TITANIUM M.M.,1H4; LEATHER PACKAGE,ICE TITANIUM M.M.,1H4; NAVIGATION PACKAGE,ICE TITANIUM M.M.,1H4
BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6; LEATHER PACKAGE,BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6; NAVIGATION PACKAGE,BLACK,062 ,1G7 ,1H4 ,202 ,3R0 ,8S6
BLACK,202; LEATHER PACKAGE,BLACK,202; NAVIGATION PACKAGE,BLACK,202
BLACKISH RED MC.,3R0; LEATHER PACKAGE,BLACKISH RED MC.,3R0; NAVIGATION PACKAGE,BLACKISH RED MC.,3R0
DK.BLUE MC.,8S6; LEATHER PACKAGE,DK.BLUE MC.,8S6; NAVIGATION PACKAGE,DK.BLUE MC.,8S6
PRE-COLLISION PACKAGE,WHITE PEARL CS.,062,NO.1:REFER ILLUST.; WHITE PEARL CS.,062,NO.1:REFER ILLUST.
PRE-COLLISION PACKAGE,SILVER ME.,1G7,NO.1:REFER ILLUST.; SILVER ME.,1G7,NO.1:REFER ILLUST.
ICE TITANIUM M.M.,1H4,NO.1:REFER ILLUST.; PRE-COLLISION PACKAGE,ICE TITANIUM M.M.,1H4,NO.1:REFER ILLUST.
BLACK,202,NO.1:REFER ILLUST.; PRE-COLLISION PACKAGE,BLACK,202,NO.1:REFER ILLUST.
BLACKISH RED MC.,3R0,NO.1:REFER ILLUST.; PRE-COLLISION PACKAGE,BLACKISH RED MC.,3R0,NO.1:REFER ILLUST.
DK.BLUE MC.,8S6,NO.1:REFER ILLUST.; PRE-COLLISION PACKAGE,DK.BLUE MC.,8S6,NO.1:REFER ILLUST.
NO.2:REFER ILLUST.; PRE-COLLISION PACKAGE,NO.2:REFER ILLUST.
9010506041
main90105-06041
9010906382
main90109-06382
90109C0038
main90109-C0038
9015960498
main90159-60498
9015960500
main90159-60500
90159C0027
main90159-C0027
90159C0034
main90159-C0034
9018906006
main90189-06006
9018906148
main90189-06148
90189C0013
main90189-C0013
91631B0820
main91631-B0820
31 parts on this diagram · 1 diagram in section
