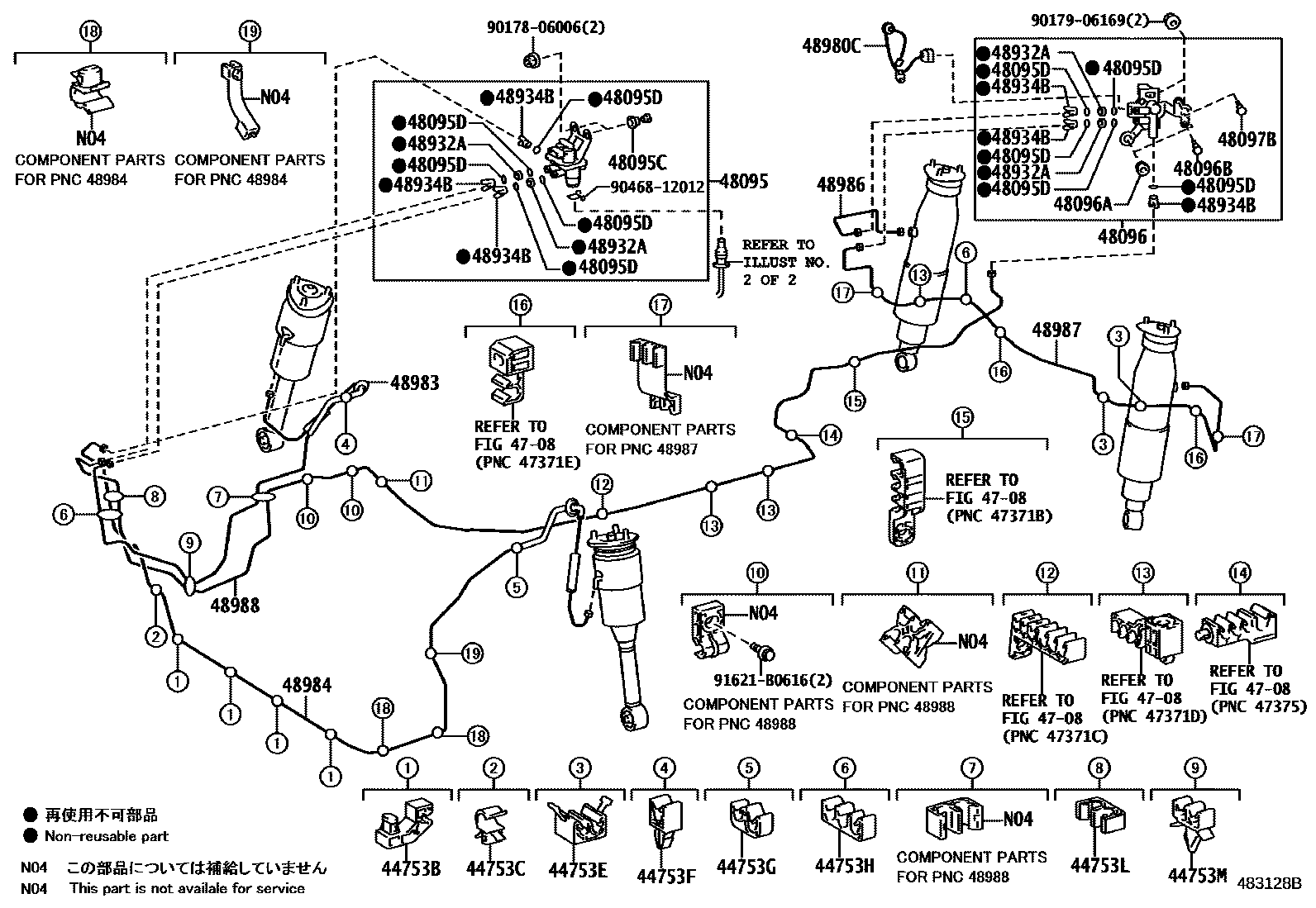

HEIGHT CONTROL (AUTO-LEVELER)

0001 1 0002 1

44753BCLAMP, HEIGHT CONTROL TUBE, NO.1

main44753-30150×4iUZS200200912

44753CCLAMP, HEIGHT CONTROL TUBE, NO.2

main44753-30190iUZS200200912

44753ECLAMP, HEIGHT CONTROL TUBE, NO.3

main44753-30230×2iUZS200200912

44753FCLAMP, HEIGHT CONTROL TUBE, NO.4

main44753-30240iUZS200200912

44753GCLAMP, HEIGHT CONTROL TUBE NO.5

main44753-30270iUZS200200912

44753HCLAMP, HEIGHT CONTROL TUBE NO.6

main44753-30280×2iUZS200200912

44753LCLAMP, HEIGHT CONTROL TUBE NO.9

main90464-00904iUZS200200912

44753MCLAMP, HEIGHT CONTROL TUBE NO.10

main90949-01C00iUZS200200912

4708

48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1

main48095-30080iUZS200200912

48095CBUSH(FOR HEIGHT CONTROL VALVE NO.1)

main90385-09010×2iUZS200200912

48095DRING, O(FOR HEIGHT CONTROL VALVE)

main90301-04011×10iUZS200200912

48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2

main48096-30080iUZS200200912

48096ABUSH, NO.2(FOR HEIGHT CONTROL VALVE)

main48912-30020×2iUZS200200912

48096BCUSHION, NO.2(FOR HEIGHT CONTROL VALVE)

main90541-05023iUZS200200912

48097BCUSHION(FOR HEIGHT CONTROL VALVE SUB-ASSY NO.3)

main90541-07039iUZS200200912

48932APLATE, HEIGHT CONTROL TUBE

main48932-30010×4iUZS200200912

48934BCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×6iUZS200200912

48980CHARNESS ASSY, HEIGHT CONTROL VALVE

main48980-30060iUZS200200912

48983TUBE, HEIGHT CONTROL, NO.3

main48983-30160iUZS200200912

48984TUBE, HEIGHT CONTROL, NO.4

main48984-30140iUZS200200912

48986TUBE, HEIGHT CONTROL, NO.6

main48986-30040iUZS200200912

48987TUBE, HEIGHT CONTROL, NO.7

main48987-30050iUZS200200912

48988TUBE, HEIGHT CONTROL, NO.8

main48988-0N010iUZS200200912-201207

9017806006

main90178-06006

9017906169

main90179-06169

9046812012

main90468-12012

91621B0616

main91621-B0616

28 parts on this diagram · 2 diagrams in section
