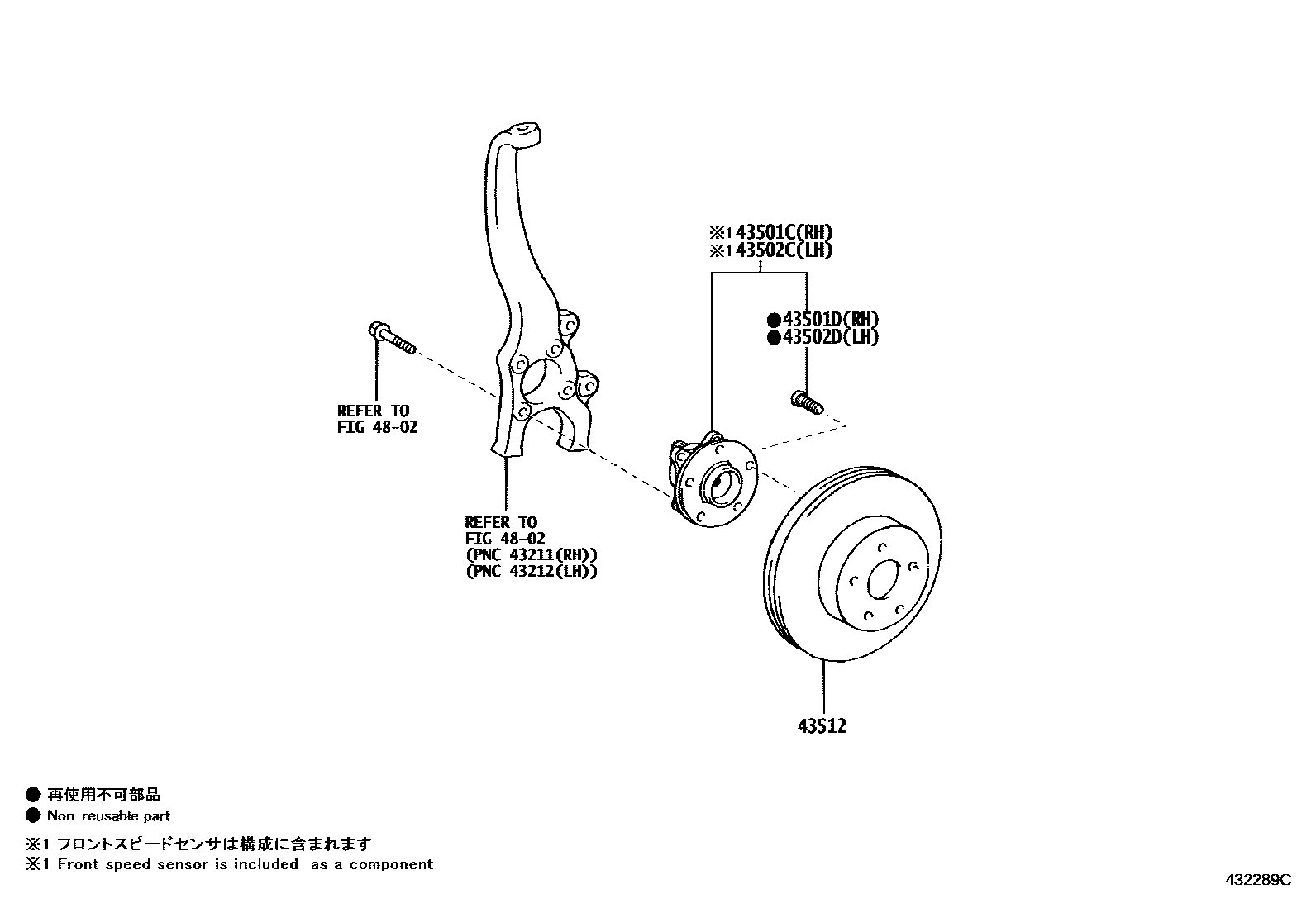

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0N010iGRS20#,UZS200200912-201207

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5iGRS20#,UZS200200912-201207

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-0N010iGRS20#,UZS200200912-201207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5iGRS20#,UZS200200912-201207

43512DISC, FRONT

main43512-0N030iUZS200200912-201207

RH

main43512-0P010×2iGRS20#200912-201207

main43516-0N020iUZS200200912-201207

LH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

6 parts on this diagram · 1 diagram in section
